Allen-Bradley 1756SC-IF8H Network Interface ControlLogix: Industrial Data Link and Smart Factory Connectivity

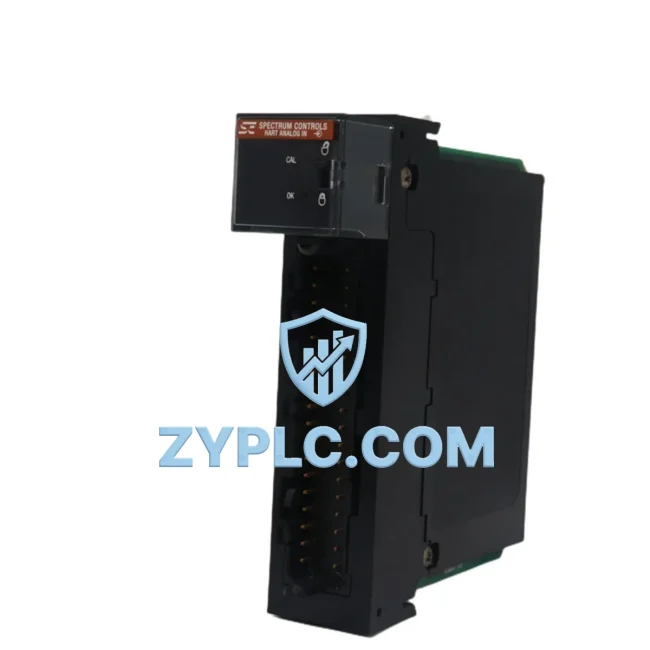

The Allen-Bradley 1756SC-IF8H is an 8-channel analog input module engineered for the ControlLogix platform, purpose-built to serve as a critical data acquisition and signal interface node within modern industrial communication architectures. In smart factory environments where real-time data flow between field devices, PLCs, remote I/O, HMI panels, SCADA systems, drives, and sensors is non-negotiable, the 1756SC-IF8H delivers the signal fidelity and protocol-ready connectivity that production engineers depend on. Whether deployed in continuous process control, discrete manufacturing, or hybrid automation lines, this module bridges the physical world of analog signals with the digital intelligence of the ControlLogix backplane — enabling seamless data transmission from the sensor level all the way to enterprise-level monitoring systems.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the 1756SC-IF8H sits at the heart of the analog data acquisition layer. Field-level sensors — including pressure transmitters, flow meters, and temperature probes — feed their 4–20 mA or 0–10 V signals directly into the module’s eight universal input channels. These signals are digitized and passed across the ControlLogix 1756 backplane to the resident controller, such as the 1756-L73 or 1756-L85E ControlLogix CPU, which executes the control logic and routes processed data upstream.

For network transmission, the ControlLogix system relies on communication modules such as the 1756-EN2T EtherNet/IP bridge module, which connects the backplane data to the plant Ethernet network. From there, SCADA platforms — including Rockwell’s FactoryTalk View SE or third-party systems via OPC-UA — can subscribe to real-time tag data from the 1756SC-IF8H channels. HMI terminals such as the PanelView Plus 7 display live analog readings, trend graphs, and alarm states derived directly from this module’s inputs.

In drive-intensive applications, the 1756SC-IF8H captures analog feedback signals from PowerFlex 755 variable frequency drives — including motor current, output frequency, and DC bus voltage — enabling the ControlLogix controller to implement closed-loop speed regulation and energy optimization routines. Similarly, remote I/O racks connected via 1756-DHRIO or 1756-CN2 ControlNet modules can relay analog data from distributed field panels back to the central ControlLogix chassis where the 1756SC-IF8H resides.

For edge connectivity and remote diagnostics, the data path extends further: the 1756-EWEB Ethernet/IP web server module or a dedicated industrial edge gateway can publish 1756SC-IF8H channel data to cloud-based MES or ERP platforms, enabling predictive maintenance algorithms to analyze analog signal drift, sensor degradation, and process deviation trends before they escalate into unplanned downtime. The 1756-IB16 digital input module and 1756-OB16E digital output module often work alongside the 1756SC-IF8H in the same chassis, forming a complete mixed I/O solution for complex process control loops.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where field devices speak different protocols, analog signals remain trapped at the I/O level, and production managers lack real-time visibility into machine performance. The 1756SC-IF8H directly addresses this by providing a standardized, high-resolution analog input interface within the ControlLogix ecosystem, which natively supports EtherNet/IP — the most widely adopted industrial Ethernet protocol in North American manufacturing.

By integrating the 1756SC-IF8H into a ControlLogix chassis alongside communication gateway modules, plant engineers can unify data from previously isolated analog field devices — legacy 4–20 mA transmitters, RTD sensors, and thermocouple arrays — into a single, network-accessible data model. This eliminates the need for standalone signal conditioners or proprietary data loggers, reducing wiring complexity and potential signal loss points.

For production line transparency, the module’s real-time data feeds into FactoryTalk Historian or equivalent time-series databases, enabling shift supervisors and process engineers to track analog KPIs — energy consumption per production cycle, motor load trends, temperature excursions — with millisecond-level resolution. Remote diagnostics become practical: maintenance teams can monitor channel health, detect open-circuit faults, and validate sensor calibration from a central SCADA workstation without dispatching technicians to the field panel.

System expansion is equally straightforward. The ControlLogix platform supports up to 17 modules per chassis, and multiple chassis can be linked via ControlNet or EtherNet/IP, allowing the 1756SC-IF8H to scale from a single-machine installation to a plant-wide analog data acquisition network without architectural redesign. Every unit shipped by ZYPLC undergoes full functional testing — channel accuracy verification, input range calibration, and backplane communication validation — ensuring plug-and-play readiness upon arrival.

Industrial Connectivity FAQ

Q1: Does the 1756SC-IF8H support EtherNet/IP communication directly?
The 1756SC-IF8H communicates via the ControlLogix 1756 backplane. EtherNet/IP network access is provided through a co-resident communication module such as the 1756-EN2T or 1756-EN3TR in the same chassis. This architecture allows SCADA, HMI, and MES systems to access all analog channel data over standard industrial Ethernet without additional protocol converters.

Q2: Is the 1756SC-IF8H compatible with third-party SCADA and HMI systems?
Yes. Because the module integrates with the ControlLogix controller via the standard backplane, any SCADA or HMI platform that supports EtherNet/IP or OPC-DA/OPC-UA — including Wonderware, Ignition, and Siemens WinCC — can access its channel data through the ControlLogix communication layer. Protocol compatibility is determined at the controller and communication module level, not the I/O module itself.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 1756SC-IF8H unit supplied by ZYPLC undergoes pre-shipment functional testing, including analog input channel accuracy verification across all supported input ranges (voltage, current, RTD, thermocouple), backplane communication integrity checks, and visual inspection for physical damage. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement or repair is available for warranty claims.

Q4: Can the 1756SC-IF8H be used to expand an existing ControlLogix system without reconfiguring the network?
Yes. Adding the 1756SC-IF8H to an existing ControlLogix chassis requires only slot insertion and tag configuration in Studio 5000 Logix Designer. No network reconfiguration is needed. If the chassis is already connected to an EtherNet/IP network via a 1756-EN2T module, the new analog input tags are immediately accessible to all connected SCADA, HMI, and historian systems. This makes the 1756SC-IF8H an ideal choice for incremental system expansion in brownfield industrial sites.
