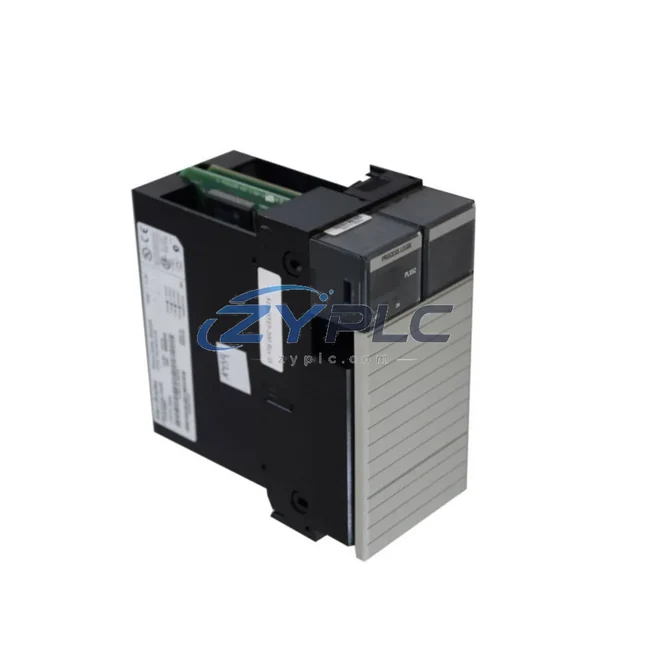

Allen-Bradley 1757-PLX52 Industrial Network Interface for ProcessLogix Systems

Allen-Bradley 1757-PLX52 Industrial Network Interface for ProcessLogix Systems: Bridging the Industrial Data Chain in Smart Factory Environments

In modern industrial automation, seamless data flow between field devices, controllers, and supervisory systems is the backbone of operational efficiency. The Allen-Bradley 1757-PLX52 ProcessLogix Communication Gateway, Series A, is engineered to serve as a critical bridge in this data chain — connecting legacy and contemporary control architectures across multiple industrial communication protocols. Whether your facility relies on Data Highway Plus (DH+), ControlNet, or EtherNet/IP, the 1757-PLX52 ensures that process data moves reliably from the plant floor to the control room and beyond.

The 1757-PLX52 is purpose-built for the ProcessLogix control platform, a distributed control system (DCS) architecture developed by Allen-Bradley (Rockwell Automation) for continuous process industries including oil and gas, chemical processing, water treatment, and power generation. As a communication gateway, it enables the ProcessLogix system to interface with a broad range of field devices, remote I/O modules, HMI terminals, SCADA servers, and enterprise-level data systems — all within a unified, deterministic network environment.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 1757-PLX52’s role requires tracing the full data path from signal acquisition to supervisory control. At the field level, sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into Allen-Bradley 1794 FLEX I/O remote I/O modules distributed across the process skids. These I/O modules communicate upstream via ControlNet, a deterministic, media-redundant network that the 1757-PLX52 natively supports, ensuring that time-critical process values arrive at the controller without latency or packet loss.

Within the ProcessLogix controller chassis, the 1757-PLX52 gateway acts as the protocol translator and network bridge. It receives ControlNet data from the field I/O tier and simultaneously maintains a DH+ connection to legacy Allen-Bradley PLC-5 controllers that may still govern portions of the plant — a common scenario in brownfield process facilities where full system replacement is not economically viable. This multi-protocol capability allows the 1757-PLX52 to unify data streams from both modern and legacy controllers into a single coherent network fabric.

On the supervisory side, the gateway’s EtherNet/IP interface connects to Rockwell Automation FactoryTalk View SE SCADA/HMI servers, enabling operators to monitor real-time process variables, acknowledge alarms, and execute control commands from centralized workstations. The EtherNet/IP connection also supports integration with FactoryTalk Historian for long-term process data logging and trend analysis — essential for regulatory compliance and process optimization in industries such as pharmaceuticals and food processing.

For drive-level integration, the 1757-PLX52 facilitates communication with Allen-Bradley PowerFlex 700 variable frequency drives (VFDs) connected via ControlNet or EtherNet/IP adapters. This allows the ProcessLogix system to issue speed references, read drive status, and respond to fault conditions in real time — closing the loop between the process controller and the motor control layer. Similarly, Allen-Bradley 1756-ENBT EtherNet/IP bridge modules within ControlLogix chassis can be networked alongside the ProcessLogix system, enabling cross-platform data sharing in hybrid automation environments.

Remote diagnostics are supported through the EtherNet/IP backbone, allowing maintenance engineers to access the 1757-PLX52 gateway and connected devices from remote locations using Rockwell Automation RSLinx Classic or RSLinx Enterprise communication software. This capability is particularly valuable for geographically distributed process plants where on-site troubleshooting is costly and time-consuming. Edge gateway devices, such as the Moxa MGate series, can further extend the network reach by converting EtherNet/IP data to MQTT or OPC-UA for cloud-based analytics platforms.

The complete data chain — from 1794 FLEX I/O field modules through the 1757-PLX52 gateway to FactoryTalk SCADA and historian systems — represents a fully integrated industrial IoT architecture. Every node in this chain is tested for protocol compatibility and network stability before shipment, ensuring that the 1757-PLX52 integrates seamlessly into your existing automation infrastructure from day one.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process automation is data isolation — the condition where critical process information is trapped within a single controller, network segment, or proprietary protocol, invisible to the broader plant management system. The Allen-Bradley 1757-PLX52 directly addresses this challenge through its multi-protocol gateway architecture.

In facilities where DH+ networks were installed decades ago to connect PLC-5 controllers and legacy HMI panels, upgrading to modern EtherNet/IP infrastructure without disrupting ongoing production is a significant engineering challenge. The 1757-PLX52 resolves this by acting as a transparent bridge between DH+ and EtherNet/IP, allowing legacy devices to remain operational while new SCADA systems and HMI terminals gain full visibility into their data. This phased migration approach reduces capital expenditure and operational risk.

ControlNet’s deterministic communication model, supported natively by the 1757-PLX52, eliminates the unpredictable latency associated with standard Ethernet in time-critical control loops. For process applications where a delayed I/O update can trigger a safety interlock or cause product quality deviation, this determinism is non-negotiable. The gateway’s ability to schedule ControlNet traffic ensures that high-priority process data always takes precedence over background diagnostic communications.

Remote monitoring and alarm management are further enhanced by the 1757-PLX52’s EtherNet/IP connectivity. SCADA systems connected via EtherNet/IP can poll the gateway for real-time alarm states, enabling operators to respond to process deviations before they escalate into equipment damage or production loss. This transparency extends to production line KPIs — OEE, throughput, and quality metrics — which can be extracted from the ProcessLogix system and displayed on plant-wide dashboards without requiring additional middleware.

System expansion is straightforward with the 1757-PLX52. As production capacity grows, additional ControlNet nodes — whether remote I/O racks, drive adapters, or communication modules — can be added to the network without reconfiguring the gateway’s core parameters. The modular architecture of the ProcessLogix platform, combined with the 1757-PLX52’s flexible protocol support, ensures that your automation infrastructure can scale alongside your business.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1757-PLX52 support, and is it compatible with modern EtherNet/IP networks?
The 1757-PLX52 supports DH+ (Data Highway Plus), ControlNet, and EtherNet/IP — three of the most widely deployed protocols in Rockwell Automation environments. Its EtherNet/IP port is fully compatible with modern switched Ethernet infrastructure, including managed industrial switches, and can coexist with ControlLogix, CompactLogix, and other EtherNet/IP-enabled devices on the same network segment.

Q2: How does the 1757-PLX52 handle network stability in high-noise industrial environments?
The gateway is designed to operate in industrial-grade environments with high electromagnetic interference (EMI). ControlNet’s media redundancy option (using dual coaxial or fiber cables) can be leveraged to provide fault-tolerant communication, ensuring that a single cable fault does not interrupt process data flow. The unit’s deterministic scheduling further prevents network congestion from impacting control-critical communications.

Q3: Can the 1757-PLX52 be integrated into an existing SCADA or HMI system without replacing the entire control architecture?
Yes. The 1757-PLX52 is specifically designed for brownfield integration. Its multi-protocol support allows it to connect legacy DH+ and ControlNet devices to modern EtherNet/IP-based SCADA and HMI systems — including FactoryTalk View SE, Wonderware, and Ignition — without requiring replacement of existing PLCs or field wiring. This makes it an ideal solution for phased modernization projects.

Q4: What quality assurance and warranty coverage is provided with the 1757-PLX52?
Every 1757-PLX52 unit supplied by ZYPLC undergoes comprehensive functional testing prior to shipment, including protocol communication verification, port integrity checks, and firmware validation. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Our technical support team is available to assist with installation, configuration, and troubleshooting throughout the warranty period.
