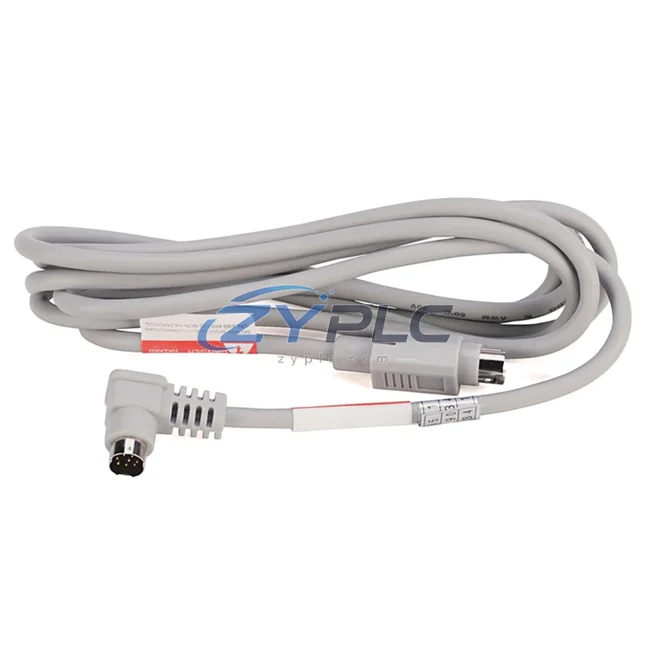

Allen-Bradley 1761-CBL-HM02 MicroLogix Cable

Allen-Bradley 1761-CBL-HM02 MicroLogix Programming Cable for Optimized Automation

The Allen-Bradley 1761-CBL-HM02 is a high-performance HHP (Hand-Held Programmer) communication cable engineered for seamless, low-latency connectivity between programming terminals and MicroLogix 1000 and MicroLogix 1100 series PLCs. In modern industrial environments where every watt and every second of downtime carries a cost, the quality of your programming interface cable directly impacts how efficiently your control system can be commissioned, diagnosed, and maintained. The 1761-CBL-HM02 eliminates communication bottlenecks that lead to extended engineering hours, repeated fault-clearing cycles, and unnecessary energy expenditure during troubleshooting sessions.

When integrated into a MicroLogix-based control architecture, this cable supports rapid firmware uploads, real-time ladder logic monitoring, and live parameter adjustment — all of which reduce the time technicians spend with machines in a non-productive state. Fewer idle cycles mean lower standby power consumption across connected motor drives, I/O modules, and field devices. In high-throughput production environments, even marginal reductions in commissioning time translate directly into measurable operational stability and improved overall equipment effectiveness (OEE).

Product Specification Table

System Compatibility and Application

The 1761-CBL-HM02 is most effective when deployed as part of a cohesive, industrial control architecture. In a typical MicroLogix-based system, the PLC itself — such as the MicroLogix 1100 (1763-L16BWA) or the compact MicroLogix 1000 (1761-L16BWA) — serves as the central logic controller governing machine sequences, interlocks, and output timing. The programming cable provides the direct communication path for RSLogix 500 or RSLogix Micro software running on a laptop or HMI engineering station.

For drive-level energy control, the MicroLogix platform commonly interfaces with PowerFlex 4M or PowerFlex 40 variable frequency drives via RS-485 or DeviceNet, enabling precise motor speed regulation that eliminates the unplanned downtime of fixed-speed operation. When a technician needs to adjust drive parameters or PLC output timing to optimize a conveyor or pump cycle, the 1761-CBL-HM02 ensures that the programming session is completed quickly and without communication errors — avoiding the repeated connection attempts that waste both time and energy.

On the I/O side, 1762-IQ8 digital input modules and 1762-OW8 relay output modules expand the MicroLogix 1100’s native I/O capacity to handle more sensors and actuators without requiring a larger, more power-hungry controller platform. Accurate I/O mapping, configured efficiently through a stable cable connection, ensures that field devices such as proximity sensors, solenoid valves, and motor contactors operate only when required — a fundamental principle of energy-efficient machine design.

For applications requiring analog process control — such as pressure regulation, temperature management, or flow rate optimization — the 1762-IF4 analog input module provides four channels of 4–20 mA or 0–10 V signal acquisition. Properly tuned PID loops, programmed and monitored via the 1761-CBL-HM02 connection, allow the MicroLogix system to maintain process setpoints with minimal overshoot, reducing the energy consumed by heating elements, compressors, or variable-speed pumps hunting around an unstable setpoint.

Communication expansion via the 1761-NET-AIC Advanced Interface Converter allows the MicroLogix 1000 to participate in multi-drop RS-485 networks, enabling centralized SCADA monitoring of energy consumption data from multiple machines simultaneously. When combined with a PanelView Component C400 or PanelView 800 HMI, operators gain real-time visibility into cycle counts, fault histories, and runtime hours — data that supports predictive maintenance scheduling and prevents the energy spikes associated with unplanned breakdowns.

Maintenance and Replacement Notes

In real-world production environments, the hidden cost of poor programming connectivity is often underestimated. When a cable introduces intermittent communication faults, technicians must repeatedly reconnect, re-upload programs, and re-verify logic — each failed attempt leaving the machine in a non-productive, energy-consuming idle state. Motors continue to draw standby current, cooling systems remain active, and compressed air circuits maintain pressure, all while the machine waits for a successful programming session.

The 1761-CBL-HM02 eliminates this source of waste by providing a reliable, noise-resistant connection that supports uninterrupted DF1 communication even in electrically noisy panel environments. This reliability is particularly valuable during initial machine commissioning, where dozens of program iterations may be required to optimize cycle timing, output sequencing, and fault response logic. A stable cable connection compresses this commissioning window significantly, reducing the total energy consumed during the non-productive startup phase.

Beyond commissioning, the cable plays a critical role in ongoing predictive maintenance workflows. Technicians performing scheduled diagnostic checks — reviewing accumulated fault logs, verifying counter values, or adjusting timer presets to match seasonal production demands — can complete these tasks faster with a dependable communication link. Faster maintenance windows mean shorter periods of reduced-throughput operation, which directly improves the energy efficiency ratio of the production line as a whole.

For facilities operating multiple MicroLogix-controlled machines, maintaining a reliable stock of 1761-CBL-HM02 cables as part of the maintenance spare parts inventory is a low-cost, high-impact strategy. A single missing cable during a critical fault event can extend machine downtime by hours, with corresponding unplanned downtime from idle downstream equipment waiting for the bottleneck machine to resume production. All units supplied by ZYPLC are pre-tested prior to shipment and covered by a warranty terms confirmed during quotation, ensuring that your spare inventory is ready to perform when needed.

Product Sourcing FAQ

Q1: How does the 1761-CBL-HM02 contribute to operational stability in a MicroLogix system?
By enabling fast, error-free programming sessions, the cable reduces the time machines spend in non-productive idle states during commissioning and maintenance. Shorter downtime windows mean less standby energy consumption from motors, drives, and auxiliary systems connected to the PLC.

Q2: Is the 1761-CBL-HM02 compatible with both MicroLogix 1000 and MicroLogix 1100 controllers?
Yes. The cable is designed for the HHP communication port found on MicroLogix 1000 (1761 series) and MicroLogix 1100 (1763 series) controllers. It is compatible with RSLogix 500 and RSLogix Micro programming software environments.

Q3: Can this cable be used as a direct replacement for other Allen-Bradley MicroLogix programming cables?
The 1761-CBL-HM02 is specifically designed for HHP port connectivity. For RS-232 DTE or USB-to-serial applications, alternative cables such as the 1761-CBL-PM02 or 1747-CP3 may be more appropriate depending on the controller model and programming interface available.

Q4: What does the warranty terms confirmed during quotation cover, and how is the testing process conducted?
All 1761-CBL-HM02 units supplied by ZYPLC undergo functional communication testing prior to shipment to verify signal integrity and connector reliability. The warranty terms confirmed during quotation covers manufacturing defects and communication failures under normal industrial operating conditions. Replacement or refund is arranged promptly upon confirmed fault diagnosis.
