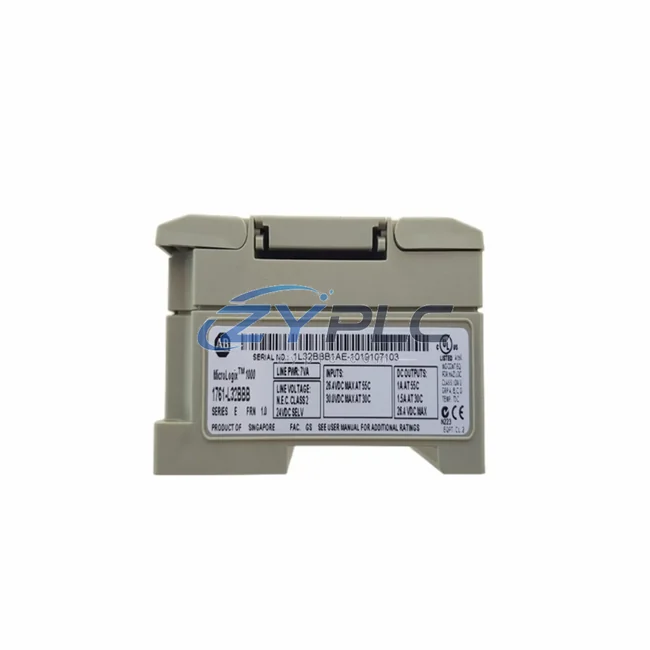

Allen-Bradley 1761-L32BBB Industrial Network Interface for MicroLogix Systems

Allen-Bradley 1761-L32BBB: Industrial Data Link for MicroLogix Smart Factory Systems

The Allen-Bradley 1761-L32BBB is a compact yet powerful MicroLogix 1000 series programmable logic controller engineered for seamless industrial network communication across multi-protocol factory environments. With native RS-232 and DH-485 communication ports, the 1761-L32BBB serves as a critical data bridge between field-level devices and upper-layer control systems — enabling real-time signal acquisition, protocol conversion, and transparent data flow from sensor to SCADA.

In modern smart factory deployments, the 1761-L32BBB functions as the central node in a layered automation architecture. It collects discrete and analog signals from proximity sensors, photoelectric sensors, and pressure transmitters wired to its 20 digital inputs and 12 digital outputs, then transmits structured process data upstream via its DH-485 network to supervisory systems. This bidirectional data path supports not only real-time monitoring but also closed-loop control, alarm feedback, and remote diagnostics — all essential capabilities for Industry 4.0 connectivity.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1761-L32BBB sits at the intersection of field instrumentation and plant-level control networks. In a typical deployment, field sensors — including inductive proximity switches, thermocouple input modules, and analog pressure transmitters — feed real-time process values into the controller’s input terminals. The 1761-L32BBB processes this data locally using ladder logic and simultaneously forwards structured data packets upstream via its DH-485 port to a 1747-AIC Advanced Interface Converter, which bridges the signal onto a broader DH-485 network shared with SLC 500 series controllers and MicroLogix 1100 or MicroLogix 1400 units operating in the same production zone.

At the HMI layer, a PanelView 550 or PanelView Plus 600 terminal connects to the DH-485 network to display live process variables, operator setpoints, and alarm states sourced directly from the 1761-L32BBB’s data table. For facilities running FactoryTalk View SE or Ignition SCADA, an RSLinx Classic gateway or 1761-NET-AIC network adapter translates DH-485 traffic into an Ethernet/IP-compatible data stream, enabling plant-wide visibility from a centralized SCADA server. This architecture eliminates data silos between isolated machine cells and the enterprise MES layer, providing full production transparency without requiring a complete network infrastructure overhaul.

Where variable-speed drives such as the PowerFlex 4M or PowerFlex 40 are integrated into the same control loop, the 1761-L32BBB manages start/stop commands and speed reference signals through its digital output channels, while drive fault codes are fed back as discrete input signals for alarm logging and remote diagnostics. This closed-loop data path — from sensor signal acquisition through PLC processing to drive actuation and SCADA visualization — represents the core connectivity value of the 1761-L32BBB in smart factory environments.

Solving Data Isolation in Industrial Sites

Legacy manufacturing sites frequently suffer from protocol fragmentation: older RS-232 devices cannot communicate natively with modern Ethernet-based SCADA platforms, and isolated machine PLCs operate without visibility into plant-wide production KPIs. The Allen-Bradley 1761-L32BBB directly addresses these challenges by acting as a protocol-aware gateway node within the DH-485 network topology.

Its dual-port architecture — RS-232 on Channel 0 and DH-485 on Channel 1 — allows the 1761-L32BBB to simultaneously maintain a point-to-point RS-232 link with a barcode reader, weigh scale, or legacy HMI terminal while participating in a multi-drop DH-485 network with up to 32 nodes. This eliminates the need for separate protocol converters or additional communication modules in space-constrained panel installations.

For remote monitoring applications, the 1761-L32BBB’s RS-232 port can be connected to a 1761-NET-DNI DeviceNet Interface or a third-party cellular gateway, enabling remote diagnostics and parameter adjustment without on-site engineer visits. Alarm conditions detected by the controller — such as motor overtemperature, conveyor jam, or tank overflow — are transmitted in real time to the SCADA alarm server, triggering automated notifications and reducing mean time to repair (MTTR). Production line transparency is further enhanced through integration with MES platforms that pull shift production counts, downtime events, and quality rejection data directly from the 1761-L32BBB’s integer and bit data files.

System expansion is straightforward: additional MicroLogix 1000 or MicroLogix 1100 controllers can be added to the DH-485 network without disrupting existing nodes, and the network can be extended using 1747-AIC converters to reach remote equipment in large plant footprints. All units supplied by ZYPLC are pre-tested prior to shipment, verified for communication integrity across both RS-232 and DH-485 ports, and covered by a warranty terms confirmed during quotation with availability confirmed by RFQ availability for rapid global deployment.

Industrial Connectivity FAQ

Q1: What is the maximum communication distance for the DH-485 network using the 1761-L32BBB?
The DH-485 network supports a maximum cable length of 1,219 meters (4,000 feet) at 1,200 baud, or up to 304 meters (1,000 feet) at 19,200 baud. For longer distances, 1747-AIC repeaters can be used to extend the network while maintaining signal integrity across all connected nodes.

Q2: Is the 1761-L32BBB compatible with modern Ethernet/IP SCADA systems?
The 1761-L32BBB does not natively support Ethernet/IP, but it integrates seamlessly with Ethernet-based SCADA platforms through a 1761-NET-ENI Ethernet Interface or RSLinx Classic acting as a DH-485-to-Ethernet gateway. This allows FactoryTalk View SE, Ignition, and WonderWare InTouch to read and write data to the controller in real time without hardware replacement.

Q3: How is the 1761-L32BBB tested before shipment?
Every 1761-L32BBB unit supplied by ZYPLC undergoes a full pre-shipment functional test covering power-on self-test, RS-232 and DH-485 communication verification, I/O channel continuity, and firmware version confirmation. Test records are available upon request, and all units are backed by a warranty terms confirmed during quotation from the date of shipment.

Q4: Can the 1761-L32BBB be expanded with additional I/O modules?
The MicroLogix 1000 platform does not support local I/O expansion modules. For applications requiring additional I/O capacity, ZYPLC recommends upgrading to the MicroLogix 1100 (1763-L16BBB) or MicroLogix 1400 (1766-L32BXB), both of which support expansion I/O and retain DH-485 network compatibility for seamless integration into existing network architectures.
