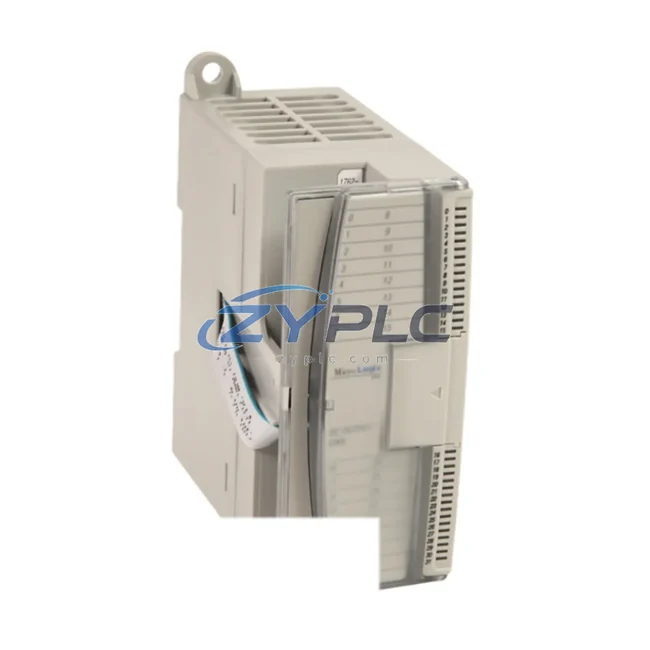

Allen-Bradley 1762-IR4 RTD Input for MicroLogix

Allen-Bradley 1762-IR4 RTD Input for MicroLogix

The Allen-Bradley 1762-IR4 is a four-channel RTD (Resistance Temperature Detector) analog input module engineered for seamless integration within the MicroLogix 1200 and MicroLogix 1400 control system architecture. As a core component of the MicroLogix expansion I/O platform, the 1762-IR4 occupies a critical position in the signal acquisition layer, enabling precise temperature measurement across demanding industrial environments including manufacturing, process control, water treatment, power distribution, and petrochemical applications. Its design philosophy centers on system coherence — delivering accurate, stable RTD readings that feed directly into the CPU’s control logic without introducing latency or signal degradation that could compromise process integrity.

In a fully layered automation architecture, the 1762-IR4 functions as the thermal sensing backbone of the I/O layer. It connects directly to the MicroLogix 1200 or 1400 CPU — such as the 1762-L40BWA or 1763-L16BWA — via the MicroLogix expansion bus, requiring no additional communication hardware. This tight integration ensures that RTD data is available to the CPU’s ladder logic program within a single scan cycle, supporting closed-loop temperature control strategies with minimal engineering overhead. The module supports Pt100, Pt1000, Ni120, and 10Ω copper RTD sensor types, providing the flexibility needed to match existing field instrumentation without requiring sensor replacement during system upgrades or retrofits.

Product Specification Table

System Compatibility Notes

The 1762-IR4 achieves its full potential when deployed as part of a coordinated MicroLogix control system rather than as a standalone module. In a typical process control cabinet, the module sits adjacent to the 1762-IF4 (4-channel analog voltage/current input) and the 1762-OF4 (4-channel analog output), forming a complete analog I/O subsystem that handles both temperature sensing and process variable control within a single rack footprint. The 1762-IF2OF2 combination module may also be used in space-constrained panels where mixed analog I/O is required without dedicating separate slots to input and output functions.

On the digital I/O side, the 1762-IQ16 (16-channel DC input) and 1762-OB16 (16-channel DC output) modules complement the 1762-IR4 by handling discrete signals — limit switches, proximity sensors, solenoid valves, and motor contactors — that operate in parallel with the temperature control loop. The 1762-OW8 relay output module is commonly paired with the 1762-IR4 in heating and cooling applications where the RTD temperature reading triggers relay-controlled heating elements or cooling fans based on setpoint logic programmed in the CPU.

For human-machine interface requirements, the 2711C-T6T PanelView Component terminal provides a compact operator interface that displays real-time RTD channel values, alarm states, and process trends. This HMI communicates with the MicroLogix CPU via DF1 or DH-485 protocol, allowing operators to monitor temperature profiles and adjust setpoints without requiring a connected programming terminal. The 1762-RPC remote I/O expansion cable enables physical separation between the CPU and expansion modules when panel layout constraints prevent direct adjacency, maintaining full electrical integrity of the expansion bus across the extended distance.

Power architecture for a MicroLogix system incorporating the 1762-IR4 typically relies on a 24 VDC regulated power supply feeding the CPU and I/O bus, with the module drawing its 5 VDC logic power directly from the expansion bus backplane. Proper power supply sizing must account for the cumulative current draw of all expansion modules, including the 1762-IR4’s 85 mA bus load, to ensure stable operation across the full operating temperature range without voltage droop that could introduce measurement errors in the RTD channels.

Industrial Application Notes

In manufacturing and packaging lines, the 1762-IR4 is deployed to monitor heat-sealing jaw temperatures, extruder barrel zones, and curing oven profiles. The module’s four independent RTD channels allow a single MicroLogix 1200 CPU to simultaneously supervise multiple thermal zones, reducing the number of controllers required and simplifying the overall control architecture. Alarm logic programmed in RSLogix 500 triggers output actions — such as activating cooling fans via the 1762-OB16 or opening bypass valves via the 1762-OW8 — when any channel exceeds its configured high-temperature limit.

In water treatment and utilities, the 1762-IR4 monitors pump bearing temperatures, motor winding temperatures, and process fluid temperatures in filtration and chemical dosing systems. Its compatibility with Pt100 sensors — the industry standard for water and wastewater applications — ensures direct integration with existing field instrumentation. The module’s 16-bit resolution provides the measurement granularity needed to detect early-stage bearing wear through subtle temperature rise trends, enabling predictive maintenance strategies that reduce unplanned downtime.

In power distribution and electrical substations, the 1762-IR4 is used to monitor transformer winding temperatures and switchgear compartment temperatures, providing early warning of thermal overload conditions. The module’s CE and UL certifications satisfy the compliance requirements of electrical panel builders operating in regulated environments. Its DIN rail mounting and compact form factor allow integration into existing control panels without requiring panel redesign.

In petrochemical and process industries, the 1762-IR4 supports temperature monitoring in heat exchangers, reactor vessels, and pipeline systems where Pt100 or Pt1000 sensors are the standard measurement technology. The module’s wide temperature measurement range — up to 870°C depending on sensor type — covers the full spectrum of process temperatures encountered in refining and chemical manufacturing, from cryogenic storage monitoring to high-temperature reaction control.

Product Compatibility FAQ

Q1: How many 1762-IR4 modules can be connected to a single MicroLogix 1200 or 1400 CPU, and are there any slot restrictions?
The MicroLogix 1200 supports up to 6 expansion I/O modules, while the MicroLogix 1400 supports up to 7. The 1762-IR4 can occupy any available expansion slot without restriction, allowing up to 6 or 7 modules of this type if the application requires extensive RTD monitoring. However, total expansion bus current draw must remain within the CPU’s rated expansion power budget. Each 1762-IR4 draws 85 mA from the 5 VDC bus, so system designers should verify cumulative current consumption across all installed expansion modules before finalizing the hardware configuration.

Q2: Is the 1762-IR4 compatible with both RSLogix 500 and Studio 5000 Logix Designer programming environments?
The 1762-IR4 is natively supported in RSLogix 500, which is the standard programming environment for MicroLogix controllers. Studio 5000 Logix Designer is the programming platform for the ControlLogix and CompactLogix families and does not support MicroLogix hardware directly. For MicroLogix 1200 and 1400 systems, RSLogix 500 (or its successor, Studio 5000 Logix Designer with legacy support) is the correct tool. The module’s channel data is accessible via standard input image file addresses, and configuration is performed through the I/O configuration dialog within RSLogix 500 without requiring any additional software or drivers.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
All 1762-IR4 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to verify channel accuracy, bus communication integrity, and electrical safety compliance. For long-term maintenance planning, ZYPLC supports RFQ sourcing for the 1762-IR4 and related MicroLogix expansion modules — including the 1762-IF4, 1762-OF4, 1762-IQ16, and 1762-OB16 — to support spare parts programs and emergency replacement requirements. system integration support is available to assist engineers with module configuration, system compatibility verification, and migration planning for aging MicroLogix installations.
