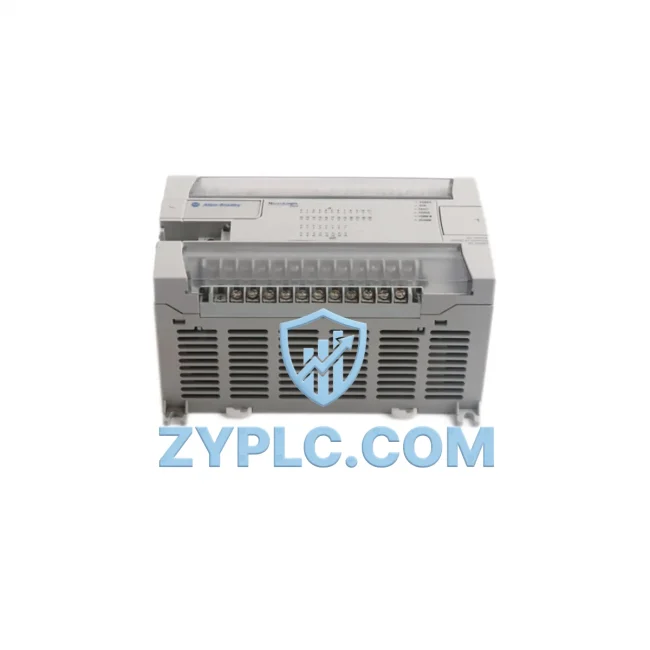

Allen-Bradley 1762-L24AWA PLC Controller for MicroLogix 1200 Systems

Allen-Bradley 1762-L24AWA: Industrial Data Link for MicroLogix 1200 Systems

The Allen-Bradley 1762-L24AWA is a high-performance programmable logic controller belonging to the MicroLogix 1200 Series B platform — engineered to serve as the central industrial network interface between field-level devices and upper-level control and monitoring systems. With 24 onboard I/O points (14 digital inputs, 10 relay outputs), native DH-485 and RS-232 communication ports, and robust ladder logic execution, the 1762-L24AWA delivers the real-time data throughput and protocol flexibility demanded by modern smart factory environments.

In today’s connected industrial landscape, the ability to bridge field devices with SCADA, HMI, and MES platforms is no longer optional — it is the foundation of operational transparency. The 1762-L24AWA fulfills this role by acting as a protocol-aware data node that aggregates signals from sensors, actuators, and remote I/O modules, then transmits structured process data upstream to supervisory systems with minimal latency.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1762-L24AWA sits at the heart of a layered industrial communication architecture. At the field level, discrete sensors — including photoelectric sensors, proximity switches, and temperature transmitters — feed digital signals directly into the controller’s 14 onboard input channels. These signals are processed in real time by the MicroLogix 1200’s ladder logic engine, which executes scan cycles fast enough to support time-sensitive control sequences on packaging lines, conveyor systems, and assembly stations.

For distributed I/O expansion, the 1762-L24AWA interfaces seamlessly with the 1762-IQ16 16-point digital input module and the 1762-OW16 relay output expansion module via the MicroLogix 1200 I/O bus. This allows engineers to scale the I/O footprint without replacing the base controller — a critical advantage in phased factory automation projects.

On the network side, the RS-232 Channel 0 port enables direct point-to-point communication with HMI panels such as the PanelView 300 Micro or third-party operator terminals using DF1 Full-Duplex protocol. For multi-drop network topologies, Channel 1’s DH-485 interface connects the 1762-L24AWA to a network of up to 32 nodes — including other MicroLogix controllers, SLC 500 processors, and 1747-AIC Advanced Interface Converters — enabling peer-to-peer messaging and coordinated multi-controller production sequences.

When SCADA integration is required, the 1762-L24AWA communicates upstream to platforms such as FactoryTalk View SE or Ignition by Inductive Automation via RSLinx Classic OPC server, delivering live process variables, alarm states, and production counters to the supervisory layer. This data pipeline supports real-time dashboards, historian logging, and KPI reporting — transforming raw field signals into actionable manufacturing intelligence.

For sites requiring Modbus RTU interoperability — common when integrating legacy variable frequency drives (VFDs) such as the PowerFlex 4M or third-party inverters — the 1762-L24AWA can be configured to issue MSG instructions over its RS-232 port, acting as a Modbus master to poll drive speed references, fault codes, and energy consumption data. This eliminates the need for standalone protocol gateways in many retrofit applications.

Remote diagnostics are supported through RSLogix 500’s online monitoring mode, allowing maintenance engineers to observe ladder logic execution, force I/O states, and review fault history without physical access to the control panel — reducing mean time to repair (MTTR) and supporting predictive maintenance strategies aligned with Industry 4.0 objectives.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial environments is protocol fragmentation — legacy equipment speaking incompatible communication languages that prevent unified data visibility. The 1762-L24AWA addresses this directly through its multi-protocol RS-232 channel, which supports DF1, ASCII, and Modbus RTU modes selectable via software configuration. A single controller can therefore serve as a protocol bridge between a DH-485 peer network and a Modbus RTU device network, eliminating the data silos that traditionally required dedicated protocol converters.

Production line transparency is achieved by mapping all field-level I/O states and process variables into the controller’s data file structure, which is then continuously polled by SCADA clients. Alarm conditions — such as motor overloads, sensor faults, or out-of-range process values — are detected within the PLC scan cycle and immediately propagated to the HMI and SCADA alarm management system, ensuring operators receive real-time fault notifications regardless of their physical location.

System expansion is handled gracefully through the MicroLogix 1200’s modular I/O architecture. As production capacity grows, additional 1762-series expansion modules — including analog input modules like the 1762-IF4 and thermocouple modules like the 1762-IT4 — can be added to the I/O bus without modifying the base controller program structure. This protects the initial automation investment while providing a clear upgrade path toward more complex control requirements.

For remote sites or unmanned substations, the 1762-L24AWA’s compact form factor and wide operating temperature range make it suitable for deployment in distributed control panels where space and environmental conditions are constrained. Combined with a cellular or Ethernet gateway device, the controller’s serial data stream can be tunneled to a central SCADA server, enabling full remote monitoring and control of geographically dispersed assets.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1762-L24AWA support, and is it compatible with Modbus RTU devices?
The 1762-L24AWA supports DH-485, DF1 Full-Duplex, DF1 Half-Duplex, and ASCII protocols natively. Modbus RTU master functionality can be implemented via MSG instructions on the RS-232 channel, enabling integration with third-party drives, meters, and sensors that use the Modbus protocol — without requiring an external gateway.

Q2: How does the 1762-L24AWA integrate with SCADA and HMI systems, and what is the typical communication latency?
The controller integrates with SCADA platforms such as FactoryTalk View, Ignition, and Wonderware via RSLinx Classic OPC server over DH-485 or RS-232. Typical poll cycle latency on a DH-485 network with standard token-passing configuration is 5–50 ms depending on network load and node count — well within the requirements of most process monitoring and alarm management applications.

Q3: Can the 1762-L24AWA be expanded with additional I/O modules, and what is the maximum expansion capacity?
Yes. The MicroLogix 1200 platform supports up to 6 expansion modules on the local I/O bus, including digital, analog, thermocouple, and specialty communication modules from the 1762-series range. This allows the total I/O count to be scaled from 24 points up to 136 points, accommodating growing process control requirements without controller replacement.

Q4: What does the 12-month warranty cover, and has the unit been tested prior to shipment?
Every 1762-L24AWA unit supplied by ZYPLC undergoes pre-shipment functional verification, including power-on testing, communication port validation, and I/O channel continuity checks. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation, configuration, and network commissioning queries.
