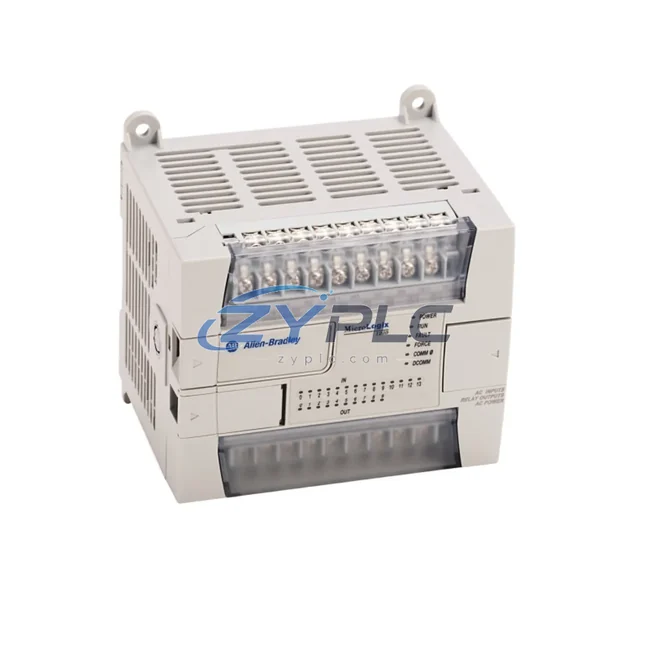

Allen-Bradley 1762-L24BWA PLC MicroLogix 1200

Allen-Bradley 1762-L24BWA PLC for MicroLogix 1200 Automation

The Allen-Bradley 1762-L24BWA is a compact, high-performance programmable logic controller from the MicroLogix 1200 series, engineered to deliver precise maintenance planning and reliable control execution across demanding industrial environments. With 24 I/O points, relay output configuration, and native support for ladder logic and function block programming, the 1762-L24BWA enables manufacturers to reduce unnecessary power draw, tighten production cycle times, and extend equipment service life — all within a single, DIN-rail-mounted unit.

In modern production facilities where energy costs represent a significant share of operating expenditure, the 1762-L24BWA provides a measurable advantage. Its deterministic scan cycle ensures that control commands are executed with minimal latency, preventing the unplanned downtime associated with over-cycling actuators, prolonged motor run times, and uncoordinated equipment sequencing. When integrated with a PowerFlex 40 or PowerFlex 525 variable frequency drive, the controller can dynamically adjust motor speed in response to real-time load conditions, eliminating the fixed-speed inefficiencies that account for a large portion of industrial electricity consumption.

The 1762-L24BWA communicates natively over DF1 and DH-485 protocols, and through expansion modules such as the 1762-IQ8 digital input module and 1762-OW8 relay output module, the system can be scaled to monitor and control additional energy-consuming assets across the production line. Integration with a 1762-IF4 analog input module allows the controller to receive 4–20 mA signals from current transformers or power transducers, enabling closed-loop energy feedback without requiring a separate power monitoring gateway.

For facilities requiring higher-level visibility, the 1762-L24BWA pairs seamlessly with a PanelView Component C600 or C1000 HMI terminal, giving operators real-time access to operating load trends, equipment status, and alarm conditions. This visibility supports proactive maintenance scheduling, reducing unplanned downtime and the energy spikes associated with emergency restarts and cold-start sequences.

Product Specification Table

System Compatibility and Application

The 1762-L24BWA is most effective when deployed as the central control node within a layered automation architecture. At the drive level, pairing the controller with a PowerFlex 40 (22B series) or PowerFlex 525 variable frequency drive allows precise speed and torque regulation of three-phase induction motors, directly reducing kWh consumption during partial-load operation. The controller’s analog output expansion — available via the 1762-OF4 analog output module — provides the 0–10V or 4–20 mA reference signal required to command drive speed setpoints in real time.

At the sensing and feedback layer, the 1762-IF4 analog input module collects process variables such as pressure, flow, and temperature from field transmitters, enabling the 1762-L24BWA to implement maintenance-focused PID control loops. When a conveyor or pump system operates below its design load, the controller can automatically reduce drive output frequency, cutting motor load proportionally to the cube of speed reduction — a well-established principle in variable-torque applications.

For communication and data aggregation, the 1762-L24BWA supports connection to a 1761-NET-ENI Ethernet interface module, enabling integration with plant-level SCADA systems or MES platforms via EtherNet/IP. This connectivity allows operating load data collected at the controller level to be aggregated alongside production throughput metrics, giving energy managers the context needed to identify inefficient production windows and schedule high-energy tasks during off-peak tariff periods.

Expansion with a 1762-IQ8 digital input module supports connection of additional discrete sensors — including proximity switches, photoelectric sensors, and door interlocks — that allow the controller to implement equipment idle-state logic. When a production cell is awaiting upstream material, the 1762-L24BWA can command connected drives and actuators into a low-power standby mode, resuming full operation only when the upstream signal confirms material availability. This approach, sometimes called demand-responsive control, can reduce standby operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

At the operator interface layer, a PanelView Component C600 HMI provides a local visualization point for energy and process data, while a 1762-OW8 relay output module handles switching of auxiliary loads such as lighting circuits, cooling fans, and pneumatic solenoids — all under the coordinated control of the 1762-L24BWA’s ladder logic program.

Maintenance and Replacement Notes

In automotive component assembly, the 1762-L24BWA has been deployed to coordinate multi-axis conveyor systems where precise start/stop sequencing eliminates the inrush current spikes that occur when multiple motors start simultaneously. By staggering motor start commands across a 200–500ms window, the controller reduces peak demand charges — a cost that can represent Actual operating results depend on the installed system, load profile, and commissioning parameters.

In food and beverage processing, the controller’s analog I/O expansion enables closed-loop control of pump and agitator speeds based on tank level and viscosity feedback. Rather than running pumps at fixed speed against a throttling valve — a notoriously wasteful practice — the 1762-L24BWA commands the PowerFlex 525 drive to match pump output precisely to process demand, reducing pump motor load by up to 50% compared to fixed-speed operation.

In HVAC and building automation applications within industrial facilities, the 1762-L24BWA manages chiller staging, air handling unit fan speeds, and cooling tower pump sequencing. By integrating outdoor temperature and occupancy signals through the 1762-IQ8 input module, the controller implements predictive pre-cooling strategies that shift operating load to lower-tariff periods, reducing peak demand without compromising thermal comfort or process cooling requirements.

Predictive maintenance is another area where the 1762-L24BWA delivers operational stability indirectly. By monitoring motor run-hour counters, output current trends (via analog feedback from the PowerFlex drive), and cycle count data, the controller can trigger maintenance alerts before a degraded bearing or worn coupling causes a motor to draw abnormal load. Addressing mechanical inefficiencies proactively prevents the gradual energy creep that occurs when equipment operates in a degraded state for extended periods.

All units supplied by ZYPLC are subject to pre-shipment functional testing, including I/O verification, communication port validation, and power-on self-test confirmation. Each 1762-L24BWA is covered by a warranty terms confirmed during quotation from the date of shipment, with availability confirmed by RFQ availability supporting rapid deployment for both planned upgrades and emergency replacement scenarios.

Product Sourcing FAQ

Q1: How does the 1762-L24BWA contribute to measurable operational stability in a production environment?
The 1762-L24BWA enables operational stability through precise load-responsive control of connected drives and actuators. When paired with a PowerFlex 40 or PowerFlex 525 VFD, the controller adjusts motor speed in real time based on process demand, eliminating the fixed-speed overconsumption common in legacy relay-controlled systems. Additional savings are achieved through idle-state logic, staggered motor starting, and demand-responsive standby modes programmed in RSLogix 500.

Q2: Is the 1762-L24BWA compatible with existing Allen-Bradley expansion modules and communication networks?
Yes. The 1762-L24BWA is fully compatible with the MicroLogix 1200 expansion I/O family, including the 1762-IQ8, 1762-OW8, 1762-IF4, and 1762-OF4 modules. It supports DF1 full-duplex and DH-485 communication natively, and can be connected to EtherNet/IP networks via the 1761-NET-ENI interface module, enabling integration with existing Rockwell Automation control architectures.

Q3: Can the 1762-L24BWA replace an existing MicroLogix 1200 unit without reprogramming?
In most cases, yes. The 1762-L24BWA is a direct form-fit-function replacement for other 1762-series controllers with equivalent I/O configurations. Existing RSLogix 500 programs can be uploaded from the original controller (if accessible) or downloaded directly to the replacement unit. ZYPLC recommends verifying firmware revision compatibility and I/O mapping before commissioning the replacement unit in a live production environment.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 1762-L24BWA supplied by ZYPLC undergoes pre-shipment testing that includes power-on self-test, I/O point verification, and communication port validation. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost. Warranty claims are processed through ZYPLC’s technical support team, with typical response times of 1–2 business days.
