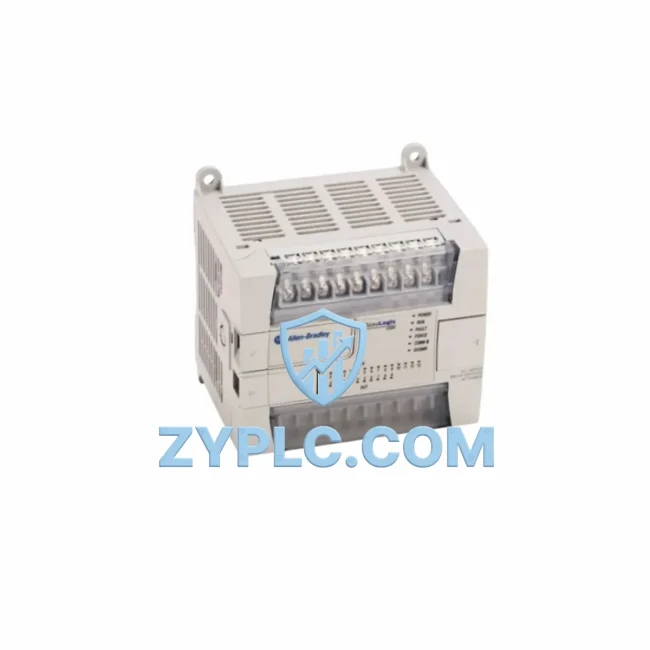

Allen-Bradley 1762-L40BWAR Programmable Logic Controller for MicroLogix 1200 Systems

Allen-Bradley 1762-L40BWAR: Industrial Data Link for MicroLogix 1200 Smart Factory Networks

The Allen-Bradley 1762-L40BWAR is a high-performance programmable logic controller (PLC) from Rockwell Automation’s MicroLogix 1200 series, engineered to serve as the central industrial network interface in modern smart factory environments. With native Ethernet/IP communication capability, 40 discrete I/O points, and robust protocol support, the 1762-L40BWAR bridges the gap between field-level devices and upper-level supervisory systems — enabling seamless, real-time data flow across the entire automation architecture.

In today’s connected manufacturing landscape, the ability to move data reliably from sensors and actuators through PLCs to SCADA and MES platforms is the foundation of operational transparency. The 1762-L40BWAR is purpose-built for this role. Its onboard Ethernet/IP port enables direct integration with Rockwell’s FactoryTalk View SCADA/HMI platform, allowing operators to monitor I/O states, ladder logic execution, and alarm conditions in real time — without the latency or reliability issues associated with legacy serial communication.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1762-L40BWAR operates at the heart of a layered industrial communication architecture. At the field level, discrete sensors — including photoelectric sensors, proximity switches, and limit switches — feed digital signals directly into the controller’s 24 input channels. These signals are processed by the onboard ladder logic engine, which executes control decisions in real time and drives the 16 relay output channels to actuate motors, solenoids, and indicator systems.

For analog process data, the 1762-L40BWAR supports expansion with the 1762-IF4 analog input module and the 1762-OF4 analog output module, enabling integration with 4–20mA transmitters for temperature, pressure, and flow measurement. This analog data is then made available over Ethernet/IP to upstream SCADA systems, closing the loop between physical process variables and digital supervisory control.

Communication with variable frequency drives (VFDs) and servo drives is handled through the RS-232/RS-485 Channel 1 port using DF1 or Modbus RTU protocol. This allows the 1762-L40BWAR to command drive speed references, read fault codes, and monitor energy consumption — data that is simultaneously forwarded to FactoryTalk View SE or third-party SCADA platforms via the Ethernet/IP port. For sites requiring DeviceNet connectivity, the 1761-NET-DNI adapter bridges the MicroLogix 1200 into DeviceNet segments, enabling communication with smart sensors, valve manifolds, and distributed I/O blocks.

Remote I/O expansion is achieved through the 1762-IQ16 digital input module and 1762-OW16 relay output module, extending the controller’s reach to remote panel locations without additional CPU hardware. For HMI integration, the 1762-L40BWAR communicates natively with PanelView 800 and PanelView Component terminals over Ethernet/IP or DH-485, providing operators with real-time process visualization, alarm acknowledgment, and parameter adjustment at the machine level.

At the network layer, the 1762-L40BWAR connects to managed industrial Ethernet switches — such as the Stratix 2000 or Stratix 5700 series — which provide VLAN segmentation, port mirroring, and Quality of Service (QoS) prioritization for time-sensitive control traffic. This ensures that EtherNet/IP I/O data packets are delivered with deterministic latency, even in high-traffic plant networks shared with video surveillance and enterprise IT systems.

For edge computing and IIoT gateway applications, the 1762-L40BWAR’s Ethernet/IP data can be aggregated by edge gateways such as the Moxa MGate MB3180 or Ewon Flexy 205, which publish PLC data to cloud MQTT brokers or OPC-UA servers. This enables remote monitoring dashboards, predictive maintenance analytics, and digital twin synchronization — all without modifying the existing PLC program or network topology.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy manufacturing environments is protocol fragmentation. Older production lines often combine equipment from multiple vendors — each using proprietary communication standards such as Modbus RTU, Profibus DP, DeviceNet, or proprietary serial protocols — creating data silos that prevent unified monitoring and control. The 1762-L40BWAR addresses this directly through its multi-protocol communication architecture.

By supporting Ethernet/IP as its primary network protocol alongside DF1 and DH-485 on its serial channels, the 1762-L40BWAR acts as a protocol gateway between legacy field devices and modern Ethernet-based supervisory systems. Facilities that previously required separate OPC servers or protocol converters for each equipment type can consolidate data collection through a single MicroLogix 1200 controller, dramatically reducing integration complexity and maintenance overhead.

Remote monitoring is another area where the 1762-L40BWAR delivers measurable value. Through FactoryTalk Remote Access or VPN-enabled Ethernet connections, maintenance engineers can perform remote diagnostics — reading I/O status, monitoring program execution, and modifying data table values — without physical access to the control panel. This capability reduces mean time to repair (MTTR) for remote or unmanned installations such as pump stations, compressor skids, and conveyor systems.

Production line transparency is achieved through the controller’s ability to log process data — cycle counts, fault events, and runtime hours — directly to SCADA historian databases. This data supports OEE (Overall Equipment Effectiveness) calculations, shift performance reporting, and compliance documentation. As production demands evolve, the 1762-L40BWAR’s modular expansion architecture allows I/O capacity to grow incrementally by adding 1762-series modules, avoiding costly controller replacements and minimizing production downtime during system upgrades.

Every 1762-L40BWAR unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication port verification, I/O channel continuity checks, and firmware version confirmation. Units are shipped with a 12-month warranty covering manufacturing defects and communication failures, with in-stock inventory available for same-week dispatch via DHL Express or FedEx International Priority.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1762-L40BWAR over Ethernet/IP?
The 1762-L40BWAR supports Ethernet/IP implicit messaging (Class 1) with configurable RPI (Requested Packet Interval) as low as 10ms, making it suitable for time-sensitive I/O control applications. Explicit messaging (Class 3) for data table reads and writes typically completes within 20–50ms depending on network load and switch configuration.

Q2: Is the 1762-L40BWAR compatible with third-party SCADA systems such as Ignition or Wonderware?
Yes. The 1762-L40BWAR communicates via Ethernet/IP and DF1 protocols, both of which are supported by major SCADA platforms including Inductive Automation Ignition (via the Allen-Bradley driver), AVEVA Wonderware, and Kepware KEPServerEX. OPC-DA and OPC-UA connectivity is available through these middleware platforms without requiring additional hardware.

Q3: Can the 1762-L40BWAR be expanded to support more I/O points?
Yes. The MicroLogix 1200 platform supports up to 6 expansion modules from the 1762-series, including digital input, digital output, analog input, analog output, and specialty modules such as the 1762-IR4 RTD input module. This allows the total I/O count to be scaled from 40 points up to 136 points without replacing the base controller.

Q4: What warranty and testing does ZYPLC provide for the 1762-L40BWAR?
All 1762-L40BWAR units supplied by ZYPLC carry a 12-month warranty covering hardware defects and communication port failures. Each unit undergoes pre-shipment testing including power-on verification, Ethernet/IP communication test, and I/O channel functional check. Detailed test reports are available upon request. Units are shipped in original or equivalent protective packaging with full traceability documentation.
