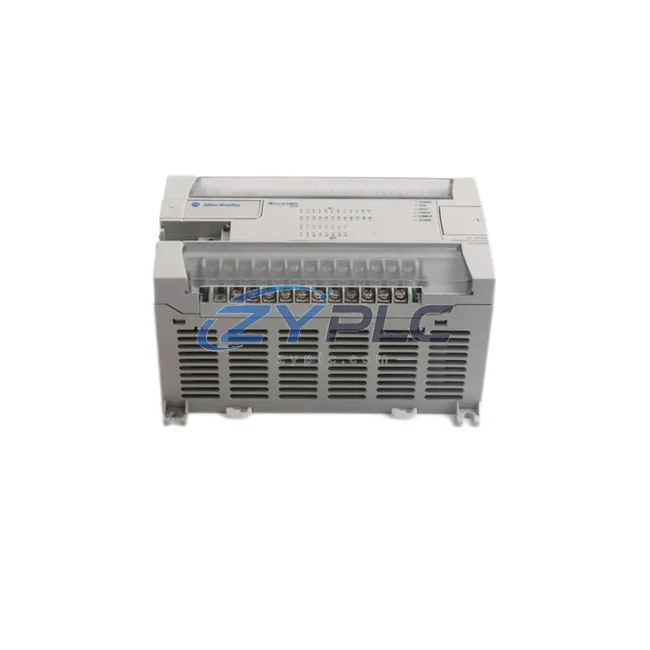

Allen-Bradley 1762-L40BXBR Industrial Network Interface for MicroLogix Systems

Allen-Bradley 1762-L40BXBR: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1762-L40BXBR is a 40-point programmable logic controller belonging to the MicroLogix 1200 series — a platform engineered for seamless industrial network communication across multi-protocol automation environments. As a core network interface node, the 1762-L40BXBR bridges field-level devices, distributed I/O modules, drive systems, and supervisory control layers into a unified, real-time data fabric. Whether deployed in discrete manufacturing, process control, or hybrid smart factory architectures, this unit delivers the protocol flexibility, communication stability, and system integration depth that modern industrial sites demand.

In today’s connected factory, data must flow without interruption from the sensor layer through to the SCADA dashboard. The 1762-L40BXBR is purpose-built to anchor that data chain — handling signal acquisition, protocol conversion, and network transmission simultaneously while maintaining deterministic cycle times critical to production continuity.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1762-L40BXBR operates at the intersection of field instrumentation and supervisory systems, making it an indispensable node in any layered automation architecture. At the field level, digital signals from proximity sensors, photoelectric detectors, and limit switches feed directly into the unit’s 24 DC input channels. These raw signals are processed by the onboard CPU and made available to upstream systems via the MicroLogix 1200’s multi-protocol communication stack.

On the network side, Channel 0 (RS-232) supports DF1 Full-Duplex communication for direct point-to-point connections with programming terminals running RSLogix 500, while Channel 1 — when paired with the 1762-NC01 RS-232/RS-485 converter — enables DH-485 network participation, allowing the 1762-L40BXBR to communicate with other MicroLogix nodes such as the 1762-L24BXBR and 1762-L40AWA on a shared DH-485 segment. This multi-node architecture supports up to 32 devices on a single DH-485 network, enabling distributed control without the overhead of a full EtherNet/IP backbone.

For Modbus RTU environments — common in legacy process plants and energy monitoring systems — the 1762-L40BXBR acts as a Modbus master or slave, polling field transmitters, variable frequency drives such as the PowerFlex 40 and PowerFlex 4M, and remote I/O modules. This makes it straightforward to integrate third-party instrumentation into an Allen-Bradley control ecosystem without protocol conversion hardware.

At the supervisory layer, SCADA platforms including FactoryTalk View SE and third-party systems via OPC-DA connect through RSLinx Classic, which translates DH-485 and DF1 traffic into a format consumable by HMI terminals such as the PanelView 800 and PanelView Component C600. This creates a complete data pipeline: sensor → 1762-L40BXBR → DH-485 network → RSLinx Classic → FactoryTalk View SE SCADA → enterprise MES layer.

For remote I/O expansion, the 1762-IQ16 (16-point DC input) and 1762-OW16 (16-point relay output) expansion modules connect directly to the 1762-L40BXBR’s I/O bus, extending the system’s reach to additional field devices without adding network complexity. When edge computing or cloud connectivity is required, an industrial edge gateway such as the Moxa MGate MB3180 can bridge Modbus RTU data from the 1762-L40BXBR to MQTT or OPC-UA for IIoT platform integration.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial environments is protocol fragmentation — legacy Modbus RTU devices, DH-485 networks, and newer EtherNet/IP systems operating in silos with no unified data view. The 1762-L40BXBR directly addresses this by serving as a multi-protocol gateway that speaks natively to both legacy field devices and modern supervisory systems.

Protocol Unification: By supporting Modbus RTU, DH-485, and DF1 simultaneously across its communication channels, the 1762-L40BXBR eliminates the need for standalone protocol converters between field instruments and the control layer. A single unit can poll Modbus slave devices on Channel 1 while maintaining a DF1 connection to a programming terminal on Channel 0 — reducing hardware count and potential failure points.

Eliminating Data Islands: In multi-zone production environments where each line operates its own isolated PLC, the DH-485 network capability of the 1762-L40BXBR allows peer-to-peer MSG instruction communication between controllers. Production counts, alarm states, and recipe parameters can be shared across zones in real time, giving operators and SCADA systems a plant-wide view rather than fragmented per-machine snapshots.

Remote Monitoring and Diagnostics: Through RSLinx Classic and FactoryTalk Diagnostics, maintenance engineers can remotely monitor the 1762-L40BXBR’s I/O status, communication health, and program execution without physical access to the panel. Alarm conditions detected at the input level are immediately propagated to the SCADA alarm server, enabling rapid response and reducing mean time to repair (MTTR).

Production Line Transparency: With real-time data flowing from field sensors through the 1762-L40BXBR to HMI and SCADA, production managers gain live OEE metrics, cycle time data, and downtime event logs. This transparency is foundational to continuous improvement programs and Industry 4.0 digital transformation initiatives.

System Scalability: The modular I/O expansion architecture — supporting up to 6 expansion modules — means the 1762-L40BXBR can grow with the application. As production lines expand or new equipment is added, additional 1762-series I/O modules can be appended without replacing the base controller, protecting the capital investment in the control platform.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the 1762-L40BXBR on its serial channels?
Channel 0 (RS-232) supports baud rates up to 19,200 bps for DF1 and Modbus RTU communication. Channel 1, when configured for DH-485 via the 1762-NC01 adapter, operates at up to 19,200 bps. These speeds are well-suited for the polling cycles typical in discrete manufacturing and process control applications, ensuring deterministic data delivery without network congestion.

Q2: Is the 1762-L40BXBR compatible with third-party SCADA and HMI systems beyond Rockwell’s FactoryTalk suite?
Yes. Because the 1762-L40BXBR supports Modbus RTU and DF1 protocols — both of which are widely supported by OPC server software — it can integrate with virtually any SCADA platform that includes an OPC-DA or Modbus driver, including Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC. RSLinx Classic acts as the OPC server bridge for DH-485 and DF1 connections.

Q3: How does the 1762-L40BXBR handle network instability or communication interruptions?
The MicroLogix 1200 platform includes configurable communication fault routines that allow the PLC program to detect loss of communication on either channel and execute a defined fault response — such as holding last known output states, triggering an alarm output, or initiating a controlled shutdown sequence. This ensures that a network interruption does not result in uncontrolled machine behavior, maintaining safety and process integrity.

Q4: What pre-shipment testing and warranty coverage is provided with the 1762-L40BXBR?
Every 1762-L40BXBR unit supplied by ZYPLC undergoes functional verification testing prior to dispatch, including I/O point continuity checks, communication port validation, and power-on self-test confirmation. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and operational failures. Global shipping is handled via DHL and FedEx Express with full tracking, and our technical team provides post-sale support for installation, configuration, and network integration queries.

—
