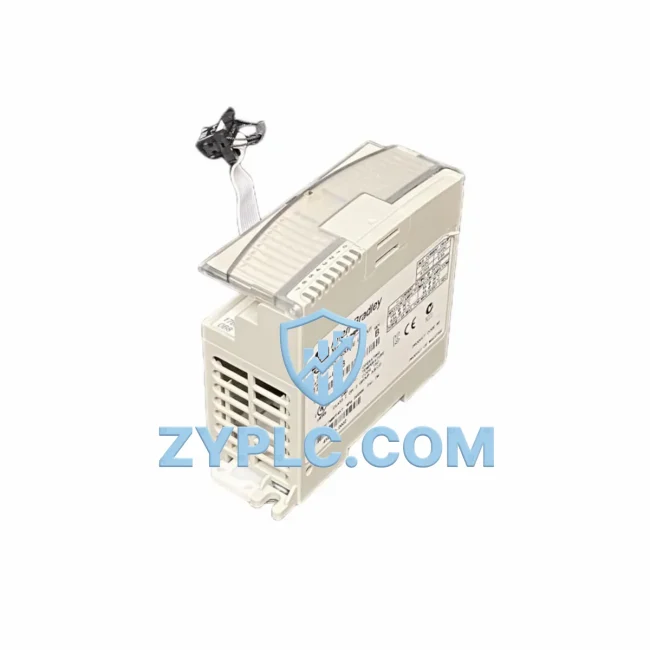

Allen-Bradley 1762-OB8 Industrial Network Interface for MicroLogix Systems

Allen-Bradley 1762-OB8 Industrial Network Interface: Powering Smart Factory Data Links

The Allen-Bradley 1762-OB8 is an 8-point 24VDC sourcing digital output module engineered for the MicroLogix 1200 and MicroLogix 1500 control platforms. In modern smart factory environments, where every millisecond of signal latency and every byte of process data matters, the 1762-OB8 serves as a critical node in the industrial data chain — bridging field-level actuator commands with higher-level control, monitoring, and diagnostic systems. Whether you are managing a discrete manufacturing line, a conveyor automation cell, or a multi-zone process control network, this module delivers the deterministic output switching and network-ready architecture that Industry 4.0 demands.

At its core, the 1762-OB8 integrates seamlessly into the MicroLogix 1200 expansion bus, enabling the host PLC to extend its digital output capacity without sacrificing scan-cycle performance. The module supports the full MicroLogix I/O expansion protocol, ensuring that output state data is continuously synchronized with the controller’s ladder logic execution engine. This tight coupling between the 1762-OB8 and the MicroLogix 1200 CPU module means that output commands derived from upstream SCADA decisions or HMI operator inputs are executed with minimal propagation delay — a non-negotiable requirement in high-speed packaging, press control, and material handling applications.

Network Communication Table

Connected Automation Data Flow

Understanding the 1762-OB8’s role requires tracing the full industrial data flow from sensor to cloud. In a typical smart factory deployment, field sensors — such as inductive proximity switches, photoelectric sensors, and pressure transducers — feed digital and analog signals into the MicroLogix 1200 input modules, including the companion 1762-IQ8 8-point DC input module. The MicroLogix 1200 CPU processes these inputs through its ladder logic program and issues output commands to the 1762-OB8, which then drives actuators, solenoid valves, motor starters, and indicator lights on the plant floor.

For network connectivity, the MicroLogix 1200 communicates upstream via the 1761-NET-ENI Serial-to-EtherNet/IP adapter, converting the native DF1 or DH-485 serial protocol into EtherNet/IP packets that traverse the plant’s managed industrial Ethernet switch infrastructure. This allows SCADA platforms such as Ignition by Inductive Automation or Rockwell’s FactoryTalk View SE to poll real-time output status data from the 1762-OB8’s output image table, enabling operators to monitor actuator states, detect output faults, and trigger alarm notifications without physical access to the control panel.

In multi-node architectures, the MicroLogix 1200 with 1762-OB8 expansion can be networked alongside Allen-Bradley CompactLogix L-series controllers and PowerFlex 525 variable frequency drives via DeviceNet or EtherNet/IP, creating a unified control fabric where output commands, drive speed references, and process feedback are exchanged in real time. The ProSoft MVI56-MCM Modbus Communication Module can further extend this network to legacy Modbus RTU devices — such as third-party energy meters, flow controllers, and remote I/O racks — ensuring that no field device remains isolated from the central data infrastructure.

At the edge, industrial gateways such as the Moxa MGate MB3180 or the Red Lion Data Station Plus aggregate serial and Ethernet data streams from multiple MicroLogix nodes, performing protocol conversion and forwarding structured data packets to cloud-based MES or ERP platforms. This edge-to-cloud data pipeline transforms the 1762-OB8’s discrete output states into actionable production KPIs — OEE, cycle time, downtime events — that plant managers can analyze in real time from any location.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. A plant floor may simultaneously operate Allen-Bradley MicroLogix controllers on DH-485, Siemens S7-300 PLCs on PROFIBUS DP, and third-party remote I/O racks on Modbus RTU — each speaking a different industrial language, creating data silos that prevent unified monitoring and control. The 1762-OB8, deployed within a MicroLogix 1200 system and connected through a protocol gateway such as the ProSoft MVI46-MCM or the 1761-NET-ENI, becomes a bridge node that feeds its output state data into a common EtherNet/IP backbone accessible to all supervisory systems.

Remote monitoring is another critical pain point addressed by this architecture. Without network-connected output modules, maintenance engineers must physically inspect control panels to verify actuator states — a time-consuming and error-prone process. With the 1762-OB8 integrated into a networked MicroLogix system, remote diagnostics become straightforward: SCADA operators can read output image table data, identify stuck outputs or communication faults, and initiate corrective actions from the control room or via mobile HMI applications, dramatically reducing mean time to repair (MTTR).

Production line transparency is further enhanced through historian integration. Output state change events from the 1762-OB8 are time-stamped and logged by the SCADA historian, providing a complete audit trail of actuator activity. This data supports root cause analysis for quality escapes, enables predictive maintenance scheduling based on output switching frequency, and provides the evidence base for continuous improvement initiatives. System scalability is preserved through the MicroLogix 1200’s modular expansion architecture — additional 1762-series I/O modules can be added to the expansion bus as production requirements grow, without requiring controller replacement or network reconfiguration.

Every 1762-OB8 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying output switching performance, isolation integrity, and bus communication handshake with the MicroLogix host controller. Units are shipped with a 12-month warranty covering manufacturing defects and communication failures, backed by in-stock inventory for immediate dispatch to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1762-OB8 support for SCADA integration?
The 1762-OB8 communicates natively via the MicroLogix expansion bus and supports upstream network connectivity through DH-485 and DF1 serial protocols. For EtherNet/IP integration with SCADA platforms such as FactoryTalk View or Ignition, the 1761-NET-ENI adapter is used to convert serial data to Ethernet packets, enabling real-time output state monitoring with typical scan-cycle latencies under 10ms.

Q2: Is the 1762-OB8 compatible with third-party HMI and SCADA systems?
Yes. Because the MicroLogix 1200 supports standard DF1 and DH-485 protocols, and can be bridged to EtherNet/IP via the 1761-NET-ENI, the 1762-OB8’s output data is accessible to any SCADA or HMI platform with an Allen-Bradley or EtherNet/IP driver — including Ignition, WinCC, Citect SCADA, and Wonderware InTouch. OPC-UA connectivity is achievable through Kepware KEPServerEX with the Allen-Bradley ControlLogix driver.

Q3: How does ZYPLC ensure network stability and output reliability for the 1762-OB8?
Each unit undergoes pre-shipment functional testing that validates output switching under rated load conditions, optical isolation integrity, and MicroLogix expansion bus communication. Units are sourced from verified supply channels and stored in ESD-controlled environments. The 12-month warranty covers all manufacturing defects and communication failures, with replacement units dispatched from in-stock inventory to minimize production downtime.

Q4: Can the 1762-OB8 be used in systems requiring network expansion or additional I/O?
Absolutely. The MicroLogix 1200 supports up to 6 expansion modules on its local expansion bus, allowing the 1762-OB8 to coexist with analog input modules (1762-IF4), additional digital input modules (1762-IQ8), and specialty communication modules. For larger systems requiring distributed I/O, the MicroLogix 1200 can be networked with CompactLogix or ControlLogix platforms via EtherNet/IP, enabling seamless data exchange between the 1762-OB8’s output image and higher-level control programs without architectural redesign.
