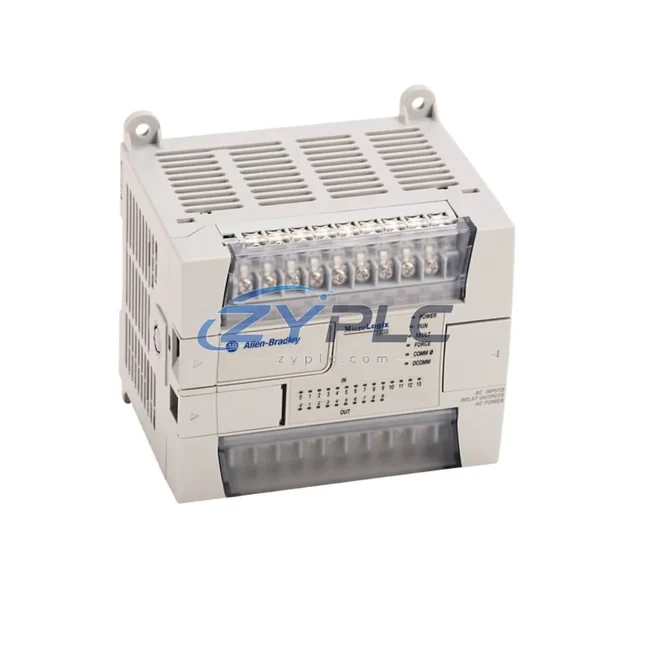

Allen-Bradley 1763-L16DWD Industrial Network Interface for MicroLogix 1100 Systems

Allen-Bradley 1763-L16DWD: Industrial Data Link for MicroLogix 1100 Smart Factory Networks

The Allen-Bradley 1763-L16DWD is a compact yet powerful MicroLogix 1100 series programmable logic controller engineered to serve as the central industrial network interface in modern smart factory environments. With native Ethernet/IP communication capability, this unit bridges the gap between field-level devices and upper-layer control systems — enabling seamless, real-time data flow across the entire automation architecture. Whether deployed in discrete manufacturing, process control, or hybrid production lines, the 1763-L16DWD delivers the connectivity, reliability, and protocol intelligence that Industry 4.0 demands.

At its core, the 1763-L16DWD functions as a protocol-aware gateway node. It collects digital and analog signals from sensors, actuators, and field instruments, processes ladder logic locally, and transmits structured data upstream via Ethernet/IP to SCADA platforms, HMI terminals, and MES systems — all with deterministic, low-latency communication. This makes it an ideal fit for applications where real-time monitoring, alarm feedback, and remote diagnostics are non-negotiable.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1763-L16DWD sits at the intersection of field instrumentation and supervisory control. Signal acquisition begins at the sensor layer — proximity switches, photoelectric sensors, temperature transmitters, and pressure transducers feed discrete and analog data into the controller’s onboard I/O. The 1763-L16DWD processes this data locally using its ladder logic engine, then routes structured process variables upstream via Ethernet/IP.

For distributed I/O expansion, the 1763-L16DWD integrates naturally with the 1762-IQ16 digital input module and 1762-OW16 relay output module from the MicroLogix 1762 expansion family, allowing engineers to scale I/O capacity without replacing the base controller. In multi-node architectures, it communicates peer-to-peer with other MicroLogix 1100 units or upstream Allen-Bradley ControlLogix L7x series controllers via EtherNet/IP messaging, enabling coordinated production line control across zones.

HMI integration is handled through direct Ethernet/IP connections to PanelView Plus 6 terminals or third-party HMI panels running RSLinx Classic or FactoryTalk View ME. Operators receive live process data, alarm states, and trend histories on the HMI screen — all driven by tag data published by the 1763-L16DWD in real time. For SCADA connectivity, the controller interfaces with Wonderware InTouch, Ignition SCADA, or FactoryTalk View SE via OPC-DA/UA bridges or direct Ethernet/IP drivers, delivering plant-wide visibility from a single supervisory layer.

In drive control applications, the 1763-L16DWD sends speed references and start/stop commands to PowerFlex 40 or PowerFlex 525 variable frequency drives over Ethernet/IP or hardwired digital outputs, enabling closed-loop motor control with feedback from encoder or current sensors. For remote sites or distributed substations, the controller pairs with an industrial cellular gateway or edge computing node — such as the Moxa MGate MB3180 or similar Modbus-to-Ethernet gateway — to extend connectivity beyond the local network and enable cloud-based remote monitoring and diagnostics.

All data flowing through the 1763-L16DWD — from sensor inputs to drive commands to SCADA tags — is timestamped and logged, supporting traceability requirements in regulated manufacturing environments. The controller’s built-in web server also allows engineers to view I/O status, network diagnostics, and controller health directly from a standard browser without additional software.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation industrial facilities is data isolation — where PLCs, drives, sensors, and HMI systems operate on incompatible protocols, creating information silos that prevent plant-wide transparency and real-time decision-making. The Allen-Bradley 1763-L16DWD directly addresses this challenge through its multi-protocol communication architecture.

Its RS-232 serial port supports DF1 Full-Duplex and DH-485 protocols, enabling the 1763-L16DWD to communicate with older Allen-Bradley SLC 500 or MicroLogix 1000 controllers that lack Ethernet capability. Through MSG instructions, it can also initiate Modbus RTU read/write operations to third-party devices — energy meters, flow computers, or legacy SCADA RTUs — effectively acting as a protocol converter that unifies heterogeneous device data onto a single Ethernet/IP backbone.

For production line transparency, the 1763-L16DWD enables OEE (Overall Equipment Effectiveness) data collection by logging machine cycle counts, downtime events, and fault codes directly in its data table. This information is then made available to MES or ERP systems via SCADA middleware, closing the loop between shop floor operations and business intelligence platforms.

Remote monitoring and diagnostics are supported through the controller’s Ethernet port, which allows IT/OT teams to access controller status, force I/O points, upload/download programs, and review fault history using RSLogix 500 or Studio 5000 Logix Designer over a standard TCP/IP network — eliminating the need for on-site visits for routine diagnostics. System expansion is equally straightforward: the 1763-L16DWD supports up to 4 expansion modules from the 1762 series, and its EtherNet/IP node can be added to any existing Rockwell Automation network without topology changes.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1763-L16DWD over Ethernet/IP?
The 1763-L16DWD supports implicit (I/O) messaging over Ethernet/IP with scan times configurable from 1 ms to 2,550 ms. For typical SCADA polling applications, explicit messaging latency is under 10 ms on a properly segmented industrial LAN, making it suitable for most real-time monitoring and control applications.

Q2: Is the 1763-L16DWD compatible with third-party SCADA and HMI systems?
Yes. The 1763-L16DWD communicates via standard Ethernet/IP and Modbus RTU protocols, which are supported by most industrial SCADA platforms including Ignition, Wonderware InTouch, Citect SCADA, and iFIX. Third-party HMI panels with EtherNet/IP or DF1 drivers can also connect directly to the controller.

Q3: How is network stability ensured in high-noise industrial environments?
The 1763-L16DWD is designed to IEC 61131-2 standards with built-in noise immunity for industrial EMC environments. It is recommended to deploy it on a dedicated industrial Ethernet switch (e.g., Stratix 2000 or equivalent managed switch) with VLAN segmentation to isolate PLC traffic from office IT networks, ensuring deterministic communication even in electrically noisy plant floors.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 1763-L16DWD unit supplied by ZYPLC undergoes full functional testing prior to shipment — including power-on verification, Ethernet/IP communication check, I/O point validation, and firmware version confirmation. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. Units are shipped with anti-static packaging and include a test report upon request.
