Allen-Bradley 1766-L32BWA PLC MicroLogix 1400

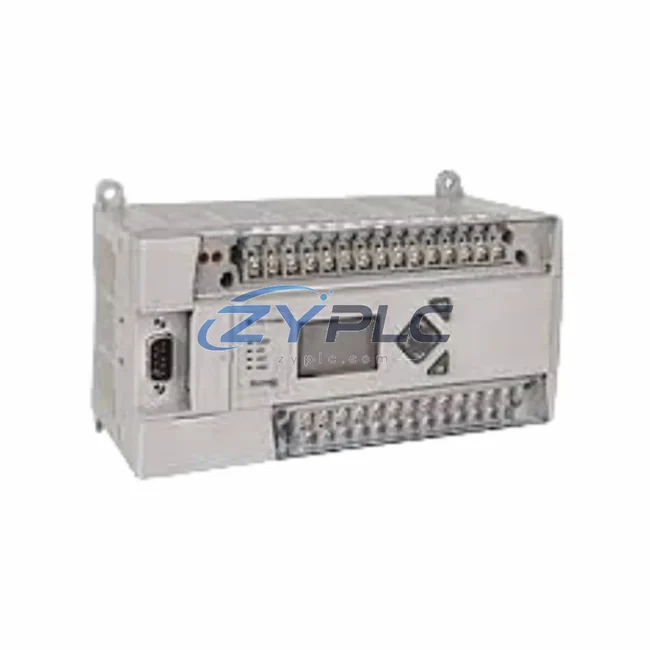

Allen-Bradley 1766-L32BWA PLC Controller for MicroLogix 1400 Automation

The Allen-Bradley 1766-L32BWA is a high-performance programmable logic controller from the MicroLogix 1400 series, engineered to deliver precise, maintenance-focused control across demanding industrial environments. With 32 I/O points, embedded Ethernet connectivity, and support for multiple communication protocols including EtherNet/IP and DF1, this controller serves as the central intelligence layer in energy-optimized automation architectures. Whether deployed in discrete manufacturing, process control, or mixed-signal production lines, the 1766-L32BWA enables facilities to reduce unplanned downtime risk, tighten cycle times, and extend equipment service life — all without sacrificing throughput or reliability.

Product Specification Table

System Compatibility and Application

In a fully integrated maintenance-focused control system, the 1766-L32BWA functions as the decision-making core that coordinates multiple subsystems to eliminate wasted energy at every stage of the production cycle. On the drive side, it communicates directly with PowerFlex 525 and PowerFlex 40 variable frequency drives via EtherNet/IP or hardwired analog signals, enabling demand-responsive motor speed control. Rather than running motors at fixed full speed, the PLC dynamically adjusts drive output based on real-time load feedback — a strategy that can help restore stable operation when a compatible replacement is required.

For I/O expansion and distributed sensing, the 1766-L32BWA integrates seamlessly with 1762-IQ16 digital input modules and 1762-OW16 relay output modules from the MicroLogix expansion family, allowing engineers to monitor energy-relevant signals — motor run status, overload trips, door interlocks, and flow switches — without adding unnecessary scan overhead. On the analog side, 1762-IF4 analog input modules bring in 4–20 mA signals from current transformers and power transducers, giving the controller direct visibility into real-time power draw at the machine level.

HMI integration is handled through PanelView Component C600 or PanelView Plus 7 terminals connected via EtherNet/IP, providing operators with live energy dashboards, alarm acknowledgment, and manual override capability. This closed-loop visibility between the 1766-L32BWA and the HMI layer ensures that energy anomalies — such as a motor drawing 15% above its baseline — are surfaced immediately rather than discovered during a monthly utility audit.

For facilities running Modbus-based energy meters or third-party power analyzers, the 1766-L32BWA’s RS-232 port supports DF1 and ASCII protocols, enabling direct polling of energy measurement devices. When paired with a 1761-NET-ENI Ethernet interface or a 1763-L16BWA MicroLogix 1100 acting as a sub-controller in a hierarchical architecture, the system can aggregate energy data from multiple machine cells and forward it upstream to a SCADA platform or MES layer for plant-wide energy accounting.

Safety and power isolation are managed through 1492-SP series supplementary protectors and 1606-XLP power supplies, which provide stable 24V DC bus voltage to the controller and field devices while protecting against transient surges that can cause nuisance trips and unplanned downtime — both of which carry hidden energy costs through restart cycles and production losses.

Maintenance and Replacement Notes

In a typical conveyor and sortation line, the 1766-L32BWA is programmed to implement zone-based motor control: each conveyor segment is only energized when product is detected by photoelectric sensors wired to the 1762-IQ16 input module. When a zone is idle for more than a configurable dwell time — typically 30 to 90 seconds — the PLC commands the corresponding PowerFlex 525 drive to ramp the motor down to a standby speed of 10–15 Hz rather than stopping and restarting it. This approach eliminates the high inrush current spikes associated with direct-on-line motor starts, which can be 6–8 times the rated full-load current and place significant stress on both the electrical infrastructure and the mechanical drivetrain.

In pump and HVAC applications, the 1766-L32BWA reads pressure or flow feedback from analog sensors through the 1762-IF4 module and implements PID control loops that continuously trim the PowerFlex 40 drive output to maintain setpoint with minimum energy input. A facility running four 15 kW pump motors under this strategy — versus fixed-speed operation — can realistically recover the cost of the entire control system within 12 to 18 months through reduced electricity consumption alone.

Predictive maintenance is another dimension of maintenance planning enabled by the 1766-L32BWA. By logging motor run hours, start counts, and thermal overload events in the controller’s data file registers, maintenance teams can schedule bearing replacements and belt inspections based on actual usage rather than fixed calendar intervals. A motor running with worn bearings draws measurably more current than a healthy one; catching this early through current trend monitoring — using data collected via the 1762-IF4 analog inputs — prevents both catastrophic failures and the unplanned downtime of a degraded machine running at reduced efficiency for weeks before it trips.

All units supplied by ZYPLC undergo a full functional test prior to shipment, including I/O point verification, communication port validation, and program upload/download confirmation. Stock is maintained on-hand for shipment arranged after confirmation, and every 1766-L32BWA is covered by a warranty terms confirmed during quotation against manufacturing defects and operational failure under normal industrial use conditions.

Product Sourcing FAQ

Q1: How much energy can the 1766-L32BWA help save in a motor-driven application?
When used to implement demand-based speed control via a compatible variable frequency drive such as the PowerFlex 525, operational stability of 20–50% are achievable in variable-torque loads (fans, pumps, conveyors) compared to fixed-speed operation. Actual savings depend on load profile, duty cycle, and baseline motor sizing.

Q2: Is the 1766-L32BWA compatible with existing MicroLogix 1200 or SLC 500 programs?
The 1766-L32BWA uses the RSLogix 500 programming environment and shares instruction set compatibility with MicroLogix 1200 and SLC 500 platforms. Most programs can be migrated with minor modifications to I/O addressing. A full compatibility review is recommended before deployment in a live system.

Q3: What is the recommended replacement or upgrade path for aging MicroLogix 1000 controllers?
The 1766-L32BWA is a direct functional upgrade from MicroLogix 1000 and 1200 series controllers, offering expanded I/O, embedded Ethernet, and greater memory capacity. For applications requiring higher axis counts or safety functions, migration to the Micro820 or CompactLogix L18ER platform may be appropriate.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
Every 1766-L32BWA shipped by ZYPLC is tested for I/O functionality, communication port operation, and power supply integrity before dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are repaired or replaced at no charge, with technical support available throughout the process.
