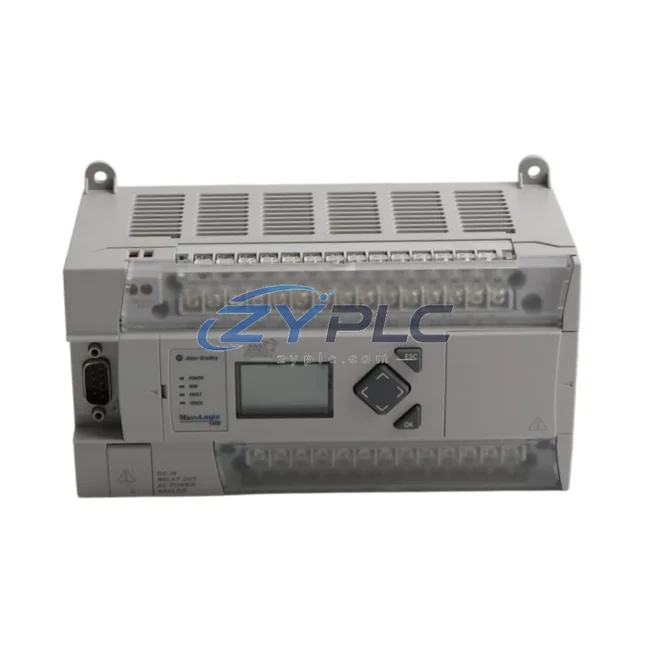

Allen-Bradley 1766-L32BWAA Industrial Network Interface for MicroLogix 1400 Systems

Allen-Bradley 1766-L32BWAA Industrial Network Interface for MicroLogix 1400 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is no longer optional — it is the foundation of operational efficiency. The Allen-Bradley 1766-L32BWAA is a high-performance industrial network interface and programmable logic controller within the renowned MicroLogix 1400 series, engineered to serve as a critical communication gateway between plant-floor assets and upper-level control architectures. With native EtherNet/IP protocol support, this unit enables real-time data exchange across PLCs, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, and edge computing gateways — making it an indispensable node in any connected automation topology.

The 1766-L32BWAA integrates 32 onboard I/O points (20 DC inputs, 12 relay outputs) with an embedded EtherNet/IP port, enabling direct connectivity to Ethernet-based industrial networks without the need for additional communication modules. Its compact DIN-rail form factor and robust design make it suitable for demanding industrial environments where network stability, deterministic communication, and long-term reliability are paramount.

Compatibility & Integration Notes

Connected Automation Data Flow

The Allen-Bradley 1766-L32BWAA sits at the heart of a layered industrial communication architecture, orchestrating data movement from the lowest field level up through enterprise systems. At the signal acquisition layer, field sensors — including proximity switches, photoelectric sensors, pressure transmitters, and temperature probes — feed discrete and analog signals directly into the 1766-L32BWAA’s onboard I/O. These raw signals are processed locally by the MicroLogix 1400’s ladder logic engine, enabling sub-millisecond response times for time-critical control tasks.

Moving up the data chain, the 1766-L32BWAA’s EtherNet/IP port connects seamlessly to Allen-Bradley 1783-series managed industrial Ethernet switches, providing deterministic, high-bandwidth network transport across the plant floor. This Ethernet backbone links the MicroLogix 1400 to Allen-Bradley PanelView Plus 7 HMI terminals, where operators gain real-time visibility into process variables, alarm states, and production KPIs without communication latency.

For distributed control architectures, the 1766-L32BWAA communicates with Allen-Bradley 1769 CompactLogix remote I/O expansion modules via EtherNet/IP, extending the control reach across multiple production zones without additional wiring infrastructure. In drive-intensive applications, the unit interfaces with Allen-Bradley PowerFlex 525 variable frequency drives over EtherNet/IP, enabling closed-loop speed regulation, torque monitoring, and predictive maintenance data collection — all within a single network segment.

At the SCADA integration layer, the 1766-L32BWAA connects to Wonderware System Platform and Ignition SCADA by Inductive Automation via EtherNet/IP and Modbus TCP drivers, delivering live process data to historian databases and dashboards. For legacy device integration, the unit’s RS-232 and RS-485 serial ports support DF1 and Modbus RTU protocols, allowing older field instruments and third-party controllers — such as Omron CP1H PLCs or Siemens S7-200 legacy units — to be bridged into the modern EtherNet/IP network through protocol conversion.

Edge computing integration is achieved by connecting the 1766-L32BWAA to Moxa UC-8112 industrial edge gateways, which aggregate data from multiple MicroLogix nodes and push structured datasets to cloud platforms or MES systems. This end-to-end data pipeline — from sensor signal to cloud analytics — is what positions the 1766-L32BWAA as a true industrial IoT enabler within the MicroLogix 1400 ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A typical manufacturing site may operate Allen-Bradley MicroLogix PLCs alongside legacy serial devices, third-party drives, and modern IP-based SCADA systems — each speaking a different protocol dialect. The result is data isolation: critical process information trapped within individual devices, invisible to the broader control system.

The 1766-L32BWAA directly addresses this challenge through its multi-protocol communication architecture. By supporting EtherNet/IP, DF1, DH-485, and Modbus RTU simultaneously, it acts as a universal protocol bridge — translating data between incompatible systems and eliminating the communication silos that impede production transparency. A single 1766-L32BWAA can aggregate data from legacy serial instruments on its RS-485 port while simultaneously publishing that data to an EtherNet/IP SCADA network, achieving protocol unification without replacing existing field hardware.

Remote monitoring and diagnostics are equally critical in distributed industrial environments. The 1766-L32BWAA’s EtherNet/IP connectivity enables remote access via Allen-Bradley FactoryTalk Remote Access or standard VPN infrastructure, allowing engineers to monitor PLC program execution, diagnose faults, and push firmware updates without physical site visits. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies that minimize unplanned downtime.

Production line transparency is achieved through the unit’s integration with MES and ERP systems. By feeding real-time cycle counts, reject rates, and equipment status data into upper-level systems, the 1766-L32BWAA enables production managers to make data-driven decisions, optimize throughput, and respond proactively to quality deviations. System expansion is equally straightforward: additional MicroLogix 1400 nodes can be added to the EtherNet/IP network without architectural changes, supporting phased factory digitalization projects.

Every 1766-L32BWAA unit supplied by ZYPLC undergoes comprehensive pre-shipment functional testing, including communication protocol verification, I/O point validation, and network connectivity checks. All units are backed by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation to global destinations.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1766-L32BWAA on an EtherNet/IP network?
The 1766-L32BWAA supports EtherNet/IP with a minimum requested packet interval (RPI) of 1ms for I/O connections, delivering deterministic, low-latency data exchange suitable for real-time control applications. Network latency is primarily governed by switch infrastructure and network load; using managed industrial Ethernet switches such as the Allen-Bradley 1783 series ensures optimal performance.

Q2: Is the 1766-L32BWAA compatible with third-party SCADA and HMI systems?
Yes. The 1766-L32BWAA supports EtherNet/IP and Modbus TCP, which are widely supported by leading SCADA platforms including Ignition, Wonderware, and Citect. Its RS-232/RS-485 serial ports also support DF1 and Modbus RTU, enabling integration with a broad range of third-party HMI and supervisory systems without additional protocol converters.

Q3: Can the 1766-L32BWAA be expanded with additional I/O modules?
Yes. The MicroLogix 1400 platform supports local I/O expansion via the 1762 MicroLogix Expansion I/O series, allowing additional digital and analog I/O modules to be added as application requirements grow. EtherNet/IP-based remote I/O expansion is also supported through integration with CompactLogix and other Allen-Bradley I/O platforms on the same network.

Q4: What warranty and testing standards apply to ZYPLC-supplied 1766-L32BWAA units?
All 1766-L32BWAA units supplied by ZYPLC are covered by a warranty terms confirmed during quotation. Prior to shipment, each unit undergoes functional testing including power-on verification, communication port testing (EtherNet/IP, RS-232, RS-485), I/O point validation, and firmware version confirmation. Units are sourced from verified supply channels and stored in controlled environments to ensure long-term reliability.
