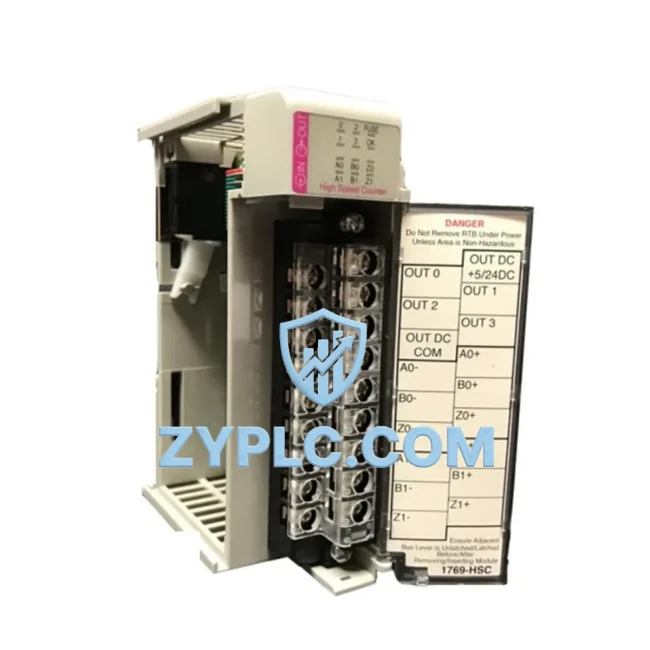

Allen-Bradley 1769-HSC Industrial Network Interface for Compact I/O Systems

Allen-Bradley 1769-HSC Industrial Network Interface for Compact I/O Systems: Precision Data Links Across the Smart Factory Floor

The Allen-Bradley 1769-HSC is a high-speed counter module engineered for the Compact I/O platform, delivering deterministic pulse counting, frequency measurement, and quadrature encoder input processing directly within the MicroLogix and CompactLogix control architecture. In modern smart factory deployments, where every microsecond of signal latency translates into production variance, the 1769-HSC serves as a critical node in the industrial data chain — bridging field-level encoder and sensor signals into the real-time data fabric of the automation network.

Designed to integrate seamlessly into the 1769 Compact I/O backplane, this module supports up to four high-speed counter channels capable of counting at rates up to 1 MHz, making it indispensable for motion control feedback, conveyor speed monitoring, flow metering, and position verification in high-throughput manufacturing lines. Its native compatibility with the MicroLogix 1500 and CompactLogix L-series processors ensures that counter data is available to the controller scan cycle with minimal overhead, enabling closed-loop control responses that keep production lines synchronized and accurate.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 1769-HSC sits at the intersection of physical motion and digital data. Consider a high-speed packaging line where incremental encoders mounted on servo axes feed quadrature signals directly into the 1769-HSC counter inputs. The module processes these signals at up to 1 MHz and delivers real-time position and velocity data to the CompactLogix L33ER processor over the 1769 Compact I/O backplane — a deterministic, low-latency communication path that eliminates the jitter associated with fieldbus polling cycles.

From the CompactLogix controller, process data travels upstream via EtherNet/IP to a 1783-US8T Stratix 2000 managed industrial Ethernet switch, which segments the automation network into dedicated VLANs for motion control, I/O data, and HMI traffic. This network segmentation ensures that high-frequency counter updates from the 1769-HSC do not compete with HMI polling or SCADA data collection for bandwidth. The PanelView Plus 7 HMI terminal subscribes to counter tags published by the CompactLogix controller, displaying live speed, count totals, and alarm states to operators on the production floor without any perceptible delay.

For remote I/O expansion beyond the local Compact I/O rack, the 1769-ADN DeviceNet adapter extends the 1769 platform over a DeviceNet segment, allowing additional 1769-series analog and digital I/O modules — such as the 1769-IF4 analog input module for pressure and temperature sensors — to share the same controller scan. Simultaneously, a 1769-ASCII serial communication module can bridge legacy RS-232 instruments, such as barcode readers or weight scales, into the same data stream, consolidating all field signals into a single unified tag database within Studio 5000.

At the SCADA layer, FactoryTalk Historian captures time-stamped counter data from the 1769-HSC channels at configurable collection rates, enabling trend analysis, OEE calculation, and predictive maintenance algorithms to run on historical production data. For sites using third-party SCADA platforms such as Ignition by Inductive Automation, the EtherNet/IP driver connects directly to the CompactLogix tag database, making 1769-HSC counter values available to dashboards, reports, and alarm management systems without any intermediate protocol conversion. Where legacy Modbus RTU devices — such as variable frequency drives controlling conveyor motors — must be integrated, a 1203-USB or third-party Modbus-to-EtherNet/IP gateway bridges the protocol gap, ensuring that drive speed feedback and the 1769-HSC encoder counts are correlated in the same SCADA historian record.

Edge computing nodes, such as the Allen-Bradley Logix Edge controller or third-party IIoT gateways running MQTT or OPC-UA, can subscribe to counter data published by the CompactLogix system, forwarding aggregated production metrics to cloud analytics platforms for enterprise-level visibility. This end-to-end data chain — from encoder pulse at the 1769-HSC input, through the Compact I/O backplane, across the industrial Ethernet network, into SCADA and up to the cloud — represents the connected automation architecture that the 1769-HSC is designed to anchor at the field level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of multiple incompatible communication protocols across different generations of equipment. A plant may have MicroLogix 1500 controllers managing older production cells over DH-485, CompactLogix systems running EtherNet/IP on newer lines, and legacy variable frequency drives communicating over Modbus RTU — all generating valuable process data that remains siloed within each subsystem.

The 1769-HSC addresses the field-level portion of this challenge by providing a standardized, high-performance counter interface that integrates directly into the Compact I/O ecosystem, regardless of the upstream network topology. By consolidating encoder, pulse, and frequency signals into the CompactLogix tag database, the module eliminates the need for standalone counter units with proprietary interfaces that cannot be read by the plant SCADA system. Once counter data is in the controller tag database, it becomes accessible to any EtherNet/IP-capable device on the network — HMIs, historians, SCADA servers, and edge gateways alike.

For production line transparency, the 1769-HSC enables real-time cycle counting and throughput monitoring that feeds directly into OEE dashboards. Operators and plant managers can view live production counts, identify bottlenecks, and receive alarm notifications when count rates deviate from setpoints — all without leaving the SCADA or HMI interface. Remote diagnostics are equally straightforward: because the 1769-HSC module status and channel data are exposed as standard controller tags, remote engineers can monitor module health, check for input signal faults, and verify counter accuracy through FactoryTalk Remote Access or VPN-connected Studio 5000 sessions without dispatching field technicians.

System expansion is equally seamless. The 1769 Compact I/O platform supports up to 30 modules per local bank, and additional banks can be connected via 1769-CRR1 or 1769-CRR3 right-end caps and expansion cables, allowing the counter capacity of a control system to grow alongside production requirements without replacing the controller or rewiring the network infrastructure. Every 1769-HSC added to the system is automatically recognized by the CompactLogix controller and appears in the I/O tree within Studio 5000, ready for tag mapping and ladder logic integration within minutes.

All units supplied by ZYPLC are sourced from authorized distribution channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty. In-stock inventory ensures rapid fulfillment with global DHL and FedEx express shipping, minimizing production downtime for facilities requiring urgent replacement or system expansion modules.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed of the 1769-HSC, and will it introduce latency into my control loop?
The 1769-HSC communicates with the CompactLogix or MicroLogix 1500 controller over the 1769 Compact I/O backplane, which operates synchronously with the controller scan cycle. Counter data is updated every scan, typically 1–10 ms depending on controller configuration. The module itself counts at up to 1 MHz independently of the scan cycle, storing accumulated counts in hardware registers that are read by the controller each scan. This architecture ensures that no counts are lost between scans and that control loop latency is bounded by the controller scan time, not by any network polling delay.

Q2: Is the 1769-HSC compatible with both MicroLogix 1500 and CompactLogix systems, and can it be used with ControlLogix via an adapter?
Yes. The 1769-HSC is natively compatible with the MicroLogix 1500 (using the 1769-L35E or similar base units) and all CompactLogix L-series controllers that support the 1769 Compact I/O platform. For ControlLogix systems, the 1769-ADN DeviceNet adapter or a 1769-SDN scanner module can be used to connect a Compact I/O bank — including the 1769-HSC — to a ControlLogix chassis over DeviceNet, making counter data available to the ControlLogix tag database and any connected EtherNet/IP network.

Q3: How does the 1769-HSC support network stability in high-vibration or electrically noisy industrial environments?
The 1769-HSC is designed to IEC 61131-2 environmental standards, with differential input support that provides common-mode noise rejection for encoder signals in electrically noisy environments. The module’s hardware counter registers are isolated from the backplane communication logic, ensuring that electrical transients on the field wiring do not corrupt counter data or disrupt backplane communication. For installations in high-vibration environments, the 1769 Compact I/O backplane locking mechanism and DIN rail mounting system provide mechanical stability that maintains reliable electrical contact across all module connectors.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1769-HSC?
Every 1769-HSC unit shipped by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm counter input operation, backplane communication integrity, and LED status indicator functionality. Units are shipped in original or equivalent protective packaging via DHL or FedEx express services with full tracking. For B2B customers requiring volume pricing, lead time commitments, or certificate of conformance documentation, please contact our sales team directly.
