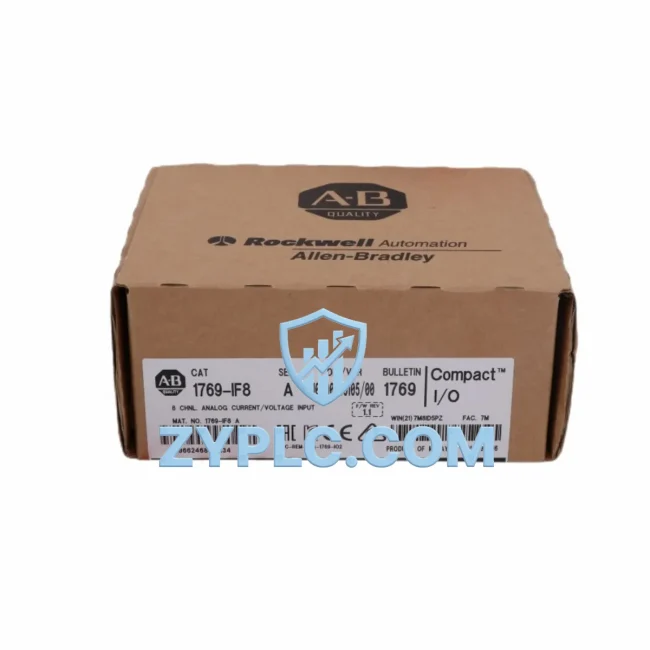

Allen-Bradley 1769-IF8 Industrial Network Interface for CompactLogix Systems

Allen-Bradley 1769-IF8 Industrial Network Interface: Bridging Field Devices to Smart Factory Data Links

The Allen-Bradley 1769-IF8 is an 8-channel analog input module engineered for seamless integration within CompactLogix control architectures. Designed to serve as a critical node in the industrial data chain, the 1769-IF8 captures real-world analog signals — voltage and current — from field-level sensors, transmitters, and transducers, converting them into precise digital values that flow upstream through the EtherNet/IP network to PLC processors, SCADA platforms, and HMI visualization systems. In smart factory environments where data continuity and signal fidelity are non-negotiable, the 1769-IF8 delivers the connectivity backbone that keeps production lines transparent, responsive, and remotely manageable.

At the heart of its design is a commitment to protocol-native communication. Operating natively within the EtherNet/IP ecosystem, the 1769-IF8 eliminates the need for external protocol converters between field instrumentation and the CompactLogix 1769-L30ER or 1769-L33ER processor. Analog signals from pressure transmitters, flow meters, temperature sensors, and level transducers are digitized at 16-bit resolution and transmitted in real time to the controller’s data table, where they become immediately available for PLC ladder logic, function block programs, and structured text routines. This tight integration reduces scan cycle latency and ensures that process variables are always current — a prerequisite for closed-loop control and alarm management in high-throughput manufacturing.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1769-IF8 sits at the signal acquisition layer, collecting analog process data from field instruments such as Endress+Hauser Promag flow transmitters, Rosemount 3051 pressure transmitters, and PT100 temperature sensors wired to terminal blocks on the module’s front face. These signals are digitized and passed across the 1769 backplane to the CompactLogix 1769-L33ER processor, where Studio 5000 Logix Designer programs process the values against setpoints and trigger control outputs through companion modules such as the 1769-OF4 analog output module or the 1769-OB16 digital output module.

From the CompactLogix processor, process data travels over EtherNet/IP to the plant network switch — typically a Stratix 5700 managed industrial Ethernet switch — and onward to the SCADA server running FactoryTalk View SE or Wonderware System Platform. Operators at HMI terminals, whether local PanelView Plus 7 displays or remote thin-client workstations, receive live trend data, alarm notifications, and process variable dashboards derived directly from the 1769-IF8’s digitized inputs. In multi-zone facilities, the 1769-IF8 can be deployed across multiple CompactLogix racks connected via EtherNet/IP, with data aggregated at a central FactoryTalk Historian server for long-term trending and OEE analysis.

For remote I/O expansion beyond the local rack, the 1769-IF8 integrates naturally alongside the 1734 POINT I/O platform connected via DeviceNet or EtherNet/IP adapters, enabling distributed analog acquisition across large plant floors without additional protocol gateways. Edge computing nodes — such as the Cisco IE 4000 industrial router or a Moxa UC-8112 edge gateway — can tap into the EtherNet/IP data stream to push real-time process values to cloud-based MES or ERP systems, completing the data chain from sensor to enterprise.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with legacy instrumentation wired to standalone analog indicators or chart recorders, creating data silos that prevent centralized monitoring and informed decision-making. The 1769-IF8 resolves this by bringing analog field signals directly into the CompactLogix control network, where they become part of a unified, addressable data model accessible to any authorized system on the EtherNet/IP network.

Protocol fragmentation — where 4–20 mA loops, HART devices, and Modbus RTU instruments coexist without a common data backbone — is addressed by pairing the 1769-IF8 with HART-enabled input modules or Modbus-to-EtherNet/IP gateways such as the ProSoft Technology MVI56E-MNET, allowing all analog and digital field data to converge in the CompactLogix data table. This unified data model enables SCADA systems to present a single, coherent process view across heterogeneous instrumentation, eliminating the need for operators to cross-reference multiple standalone displays.

Remote diagnostics are equally enhanced. Because the 1769-IF8 reports channel-level diagnostics — including open-wire detection, over-range, and under-range conditions — through the EtherNet/IP network, maintenance engineers can identify faulty field instruments from the SCADA workstation without dispatching technicians to the field. This capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies that keep production uptime high. For facilities scaling toward Industry 4.0, the 1769-IF8 provides the analog acquisition foundation that makes production line transparency, real-time KPI monitoring, and remote system expansion achievable without replacing existing field instrumentation.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1769-IF8 in a CompactLogix system?
The 1769-IF8 communicates across the CompactLogix 1769 backplane synchronously with the PLC scan cycle. Typical scan cycles in CompactLogix systems range from 5 ms to 20 ms depending on program complexity and the number of I/O modules. Analog data from the 1769-IF8 is updated every scan, ensuring real-time responsiveness for closed-loop control and alarm management applications.

Q2: Is the 1769-IF8 compatible with FactoryTalk View and third-party SCADA systems?
Yes. Because the 1769-IF8 operates natively within the CompactLogix EtherNet/IP architecture, its data is accessible to any SCADA or HMI platform that supports EtherNet/IP or OPC-DA/UA communication with Rockwell Automation controllers. This includes FactoryTalk View SE, Wonderware, Ignition by Inductive Automation, and Siemens WinCC via OPC bridging.

Q3: How does the 1769-IF8 support network stability in high-noise industrial environments?
The 1769-IF8 features differential analog inputs with common-mode rejection, reducing susceptibility to electrical noise from variable frequency drives, motor starters, and high-current cabling common in industrial environments. For network-level stability, deploying the module within a properly segmented EtherNet/IP network — using managed switches such as the Stratix 5700 with IGMP snooping and QoS configured — ensures deterministic data delivery to SCADA and HMI systems.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1769-IF8?
Every 1769-IF8 unit supplied by ZYPLC carries a 12-month warranty covering hardware defects and functional failures. All modules undergo functional testing prior to shipment to verify channel accuracy, signal range compliance, and backplane communication integrity. In-stock units are available for same-week dispatch, and our technical team provides pre-sales compatibility verification and post-sales integration support.

—
