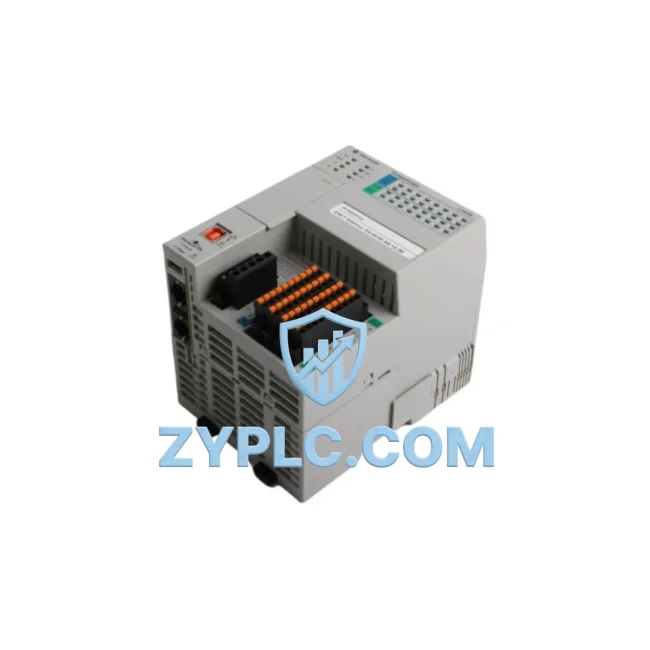

Allen-Bradley 1769-L18ERM-BB1B Industrial Network Interface for CompactLogix Systems

Allen-Bradley 1769-L18ERM-BB1B: Industrial Data Link for CompactLogix Smart Factory Networks

The Allen-Bradley 1769-L18ERM-BB1B is a CompactLogix 5370 L1 series programmable logic controller engineered to serve as the central industrial network interface in modern smart factory environments. With dual EtherNet/IP ports, 0.5 MB of controller memory, and integrated motion control for up to 2 axes, this unit bridges the gap between field-level devices and upper-layer supervisory systems — enabling seamless, real-time data flow across the entire automation architecture. Whether deployed in discrete manufacturing, process control, or hybrid production lines, the 1769-L18ERM-BB1B delivers the protocol intelligence, communication stability, and system scalability that Industry 4.0 demands.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1769-L18ERM-BB1B sits at the heart of the control network, orchestrating data movement between field instruments and enterprise systems. Signal acquisition begins at the sensor and actuator layer: analog input modules such as the 1769-IF8 collect 4–20 mA process signals from pressure transmitters, flow meters, and temperature sensors, feeding real-time values directly into the controller’s data table. On the output side, modules like the 1769-OB16 translate controller logic into discrete switching commands for solenoids, motor starters, and indicator panels.

For distributed I/O architectures, the 1769-L18ERM-BB1B communicates over EtherNet/IP with remote adapter nodes such as the 1734-AENT Point I/O Ethernet Adapter, extending the control network to remote cabinets and field junction boxes without additional gateways. The controller’s dual Ethernet ports — operating as an embedded switch — allow it to participate in a Device Level Ring (DLR) topology, providing media redundancy and sub-millisecond fault recovery that keeps production lines running even when a cable segment fails.

At the drive layer, the 1769-L18ERM-BB1B exchanges velocity references, torque feedback, and fault diagnostics with PowerFlex 525 and PowerFlex 755 variable frequency drives via Integrated Motion on EtherNet/IP. This tight integration eliminates the need for separate encoder feedback wiring and enables coordinated multi-axis motion profiles directly from Studio 5000 Logix Designer. For network switching infrastructure, the Stratix 5700 managed Ethernet switch provides VLAN segmentation, QoS prioritization, and IGMP snooping — ensuring that time-sensitive I/O traffic is never delayed by bulk data transfers.

Operator interaction is handled through 2711P PanelView Plus 7 HMI terminals connected over EtherNet/IP, where FactoryTalk View Site Edition delivers real-time tag browsing, alarm management, and trend displays. For peer-to-peer controller communication across larger systems, the 1769-L18ERM-BB1B uses MSG instructions to exchange data with higher-capacity controllers such as the 1769-L33ER CompactLogix or the 1756-L72S ControlLogix — enabling coordinated production sequencing across multiple control domains. At the network backbone level, the 1756-EN2T EtherNet/IP communication module in the ControlLogix chassis provides the high-bandwidth uplink to the plant SCADA server, where FactoryTalk Historian captures time-stamped process data for OEE analysis and regulatory compliance reporting.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible protocols and isolated network segments. Legacy serial devices running DF1, DH+, or Modbus RTU cannot natively communicate with modern EtherNet/IP infrastructure — creating data silos that prevent real-time visibility and remote diagnostics. The 1769-L18ERM-BB1B addresses this through its MSG instruction capability, which allows the controller to act as a protocol bridge: polling legacy devices via serial communication modules and republishing their data onto the EtherNet/IP network for consumption by SCADA, MES, and cloud analytics platforms.

For sites transitioning to transparent production lines, the 1769-L18ERM-BB1B enables granular machine-level data collection without requiring a full control system overhaul. By deploying this controller as a data concentrator alongside existing PLCs, engineers can aggregate I/O states, alarm histories, and production counts into a unified FactoryTalk data model — feeding dashboards that give plant managers real-time OEE metrics, shift production totals, and predictive maintenance alerts. Remote diagnostics are supported natively through Studio 5000’s online monitoring mode and FactoryTalk Remote Access, allowing engineers to interrogate controller tags, force I/O states, and upload/download programs without being physically present at the machine.

System expansion is equally straightforward: the 1769 Compact I/O platform supports hot-swappable modules, and the controller’s EtherNet/IP network can be extended with additional adapter nodes, drives, and safety modules as production requirements grow — all without changes to the core network architecture. Every unit shipped by ZYPLC undergoes functional communication testing, firmware verification, and I/O continuity checks before dispatch, backed by a 12-month warranty covering hardware defects and communication failures.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1769-L18ERM-BB1B on an EtherNet/IP network?
The 1769-L18ERM-BB1B supports Requested Packet Intervals (RPI) as low as 1 ms for I/O connections over EtherNet/IP, making it suitable for high-speed discrete control and coordinated motion applications. Actual latency depends on network topology, switch configuration, and the number of active connections.

Q2: Is the 1769-L18ERM-BB1B compatible with third-party SCADA systems beyond FactoryTalk?
Yes. Because EtherNet/IP is an open, CIP-based protocol, the 1769-L18ERM-BB1B is accessible from any OPC-DA or OPC-UA server with an EtherNet/IP driver — including Ignition SCADA, Wonderware System Platform, and Siemens WinCC via third-party communication drivers. RSLinx Classic or RSLinx Enterprise is required for native Rockwell Automation connectivity.

Q3: Can the 1769-L18ERM-BB1B maintain network stability in electrically noisy industrial environments?
The CompactLogix 5370 platform is designed to IEC 61131-2 environmental standards, with immunity to conducted and radiated EMI typical of motor drive and welding environments. Using shielded Cat5e/Cat6 cabling, proper grounding practices, and a managed switch such as the Stratix 5700 with storm control enabled will further ensure network stability in high-noise installations.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1769-L18ERM-BB1B?
Every 1769-L18ERM-BB1B unit supplied by ZYPLC is tested for EtherNet/IP communication, I/O module recognition, firmware integrity, and power-on self-diagnostics before shipment. All units carry a 12-month warranty covering hardware defects and communication faults from the date of delivery. Expedited global shipping with full tracking is available for urgent production requirements.
