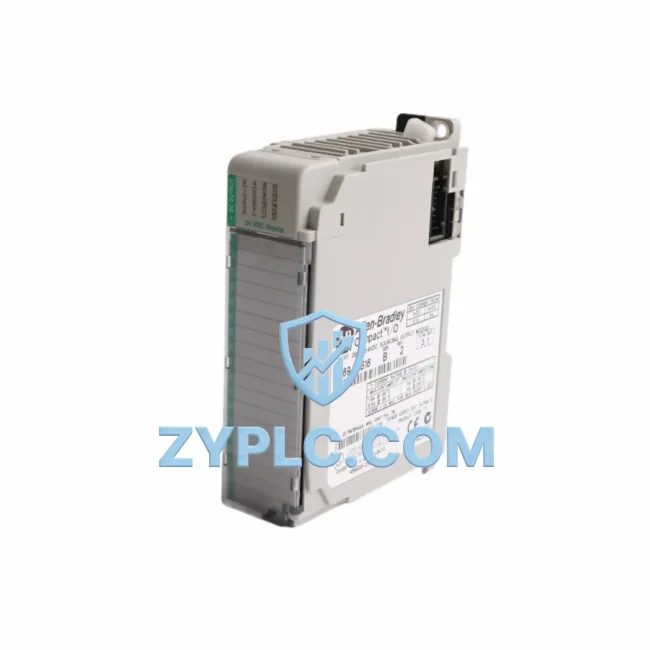

Allen-Bradley 1769-OB16 Industrial Network Interface for CompactLogix Systems

Allen-Bradley 1769-OB16: Industrial Data Link for CompactLogix Smart Factory Networks

The Allen-Bradley 1769-OB16 is a 16-point 24VDC sourcing digital output module engineered for the CompactLogix 1769 Compact I/O platform. Designed to serve as a critical node in the industrial data chain, the 1769-OB16 bridges the gap between PLC control logic and field-level actuators, solenoids, motor starters, and relay-driven devices. In modern smart factory environments where real-time data flow, network stability, and system transparency are non-negotiable, this module delivers the deterministic output performance that production lines demand.

Whether deployed in a standalone CompactLogix L3x controller cabinet or integrated into a distributed I/O architecture spanning multiple production zones, the 1769-OB16 maintains synchronised communication with the controller backplane at scan-cycle speeds that support time-sensitive control sequences. Its compact form factor and tool-free wiring design reduce installation time while ensuring long-term reliability in environments subject to vibration, temperature variation, and electrical noise.

Network Communication Table

Connected Automation Data Flow

In a fully connected CompactLogix automation architecture, the 1769-OB16 sits at the output end of a data chain that begins at the sensor and signal acquisition layer. Field sensors — including photoelectric sensors, proximity switches, and pressure transmitters — feed real-time process data into analog and digital input modules such as the Allen-Bradley 1769-IQ16 (16-point digital input) and 1769-IF4 (4-channel analog input). This data is processed by the CompactLogix controller — for example, a 1769-L33ER or 1769-L30ER — which executes ladder logic or function block programs and issues output commands to the 1769-OB16.

The controller communicates upstream via EtherNet/IP to a Stratix 5700 managed industrial Ethernet switch, which aggregates data from multiple I/O drops and controller nodes across the plant floor. This network backbone connects to SCADA servers running platforms such as Rockwell’s FactoryTalk View SE or third-party HMI systems, enabling operators to monitor output states, acknowledge alarms, and issue remote commands in real time. For sites requiring protocol conversion between legacy serial devices and modern Ethernet networks, a ProSoft Technology MVI56E-MCM Modbus communication module or a 1769-ASCII serial interface module can be inserted into the CompactLogix rack to bridge older field instruments into the same data flow.

In distributed architectures, the 1769-OB16 can be deployed as part of a remote I/O bank connected to the main controller via a 1769-ADN DeviceNet adapter or an EtherNet/IP remote I/O adapter such as the 1734-AENT POINT I/O adapter, extending digital output capability to remote panels without running individual signal cables back to the main cabinet. Variable frequency drives — such as the PowerFlex 525 or PowerFlex 755 — receive run/stop and speed reference commands that originate from the same controller logic that drives the 1769-OB16 outputs, ensuring coordinated motion and process control across the production line. Edge gateways and IoT data concentrators can tap into the EtherNet/IP network to forward production KPIs, output cycle counts, and fault logs to cloud-based MES or ERP platforms, completing the data loop from field device to enterprise system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control systems across different generations of hardware, each running its own proprietary protocol. A plant may have legacy Modbus RTU devices on the shop floor, DeviceNet sensors in the assembly area, and a modern EtherNet/IP backbone in the control room — with no native path for data to flow between them. The 1769-OB16, as part of the CompactLogix ecosystem, addresses this by operating within a controller platform that natively supports EtherNet/IP and can be extended with communication modules for Modbus, PROFIBUS, DeviceNet, and serial protocols, effectively acting as a protocol-agnostic output node in a heterogeneous network.

For sites struggling with data silos — where machine-level data never reaches the SCADA or MES layer — deploying the 1769-OB16 within a CompactLogix system that is connected to FactoryTalk Historian or a third-party OPC-UA server enables every output state change to be timestamped, logged, and made available for trend analysis and predictive maintenance. Remote diagnostics become possible through the controller’s built-in EtherNet/IP port, allowing maintenance engineers to monitor output module health, check point-level status, and force outputs for commissioning purposes from a remote engineering workstation without physical access to the panel.

Production line transparency is further enhanced by integrating the 1769-OB16 output states into HMI faceplates on PanelView Plus 7 terminals, giving operators a real-time visual map of which actuators are energised, which are in fault, and which are awaiting a permissive signal. This level of visibility reduces mean time to repair (MTTR) and supports continuous improvement initiatives by providing the data foundation for OEE calculations and downtime analysis. System expansion is straightforward: additional 1769 Compact I/O modules — including analog outputs, specialty modules, and communication adapters — can be added to the existing rack without controller replacement, protecting the capital investment as production requirements evolve.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1769-OB16 support for SCADA and HMI integration?
The 1769-OB16 itself is a backplane-connected I/O module and does not have an independent network port. It communicates through the CompactLogix controller, which supports EtherNet/IP natively and can be extended with add-on communication modules for Modbus TCP/RTU, DeviceNet, ControlNet, and PROFIBUS. SCADA and HMI systems connect to the controller via EtherNet/IP using OPC-DA, OPC-UA, or Rockwell’s proprietary RSLinx/FactoryTalk Linx drivers.

Q2: How does the 1769-OB16 perform in high-speed or time-sensitive control applications?
Output response time is governed by the CompactLogix controller’s RPI (Requested Packet Interval) and program scan time. In typical configurations with a 1769-L33ER controller, output update times of 1–10ms are achievable, making the 1769-OB16 suitable for conveyor sequencing, solenoid valve control, and motor starter applications where deterministic response is required. For motion-critical applications, Rockwell’s Kinetix servo drives with integrated EtherNet/IP are recommended alongside the 1769-OB16 for coordinated control.

Q3: Can the 1769-OB16 be used in a remote I/O configuration away from the main controller?
Yes. By pairing the 1769-OB16 with a 1769-ADN DeviceNet adapter or an EtherNet/IP remote I/O adapter, the module can be located in a remote panel up to the network’s maximum cable distance from the main controller. This is commonly used in large-footprint facilities such as automotive assembly plants, food processing lines, and water treatment facilities where running individual signal cables is impractical.

Q4: What warranty and quality assurance does ZYPLC provide for the 1769-OB16?
All Allen-Bradley 1769-OB16 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output point integrity and backplane communication before dispatch. Global stock availability supports fast delivery via DHL or FedEx, with lead times typically within 3–7 business days for in-stock units. For volume orders or urgent requirements, contact our sales team directly.
