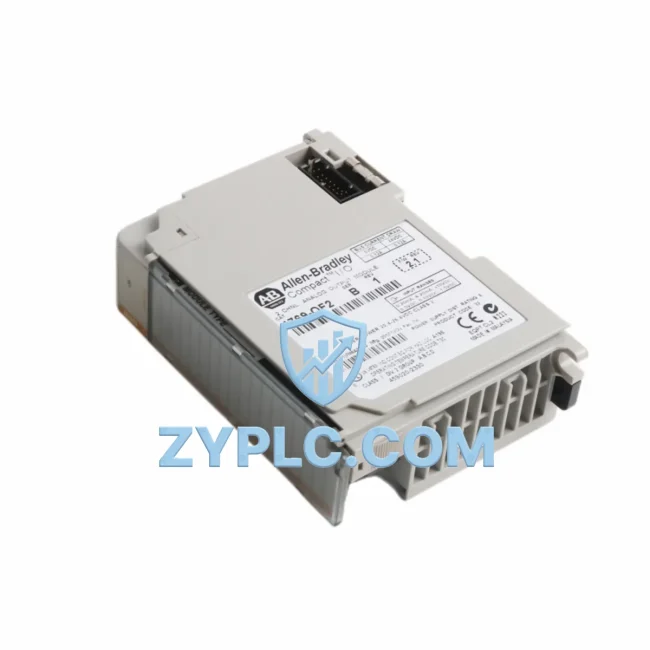

Allen-Bradley 1769-OF2 Industrial Network Interface for CompactLogix 1769 Systems

Allen-Bradley 1769-OF2: Industrial Data Link for CompactLogix 1769 Smart Factory Systems

The Allen-Bradley 1769-OF2 is a 2-channel analog output module engineered for the CompactLogix 1769 Series platform — one of Rockwell Automation’s most widely deployed modular PLC architectures in discrete and process manufacturing. Designed to bridge the gap between digital control logic and real-world field devices, the 1769-OF2 converts PLC-generated digital commands into precise analog signals (voltage or current), enabling seamless communication with variable frequency drives, control valves, proportional actuators, and process transmitters across the production floor.

In modern smart factory environments, the 1769-OF2 serves as a critical node in the industrial data chain. From signal conditioning at the field level to real-time setpoint delivery across SCADA and HMI platforms, this module ensures that control commands generated by the CompactLogix L-series processors — such as the 1769-L30ER or 1769-L33ER — are faithfully translated into analog output signals with high resolution and minimal latency. Its tight integration with the 1769 backplane eliminates the need for external signal converters, reducing wiring complexity and improving overall system reliability.

Network Communication Table

Connected Automation Data Flow

In a typical CompactLogix-based automation architecture, the 1769-OF2 sits at the intersection of the control layer and the field device layer. The data flow begins at the sensor and field instrument level — where devices such as pressure transmitters, flow meters, and temperature sensors feed real-time process values back to the CompactLogix processor via analog input modules like the 1769-IF4 or 1769-IF8. The processor executes the control logic and generates output commands, which the 1769-OF2 then converts into precise analog signals delivered to downstream actuators.

On the drive side, the 1769-OF2 provides speed reference signals to PowerFlex 525 and PowerFlex 755 variable frequency drives, enabling closed-loop speed and torque control without requiring additional signal conditioning hardware. For valve control applications, the module’s 4–20 mA output directly interfaces with electro-pneumatic positioners and proportional control valves, supporting continuous modulation in flow and pressure control loops.

At the network layer, the CompactLogix processor communicates upstream via EtherNet/IP to the plant’s SCADA system — typically running on FactoryTalk View SE or third-party platforms such as Ignition SCADA or Wonderware. The 1769-OF2’s output values are mapped as controller tags, making them fully visible and configurable from the HMI layer. Operators can monitor analog output status, adjust setpoints remotely, and receive alarm notifications when output values deviate from defined thresholds.

For distributed control architectures, the 1769-OF2 integrates naturally with remote I/O expansion via 1769-ECR end caps and 1734 POINT I/O modules connected over EtherNet/IP adapters such as the 1734-AENT. This allows the analog output function to be extended to remote panels and field junction boxes without running long analog signal cables — significantly reducing noise susceptibility and installation cost. Edge gateway devices, such as those running on the Stratix 5700 managed switch infrastructure, further ensure deterministic data delivery across the plant network.

The complete data chain — from field sensor through PLC logic, analog output, drive or valve response, and back to SCADA visualization — forms a closed-loop industrial communication architecture where the 1769-OF2 plays a foundational role in maintaining signal integrity and control precision.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation manufacturing environments is data isolation — where field devices, PLCs, drives, and supervisory systems operate on incompatible protocols or proprietary signal formats, preventing unified visibility and coordinated control. The Allen-Bradley 1769-OF2, as part of the CompactLogix 1769 ecosystem, directly addresses this challenge through its native integration with Rockwell Automation’s Integrated Architecture.

In plants where older analog control panels coexist with modern EtherNet/IP networks, the 1769-OF2 acts as a protocol bridge at the output layer — accepting digital commands from the CompactLogix processor (communicated via the 1769 backplane at high speed) and converting them to universally compatible analog signals that any field device can accept, regardless of its communication capability. This eliminates the need for standalone signal converters or gateway devices between the PLC and the actuator.

For production line transparency, the 1769-OF2’s output values are continuously logged as controller tags within Studio 5000 Logix Designer, enabling trend analysis, alarm management, and audit trail generation directly from the control system — without requiring a separate data historian. When integrated with FactoryTalk Historian or a third-party SCADA platform, these output values contribute to OEE calculations, energy monitoring dashboards, and predictive maintenance models.

Remote diagnostics are supported through the CompactLogix processor’s built-in EtherNet/IP port, allowing maintenance engineers to monitor the 1769-OF2’s output status, check for open-circuit or over-range fault conditions, and adjust output scaling — all from a remote workstation or mobile HMI without physical access to the control panel. This capability is especially valuable in hazardous or hard-to-reach installation environments.

System expansion is equally straightforward: additional 1769-OF2 modules can be added to the CompactLogix rack up to the maximum I/O capacity of the selected processor, and the system can be scaled further by adding remote I/O drops over EtherNet/IP. This modular scalability ensures that the control architecture can grow with production demands without requiring a complete system redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1769-OF2 support?
The 1769-OF2 communicates via the CompactLogix 1769 backplane, which supports EtherNet/IP, ControlNet, and DeviceNet at the processor level. The module itself outputs standard analog signals (0–10 VDC, ±10 VDC, 4–20 mA, 0–20 mA) that are universally compatible with drives, valves, and process instruments regardless of their digital communication protocol.

Q2: Is the 1769-OF2 compatible with SCADA and HMI systems?
Yes. The 1769-OF2 integrates fully with FactoryTalk View SE, FactoryTalk View ME, and third-party SCADA platforms via the CompactLogix processor’s EtherNet/IP connection. Output channel values are exposed as controller tags and can be monitored, trended, and alarmed from any connected HMI or SCADA workstation in real time.

Q3: How is network stability and output accuracy maintained under load?
The 1769-OF2 uses a 12-bit DAC with ±0.1% full-scale accuracy and includes built-in diagnostics for open-circuit and over-range fault detection. The 1769 backplane communication is deterministic and scan-cycle synchronized with the CompactLogix processor, ensuring that output updates are delivered within the controller’s configured RPI (Requested Packet Interval) without network-induced jitter.

Q4: What warranty and testing standards apply to this module?
Every 1769-OF2 unit supplied by ZYPLC is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify analog output accuracy, channel isolation, and backplane communication integrity. Units are sourced from verified supply channels and are inspected for firmware version compatibility prior to dispatch. Global shipping is available with full documentation support.
