Allen-Bradley 1771-ACNR15 Industrial Network Interface for PLC-5 Series

Allen-Bradley 1771-ACNR15 Industrial Network Interface for PLC-5 Series: Bridging the Industrial Data Link

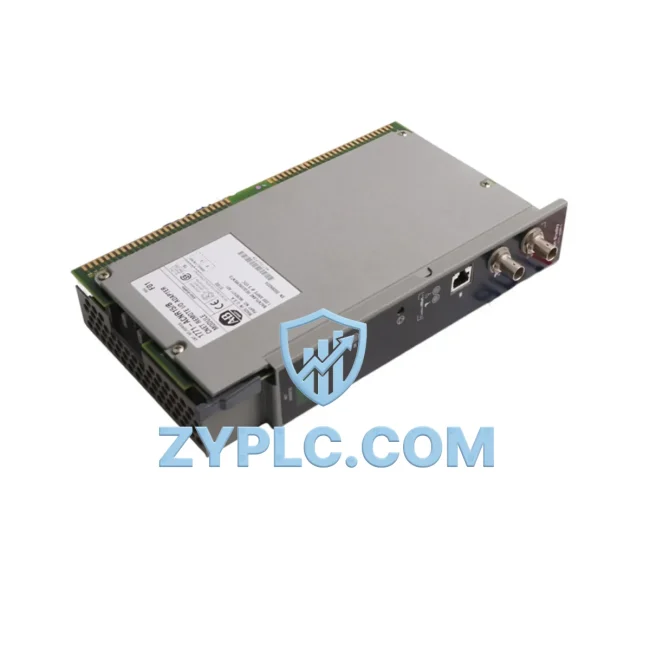

The Allen-Bradley 1771-ACNR15 is a ControlNet Remote I/O Adaptor engineered for seamless integration within PLC-5 Series control architectures. Designed to serve as a critical node in the industrial data chain, this module enables reliable, deterministic communication between field-level devices and supervisory control systems. Whether deployed in discrete manufacturing, process automation, or hybrid production environments, the 1771-ACNR15 delivers the protocol bridging, network stability, and real-time data throughput that modern smart factories demand.

In today’s connected industrial landscape, the ability to move data accurately and rapidly from sensors and actuators through PLCs to SCADA and MES platforms is not optional — it is foundational. The 1771-ACNR15 fulfills this role by acting as the communication backbone between the 1771 I/O chassis and the ControlNet network, ensuring that every signal — from a proximity sensor on a conveyor to a pressure transmitter in a process loop — reaches the PLC-5 processor and upstream systems without latency or data loss.

Network Communication Table

Connected Automation Data Flow

The 1771-ACNR15 sits at the intersection of field instrumentation and plant-level intelligence. In a typical smart factory deployment, the data flow begins at the sensor layer — thermocouples, flow meters, photoelectric sensors, and pressure transmitters connected to 1771 analog and digital I/O modules within the chassis. The 1771-ACNR15 adaptor collects this I/O data from the backplane and transmits it over the ControlNet network to the PLC-5 processor, such as the 1785-L80B or 1785-L60B, where ladder logic executes control decisions in real time.

From the PLC-5 processor, data travels upstream via the ControlNet backbone to a 1784-KTCX15 ControlNet interface card installed in the SCADA workstation, enabling RSView32 or FactoryTalk View SE to display live process values, trend historical data, and trigger alarm notifications. In parallel, the 1756-CNB ControlLogix ControlNet Bridge module can serve as a gateway between the legacy PLC-5 ControlNet segment and a newer ControlLogix L7x platform, allowing phased migration without disrupting production continuity.

For remote I/O expansion, the 1771-ACNR15 works in conjunction with additional 1771 I/O chassis populated with modules such as the 1771-IFE analog input module and 1771-OFE analog output module, extending the reach of the control system to remote skids, junction boxes, and field panels located hundreds of meters from the main control cabinet. Variable frequency drives — including Allen-Bradley PowerFlex 700 series — can be integrated into the same ControlNet segment, allowing the PLC-5 to issue speed references and read drive status without additional point-to-point wiring.

At the edge, a 1788-CN2DN ControlNet-to-DeviceNet Linking Device bridges the ControlNet backbone to DeviceNet field devices, enabling smart sensors, valve manifolds, and motor starters to participate in the same unified data architecture. This multi-layer connectivity — from field device to PLC to SCADA to MES — is precisely what the 1771-ACNR15 enables as the foundational network adaptor in the 1771 chassis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the condition where field devices, PLCs, and supervisory systems operate on incompatible protocols, preventing unified visibility and control. The 1771-ACNR15 directly addresses this by providing a standardized ControlNet interface for the 1771 I/O chassis, eliminating the proprietary Remote I/O (RIO) bottleneck that historically limited network scalability and diagnostic capability.

With ControlNet’s deterministic, time-scheduled communication model, the 1771-ACNR15 ensures that I/O data is delivered to the PLC-5 processor within guaranteed time windows — critical for motion control, safety interlocks, and process regulation applications where communication jitter is unacceptable. Unlike older RIO architectures, ControlNet supports both scheduled I/O transfers and unscheduled messaging on the same cable, enabling the PLC-5 to perform peer-to-peer messaging with other controllers while simultaneously scanning I/O.

For production line transparency, the 1771-ACNR15 enables SCADA systems to access granular I/O-level data — individual bit states, analog values, and module fault codes — that would otherwise be invisible to plant management systems. This data visibility supports OEE calculation, predictive maintenance scheduling, and real-time alarm management, transforming isolated field data into actionable production intelligence.

System expansion is equally straightforward: additional 1771 I/O chassis equipped with 1771-ACNR15 adaptors can be added to the ControlNet segment without rewiring the existing network, supporting phased capacity increases as production demands grow. Remote diagnostics via RSNetWorx for ControlNet allow engineers to monitor node health, verify scheduled connection status, and identify communication faults from the engineering workstation — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Every 1771-ACNR15 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify ControlNet communication integrity, backplane interface operation, and module self-diagnostics. All units are covered by a 12-month warranty and are available from verified inventory, ensuring fast delivery to support both planned maintenance and emergency replacement requirements.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1771-ACNR15 on a ControlNet network?
The 1771-ACNR15 operates on ControlNet’s deterministic scheduled communication model, where I/O data update rates are defined by the Network Update Time (NUT) configured in RSNetWorx for ControlNet. Typical NUT values range from 2 ms to 100 ms depending on network load and node count, providing predictable, low-latency I/O scanning suitable for high-speed control applications.

Q2: Is the 1771-ACNR15 compatible with both PLC-5 and ControlLogix platforms?
The 1771-ACNR15 is designed as a ControlNet adaptor for the 1771 I/O chassis and communicates natively with PLC-5 processors over ControlNet. It can also be accessed by ControlLogix platforms via a 1756-CNB ControlNet Bridge module, enabling ControlLogix controllers to own and scan 1771 I/O chassis as part of a migration or hybrid architecture strategy.

Q3: How does the 1771-ACNR15 support network stability in high-noise industrial environments?
ControlNet uses RG-6 coaxial cable with a robust physical layer designed for industrial EMI environments. The 1771-ACNR15 supports redundant ControlNet media (dual coax) configurations, providing automatic failover to the secondary cable in the event of a primary cable fault — ensuring continuous I/O communication even in electrically noisy plant environments such as welding cells, motor drive rooms, and high-voltage switchgear areas.

Q4: What warranty and testing does ZYPLC provide for the 1771-ACNR15?
All 1771-ACNR15 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including ControlNet communication verification and backplane interface checks. Units are sourced from verified inventory channels and are available for immediate dispatch to support both scheduled maintenance and urgent replacement needs. For pricing, availability, and technical support, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
