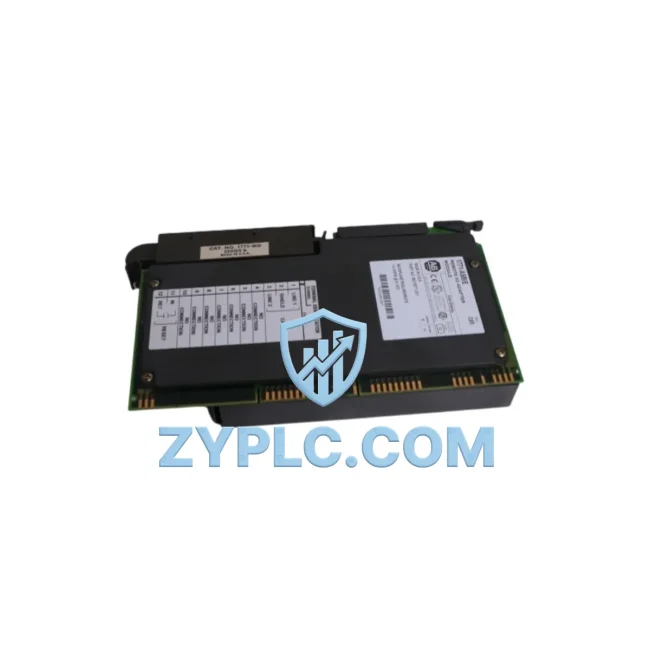

Allen-Bradley 1771-ASB/E Industrial Network Interface for 1771 Systems

Allen-Bradley 1771-ASB/E Industrial Network Interface for 1771 Systems: Bridging Field Devices and Smart Factory Data Flows

In modern industrial automation environments, seamless data connectivity between field-level devices and supervisory control systems is no longer optional — it is the foundation of operational efficiency. The Allen-Bradley 1771-ASB/E Remote I/O Adapter Module is engineered to serve as a critical communication bridge within the 1771 I/O chassis platform, enabling reliable, high-speed data exchange between PLC-5 processors, remote I/O racks, and upper-level SCADA and HMI systems. Whether deployed in discrete manufacturing, process control, or hybrid automation architectures, the 1771-ASB/E delivers the network stability and protocol compatibility that smart factory environments demand.

Network Communication Table

Connected Automation Data Flow

The 1771-ASB/E sits at the heart of a distributed I/O architecture, acting as the communication gateway between the PLC-5 processor — such as the 1785-L40B or 1785-L80B — and remote I/O racks installed across the plant floor. When a PLC-5 controller initiates a scan cycle, the 1771-ASB/E receives the I/O image data from discrete input modules like the 1771-IBD (16-point DC input) and transmits the corresponding output commands to modules such as the 1771-OBD (16-point DC output), all over the Remote I/O network link at selectable baud rates up to 230.4 Kbps.

In multi-rack configurations, the 1771-ASB/E enables the PLC-5 to address up to 32 remote I/O racks, dramatically extending the physical reach of the control system without sacrificing scan time performance. Analog signal acquisition is handled by modules such as the 1771-IFE (analog input) and 1771-OFE2 (analog output), whose real-time process values — temperature, pressure, flow rate — are continuously streamed through the 1771-ASB/E adapter back to the PLC-5 for closed-loop control decisions.

At the supervisory layer, the data collected by the PLC-5 is made available to SCADA platforms and HMI terminals via the Data Highway Plus network. A 1784-KTX communication card installed in the engineering workstation provides DH+ access for programming, diagnostics, and live data monitoring. Operator interface panels such as the 2711-T10C8 PanelView terminal connect to the DH+ network to display real-time process status, alarm conditions, and production KPIs — all sourced from the I/O data flowing through the 1771-ASB/E.

For facilities integrating legacy 1771-based systems with newer ControlLogix platforms, the 1756-DHRIO bridge module provides the protocol gateway function, translating between the ControlLogix backplane and the Remote I/O / DH+ networks. This allows the 1771-ASB/E and its associated I/O chassis to remain fully operational within a modernized network architecture, protecting the existing infrastructure investment while enabling connectivity to Ethernet-based SCADA systems via modules like the 1756-ENBT. The power supply backbone for the 1771 chassis is maintained by units such as the 1771-P7, ensuring stable voltage delivery to all communication and I/O modules throughout the data chain.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the inability to aggregate, monitor, and act on process data from distributed field devices in real time. The 1771-ASB/E directly addresses this challenge by providing a standardized Remote I/O communication link that unifies discrete and analog I/O data from multiple remote racks into a single, coherent data image accessible to the PLC-5 controller.

Protocol fragmentation is another common barrier. Many plant floors operate a mix of older Remote I/O devices alongside newer Ethernet-based systems. The 1771-ASB/E, when combined with appropriate gateway modules, enables protocol bridging that allows legacy RIO devices to participate in modern SCADA and MES data flows — eliminating the need for costly full-system replacements and enabling a phased modernization strategy.

Remote monitoring and diagnostics are equally critical. With the 1771-ASB/E maintaining a stable RIO link, maintenance engineers can use DH+ connected workstations to perform online diagnostics, monitor communication status, and identify faults at the module level without interrupting production. This transparency reduces mean time to repair (MTTR) and supports predictive maintenance initiatives by providing continuous visibility into the health of the remote I/O network.

Production line transparency is further enhanced by the ability to map I/O data directly into SCADA historian databases, enabling trend analysis, OEE calculation, and compliance reporting. System expansion is straightforward: additional 1771 I/O chassis can be added to the Remote I/O network by configuring new rack and group addresses on additional 1771-ASB/E adapters, scaling the control system without architectural redesign.

Every 1771-ASB/E unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying RIO link establishment, baud rate negotiation, and I/O data integrity. Units are shipped with a 12-month warranty, backed by in-stock inventory for fast global delivery to support both planned maintenance and emergency replacement requirements.

Industrial Connectivity FAQ

Q1: What baud rates does the 1771-ASB/E support, and how does baud rate selection affect network performance?
The 1771-ASB/E supports selectable baud rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps via DIP switch configuration. Higher baud rates reduce I/O scan time and improve real-time responsiveness, but require shorter cable runs and higher-quality shielded cable. For most plant-floor installations with cable lengths under 300 meters, 230.4 Kbps is recommended for optimal performance.

Q2: Is the 1771-ASB/E compatible with ControlLogix and CompactLogix platforms?
The 1771-ASB/E is natively designed for PLC-5 Remote I/O networks. Compatibility with ControlLogix is achieved through the 1756-DHRIO bridge module, which provides a gateway between the ControlLogix backplane and the Remote I/O / DH+ networks. Direct connection to CompactLogix requires a similar bridging solution. ZYPLC can advise on the appropriate gateway configuration for your specific architecture.

Q3: How does ZYPLC ensure the 1771-ASB/E is functional before shipment?
Each unit undergoes a pre-shipment functional test that verifies RIO communication link establishment, correct baud rate operation, and I/O data exchange integrity. Test records are maintained for quality traceability. All units are covered by a 12-month warranty from the date of shipment, with technical support available for installation and commissioning assistance.

Q4: Can the 1771-ASB/E support multi-rack I/O expansion, and what is the maximum network size?
Yes. The 1771-ASB/E supports multi-rack I/O expansion within the PLC-5 Remote I/O architecture. A single PLC-5 processor can address up to 32 remote I/O racks, each equipped with a 1771-ASB/E adapter. Each rack can house up to 16 I/O modules, providing substantial I/O capacity for large-scale process and discrete manufacturing applications. Network topology and cable routing should be planned according to Rockwell Automation’s Remote I/O installation guidelines.
