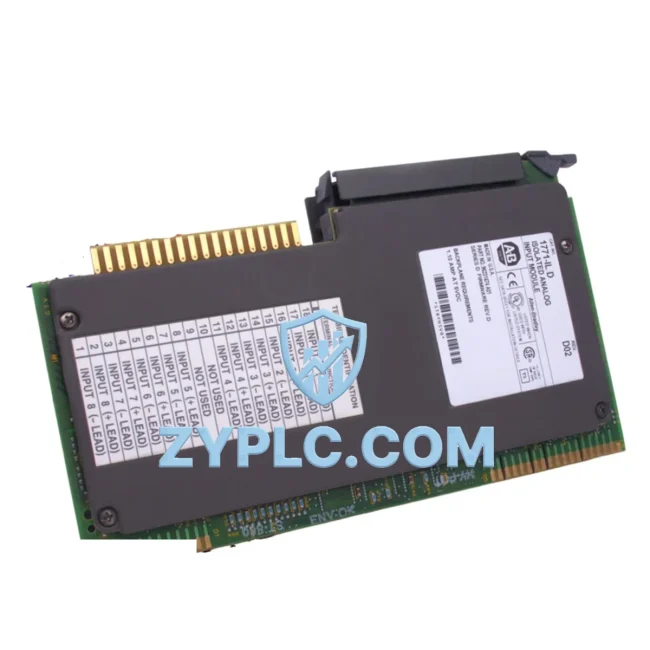

Allen-Bradley 1771-IL Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1771-IL Industrial Data Link: Smart Factory Connectivity for PLC-5 Systems

The Allen-Bradley 1771-IL Analog Input Module is a precision-engineered industrial signal acquisition component designed for seamless integration within the PLC-5 Series control architecture. As manufacturing environments evolve toward fully connected smart factory ecosystems, the 1771-IL serves as a critical bridge between field-level instrumentation and upper-layer control, monitoring, and data management systems. Whether deployed in process automation, discrete manufacturing, or hybrid production environments, this module delivers reliable, real-time analog signal conversion that underpins the entire industrial data chain.

Sourced directly from authorized supply channels, every 1771-IL unit offered by ZYPLC undergoes pre-shipment functional verification and is backed by a 12-month warranty, ensuring operational confidence from day one of deployment.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the Allen-Bradley 1771-IL sits at the foundation of the analog signal acquisition layer. Field instruments — including pressure transmitters, flow meters, temperature sensors, and level transducers — output 4–20mA signals that are captured directly by the 1771-IL module mounted within a 1771 I/O chassis. These analog values are then digitized and passed across the PLC-5 backplane to the central processor, where ladder logic programs execute real-time control decisions.

Within the same rack, the Allen-Bradley 1771-OFE Analog Output Module receives processed setpoints from the PLC-5 CPU and transmits corrective signals back to field actuators, closing the control loop. For applications requiring distributed I/O across large plant floors, the 1771-ASB Remote I/O Adapter extends the I/O chassis over a Remote I/O (RIO) network, allowing the PLC-5 processor to communicate with satellite racks located hundreds of meters away without signal degradation.

Data from the 1771-IL flows upward through the Data Highway Plus (DH+) network, where Allen-Bradley 1785-KA5 Communication Adapters or 1784-KTX Data Highway Interface Cards relay process values to SCADA workstations running FactoryTalk View SE or legacy RSView32 platforms. Operators gain real-time visibility into analog process variables — flow rates, temperatures, pressures — enabling immediate response to process deviations.

For facilities integrating modern Ethernet-based supervisory systems, ProSoft Technology MVI56-DFNT or similar protocol gateway modules bridge the DH+ network to EtherNet/IP, allowing the 1771-IL’s data to reach Ignition SCADA or Wonderware System Platform historians over standard TCP/IP infrastructure. This gateway architecture ensures that legacy PLC-5 analog data remains accessible within Industry 4.0 data pipelines without requiring full system replacement.

At the HMI layer, Allen-Bradley PanelView 1000 terminals connected via DH+ display live analog readings sourced from the 1771-IL, providing operators on the plant floor with intuitive process visualization. Alarm thresholds configured in the PLC-5 program trigger visual and audible alerts on the HMI when analog values exceed safe operating ranges, enabling rapid corrective action.

For remote diagnostic scenarios, FactoryTalk Remote Access or VPN-connected engineering workstations running RSLogix 5 allow maintenance engineers to monitor 1771-IL channel status, verify input scaling, and diagnose wiring faults without physical presence on-site — a critical capability for geographically distributed production facilities.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the inability to aggregate, contextualize, and act upon process data trapped within aging control architectures. The Allen-Bradley 1771-IL addresses this challenge at the signal acquisition level, but its true value is realized when integrated within a well-designed communication architecture.

Protocol Fragmentation: Many plants operate mixed environments where PLC-5 systems using DH+ and RIO coexist with newer ControlLogix platforms on EtherNet/IP. The 1771-IL’s data can be bridged across these protocol boundaries using gateway solutions, eliminating the need for costly parallel wiring infrastructure and enabling unified data visibility across heterogeneous control systems.

Production Line Transparency: By feeding accurate, real-time analog measurements into SCADA historians, the 1771-IL enables production managers to track KPIs such as OEE, yield rates, and energy consumption with granularity that was previously impossible with manual data collection. Trend analysis across multiple 1771-IL channels reveals process drift before it escalates into quality failures or unplanned downtime.

Remote Monitoring and Diagnostics: With appropriate network infrastructure, the 1771-IL’s channel data can be surfaced in cloud-based dashboards or MES platforms, enabling remote operations centers to monitor distributed plant assets in real time. Alarm escalation workflows can automatically notify maintenance teams via email or SMS when analog inputs exceed defined thresholds.

System Scalability: The modular architecture of the 1771 I/O system allows additional 1771-IL modules to be added to existing chassis as process monitoring requirements expand, providing a cost-effective path to increased analog input capacity without disrupting existing control logic or wiring.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1771-IL support for SCADA integration?
The 1771-IL itself is an analog input module that communicates over the PLC-5 backplane. SCADA integration is achieved through the PLC-5 processor’s Data Highway Plus (DH+) or Remote I/O (RIO) network connections. For EtherNet/IP-based SCADA systems, protocol gateway modules can bridge DH+ to modern Ethernet infrastructure, ensuring full compatibility with platforms such as FactoryTalk View SE, Ignition, and Wonderware.

Q2: How does the 1771-IL perform in high-noise industrial environments, and what is its network stability?
The 1771-IL is designed to operate reliably in electrically noisy industrial environments. Its 4–20mA current loop signal protocol is inherently noise-immune over long cable runs, making it suitable for applications where voltage-based signals would be susceptible to interference. Proper grounding, shielded cabling, and adherence to Rockwell Automation installation guidelines further enhance signal integrity and network stability.

Q3: Is the Allen-Bradley 1771-IL compatible with ControlLogix or CompactLogix systems?
The 1771-IL is natively designed for the PLC-5 / 1771 I/O chassis architecture. Direct installation in ControlLogix or CompactLogix chassis is not supported. However, integration with newer Rockwell platforms is achievable through the use of 1771-to-ControlLogix I/O adapter modules or by routing data through DH+ gateway bridges, allowing the 1771-IL to contribute analog data to unified ControlLogix-based control systems.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the 1771-IL?
Every Allen-Bradley 1771-IL unit supplied by ZYPLC undergoes functional verification testing prior to shipment, confirming channel operability, signal accuracy, and backplane communication integrity. All units are covered by a 12-month warranty from the date of delivery. In-stock inventory ensures rapid order fulfillment with global shipping capability, minimizing procurement lead times for maintenance and project requirements.
