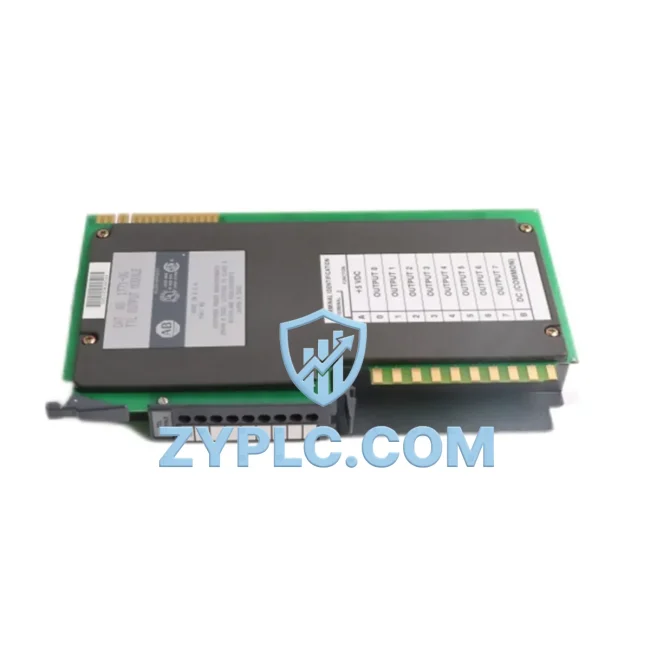

Allen-Bradley 1771-OG: Industrial Data Link for PLC-5 Smart Factory Systems
The Allen-Bradley 1771-OG is an 8-point, 120V AC digital output module engineered for the PLC-5 programmable controller platform. Designed to serve as a critical node in industrial network architectures, the 1771-OG bridges the gap between field-level actuators and upper-layer control systems — enabling reliable, real-time signal delivery across complex automation environments. Whether deployed in discrete manufacturing, process control, or hybrid smart factory applications, this module delivers the deterministic output performance that modern industrial connectivity demands.
In a fully integrated automation data chain, the 1771-OG operates downstream of the Allen-Bradley PLC-5 processor — receiving command signals from the controller backplane and translating them into 120V AC switching actions for motors, solenoids, contactors, and other field devices. This output module is a foundational component in any 1771 I/O chassis configuration, working in concert with input modules such as the 1771-IA and 1771-IB to form a complete digital I/O layer. The chassis itself connects to the PLC-5 processor via the 1771 I/O chassis backplane, which supports high-speed data exchange between the processor and all installed I/O modules.
Network Communication Table
| Attribute |
Specification |
| SKU / Part Number |
1771-OG |
| Brand / Manufacturer |
Allen-Bradley (Rockwell Automation) |
| Series |
PLC-5 / 1771 I/O |
| Module Type |
Digital Output Module |
| Output Points |
8-Point |
| Output Voltage |
120V AC |
| Communication Protocol |
1771 Backplane I/O Bus |
| Interface / Backplane |
1771 I/O Chassis Backplane |
| Network Compatibility |
ControlNet, DH+, Remote I/O (via PLC-5 processor) |
| System Application |
PLC-5 Discrete Output Control, SCADA Integration, HMI Interfacing |
| Product Category |
Industrial Digital Output Module |
| Origin |
USA |
| Warranty |
12-Month Warranty |
Connected Automation Data Flow
Understanding the 1771-OG’s role requires mapping the full industrial data flow in which it participates. At the field level, sensors and limit switches feed real-time process data into input modules — such as the Allen-Bradley 1771-IA (120V AC input) or 1771-IB (24V DC input) — which relay digital states back to the PLC-5 processor over the 1771 backplane bus. The PLC-5 processor executes ladder logic programs, evaluates input conditions, and issues output commands that are transmitted to the 1771-OG for actuation.
For facilities running ControlNet or Data Highway Plus (DH+) networks, the PLC-5 processor acts as a network node, exchanging data with remote I/O adapters, peer controllers, and SCADA systems. The 1771-OG’s output states are reflected in the PLC-5’s output image table, making them fully visible to supervisory systems via RSLinx Classic or FactoryTalk View SE — Rockwell Automation’s SCADA and HMI platform. Operators can monitor output status, acknowledge alarms, and initiate remote diagnostic routines without interrupting production.
In distributed control architectures, the 1771-OG may be installed in a remote 1771 I/O chassis connected to the PLC-5 via a 1771-ASB Remote I/O Adapter. This configuration extends the control network across large plant floors, allowing a single PLC-5 processor to manage multiple remote I/O drops — each housing combinations of digital output modules like the 1771-OG, analog output modules such as the 1771-OFE1, and specialty modules for motion or temperature control. Variable frequency drives (VFDs) and servo drives receiving start/stop commands from the 1771-OG can simultaneously report speed and fault data back to the PLC-5 via analog input modules or dedicated drive communication cards, creating a closed-loop data exchange that supports real-time process optimization.
At the edge layer, industrial gateways — such as those supporting EtherNet/IP to Modbus TCP conversion — can bridge legacy 1771-based systems with modern IIoT platforms, enabling the 1771-OG’s output data to be aggregated alongside data from newer Allen-Bradley CompactLogix or ControlLogix systems. This interoperability is essential for phased smart factory migrations where legacy PLC-5 infrastructure must coexist with next-generation control platforms.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, legacy controllers, and upper-layer systems operate in silos, unable to share process data in real time. The Allen-Bradley 1771-OG, as part of the PLC-5 and 1771 I/O ecosystem, directly addresses this challenge by providing a standardized, backplane-integrated output interface that is natively visible to the PLC-5’s data table and, by extension, to any SCADA or HMI system connected to the controller network.
For plants running mixed protocol environments — where some devices communicate over ControlNet, others over DH+, and newer equipment over EtherNet/IP — the PLC-5 processor with 1771 I/O provides a stable, protocol-agnostic control layer. Output commands generated by the PLC-5 logic are delivered to the 1771-OG regardless of the upstream network protocol, ensuring consistent field-level actuation even as the supervisory network evolves. This architecture supports production line transparency: every output state is logged, timestamped, and available for trend analysis, alarm management, and regulatory reporting.
Remote monitoring and diagnostics are further enhanced by the PLC-5’s ability to support online program monitoring via RSLogix 5 software. Maintenance engineers can remotely force output states, monitor rung conditions, and diagnose wiring faults without physical access to the control panel — reducing mean time to repair (MTTR) and minimizing unplanned downtime. As plants scale, additional 1771 I/O chassis and modules can be added to the existing Remote I/O network, providing a cost-effective path to system expansion without replacing the core PLC-5 infrastructure.
Industrial Connectivity FAQ
Q1: What communication protocols does the Allen-Bradley 1771-OG support?
The 1771-OG communicates via the 1771 I/O backplane bus, which is natively supported by the Allen-Bradley PLC-5 processor. The PLC-5 controller can be configured for ControlNet, Data Highway Plus (DH+), or Remote I/O network communication, making the 1771-OG’s output data accessible to SCADA systems, HMI terminals, and peer controllers across these protocols.
Q2: How does the 1771-OG perform in terms of network stability and communication latency?
The 1771-OG operates on the deterministic 1771 backplane bus, which provides consistent, low-latency I/O scanning synchronized with the PLC-5 processor’s scan cycle. Output update times are governed by the PLC-5 scan rate, typically in the range of 1–100ms depending on program complexity and I/O configuration — well within the requirements of most discrete manufacturing and process control applications.
Q3: Can the 1771-OG be integrated into modern SCADA and IIoT systems?
Yes. Through the PLC-5 processor’s network interfaces and industrial gateway devices supporting EtherNet/IP or Modbus TCP bridging, the 1771-OG’s output states can be surfaced to modern SCADA platforms, MES systems, and IIoT data aggregators. This enables legacy 1771-based systems to participate in smart factory data architectures without requiring full hardware replacement.
Q4: What warranty and quality assurance does ZYPLC provide for the 1771-OG?
Every Allen-Bradley 1771-OG supplied by ZYPLC is covered by a 12-month warranty. Prior to shipment, each unit undergoes functional verification testing to confirm output switching performance and backplane interface integrity. ZYPLC maintains verified inventory of the 1771-OG and supports global logistics via DHL and FedEx, with typical lead times available upon inquiry.
