Allen-Bradley 1771-OM Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1771-OM Industrial Network Interface for PLC-5 Systems: Bridging Field Devices and Smart Factory Data Links

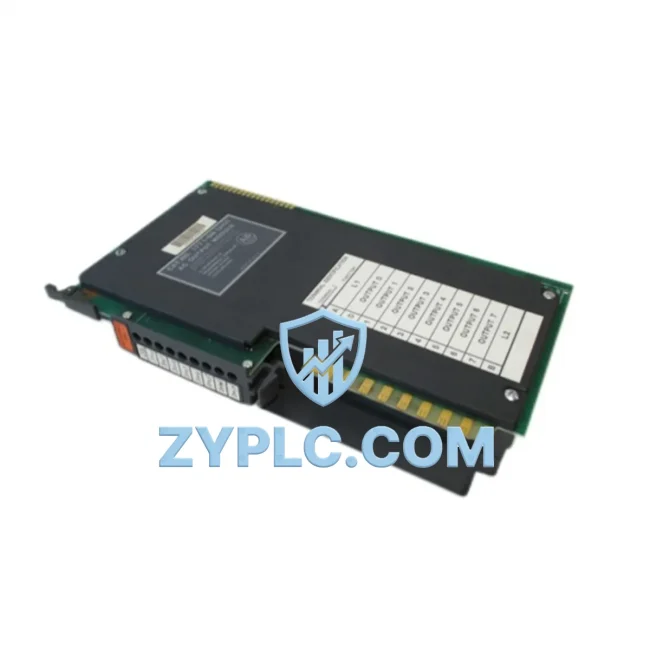

The Allen-Bradley 1771-OM Digital Output Module is a core component in Rockwell Automation’s PLC-5 platform, engineered to deliver reliable discrete output control across demanding industrial environments. Designed for seamless integration within the 1771 I/O chassis, this module serves as a critical node in the industrial data link — connecting PLC-5 processors to field actuators, motor starters, solenoid valves, and relay-driven loads. In modern smart factory architectures, the 1771-OM enables deterministic output switching that underpins real-time process control, SCADA visibility, and remote diagnostic capability across the entire automation network.

Whether deployed in automotive assembly, oil and gas processing, water treatment, or discrete manufacturing, the 1771-OM provides the output density and signal integrity required to maintain continuous production uptime. Its compatibility with the broader Allen-Bradley 1771 I/O family — including analog input modules, communication adapters, and specialty function modules — makes it a versatile building block for both legacy system maintenance and phased modernization projects.

Network Communication Table

Connected Automation Data Flow

In a fully integrated PLC-5 automation architecture, the 1771-OM sits at the intersection of command execution and field-level actuation. The data flow begins at the PLC-5 processor — such as the Allen-Bradley 1785-L40B or 1785-L80B — which executes ladder logic and writes output states to the 1771 I/O chassis backplane. The 1771-OM receives these discrete commands and drives field devices including motor contactors, pneumatic solenoids, and indicator lamps with precise timing and signal integrity.

Upstream, the PLC-5 processor communicates over Data Highway Plus (DH+) to SCADA systems and HMI terminals. The Allen-Bradley 1771-KE communication adapter bridges the 1771 chassis to the DH+ network, enabling real-time data exchange with operator workstations running RSView32 or FactoryTalk View SE. For sites requiring Ethernet/IP connectivity, the 1756-DHRIO gateway module translates DH+ traffic to modern EtherNet/IP networks, allowing the legacy PLC-5 system to integrate with contemporary MES and cloud-based analytics platforms.

On the input side, field sensors — including Allen-Bradley 872C proximity sensors and 1771-IA2 AC input modules — feed process data back to the PLC-5 processor, which evaluates conditions and triggers the 1771-OM outputs accordingly. For remote I/O applications, the 1771-ASB Remote I/O Adapter extends the 1771 chassis across long cable runs, enabling distributed output control in large plant layouts without sacrificing scan time performance.

In drive-integrated applications, the 1771-OM output signals interface with Allen-Bradley PowerFlex 700 variable frequency drives via hardwired discrete I/O, providing start/stop, direction, and fault reset commands. This discrete control layer complements the drive’s own DeviceNet or EtherNet/IP communication channel, creating a redundant control path that enhances system reliability. For edge computing and remote diagnostics, Moxa industrial Ethernet switches and edge gateways aggregate data from multiple PLC-5 nodes, forwarding real-time output status and alarm events to centralized SCADA dashboards and remote monitoring portals.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating PLC-5-based systems face a common challenge: protocol fragmentation and data isolation between legacy control layers and modern supervisory systems. The 1771-OM, as part of the Allen-Bradley 1771 I/O ecosystem, addresses this by providing a stable, well-documented output interface that bridges the gap between aging field infrastructure and contemporary network architectures.

Protocol Unification: Sites running mixed networks — DH+, Remote I/O, and EtherNet/IP — can leverage communication gateways such as the ProSoft MVI56-DFCM or the 1756-DHRIO to translate between protocols without replacing the existing PLC-5 control logic. The 1771-OM continues to execute output commands reliably while upstream systems gain visibility through modern OPC-UA or MQTT data bridges.

Eliminating Data Silos: By integrating the 1771-OM output status into SCADA platforms like Ignition or WonderWare, plant engineers gain real-time transparency into output states, cycle counts, and fault conditions — data that was previously locked within the PLC-5 processor and inaccessible to enterprise systems. This visibility supports predictive maintenance, OEE calculation, and production reporting without requiring a full control system migration.

Remote Monitoring and Diagnostics: Through DH+ network connectivity and SCADA integration, maintenance teams can monitor 1771-OM output status remotely, receive alarm notifications for output faults or load failures, and perform diagnostic checks without physical access to the control panel. This capability is especially valuable for unmanned substations, remote pump stations, and multi-site manufacturing operations.

Production Line Transparency and System Expansion: The modular nature of the 1771 I/O chassis allows additional output modules to be added as production lines expand, without disrupting existing control logic. The 1771-OM’s compatibility with the full range of 1771 specialty modules — including PID, high-speed counter, and communication modules — ensures that the control architecture can evolve alongside operational requirements.

Pre-Shipment Testing and Inventory Assurance: Every 1771-OM unit supplied by ZYPLC undergoes functional testing prior to dispatch, verifying output switching performance, backplane communication integrity, and LED status indication. With in-stock inventory and global DHL/FedEx shipping, critical replacement modules can be delivered to site within 24–72 hours, minimizing unplanned downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1771-OM support in a PLC-5 network?
The 1771-OM operates as a discrete output module within the 1771 I/O chassis and communicates with the PLC-5 processor via the chassis backplane. The PLC-5 processor itself supports Data Highway Plus (DH+) and Remote I/O (RIO) protocols natively. For EtherNet/IP or ControlNet integration, communication gateway modules such as the 1756-DHRIO or 1771-KE are used to bridge the 1771 system to modern network architectures.

Q2: Is the 1771-OM compatible with current SCADA and HMI platforms?
Yes. When the PLC-5 processor is connected to a DH+ network via the appropriate communication adapter, SCADA platforms including FactoryTalk View SE, RSView32, Ignition, and WonderWare can read and write to PLC-5 data files — including output image table data associated with the 1771-OM. This enables real-time output monitoring, alarm management, and historical data logging without replacing the existing control system.

Q3: How does ZYPLC ensure network stability and output reliability for the 1771-OM?
Each 1771-OM unit is functionally tested before shipment, including backplane communication verification and output switching tests under load. ZYPLC sources modules from verified supply chains and provides a 12-month warranty covering manufacturing defects and communication failures. Technical support is available to assist with installation, network configuration, and integration troubleshooting.

Q4: Can the 1771-OM be used in an expanded or multi-chassis PLC-5 system?
Yes. The 1771 I/O chassis supports multiple output modules per chassis, and multiple chassis can be connected via Remote I/O (RIO) links to a single PLC-5 processor. This architecture supports large-scale distributed control systems with hundreds of I/O points, making the 1771-OM suitable for both compact machine control and plant-wide automation networks. System expansion is achieved by adding chassis and modules without modifying the core PLC-5 control program.
