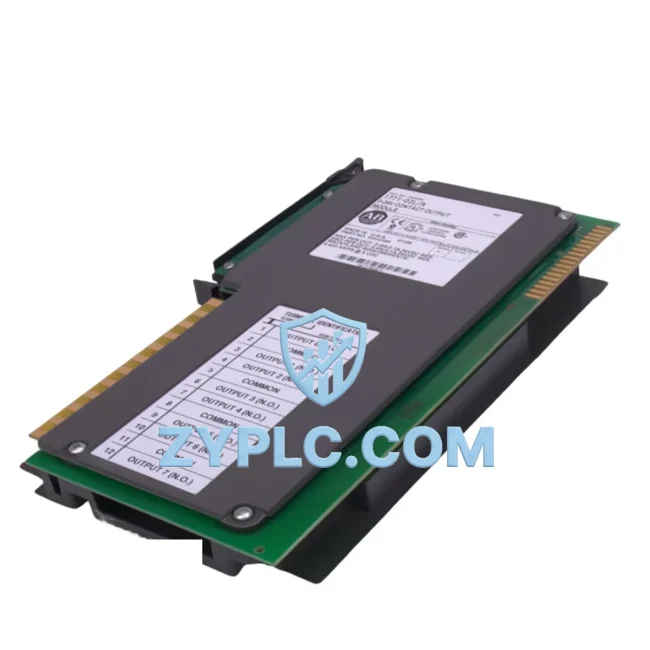

Allen-Bradley 1771-OZL Digital Output Module for PLC-5 Systems

Allen-Bradley 1771-OZL: Industrial Data Link for PLC-5 Smart Factory Networks

The Allen-Bradley 1771-OZL Digital Output Module is a field-proven industrial network interface engineered for seamless integration within PLC-5 Series control architectures. Designed to bridge the gap between field-level devices and upper-layer automation systems, the 1771-OZL delivers reliable discrete output control across demanding industrial environments — from automotive assembly lines to process manufacturing facilities. Its robust construction and deterministic communication behavior make it a cornerstone component in smart factory deployments where data integrity, real-time responsiveness, and system uptime are non-negotiable.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory environment, the 1771-OZL operates as a critical output node within the PLC-5 rack, receiving command signals from the Allen-Bradley PLC-5/40 or PLC-5/80 processor and translating them into discrete switching actions for field actuators, solenoid valves, motor starters, and indicator panels. The data flow originates at the SCADA layer — typically a Wonderware InTouch or FactoryTalk View SE HMI station — where operators issue control commands that propagate down through the Data Highway Plus (DH+) network backbone.

These commands traverse the 1785-KA5 communication adapter, which serves as the DH+ gateway between the upper control network and the 1771 I/O chassis. Within the chassis, the 1771-OZL receives its output register data from the PLC-5 processor via the backplane, executing switching cycles with millisecond-level determinism. Alongside the 1771-OZL, companion modules such as the 1771-IB16 digital input module and the 1771-OA16 AC output module populate adjacent chassis slots, forming a complete discrete I/O subsystem that feeds real-time field status back to the processor.

For remote I/O extensions across the plant floor, the 1771-ASB Remote I/O Adapter Module connects satellite 1771 chassis to the main PLC-5 rack over the Remote I/O (RIO) coaxial link, enabling the 1771-OZL’s output data to be mirrored or extended to distributed control panels up to 3,000 meters away. This architecture supports multi-drop topologies where a single PLC-5 processor manages dozens of remote I/O racks — each containing output modules like the 1771-OZL — without sacrificing scan time performance.

At the drive integration layer, Allen-Bradley PowerFlex 700 variable frequency drives receive run/stop and speed-reference commands routed through the PLC-5 output registers, with the 1771-OZL providing the discrete enable signals that arm the drive’s hardware interlock circuits. Proximity sensors and photoelectric detectors connected to upstream 1771-IB input modules generate the process feedback that the PLC-5 ladder logic evaluates before asserting the 1771-OZL output bits — closing the real-time control loop between sensor, controller, and actuator.

Edge gateway devices such as the Moxa MGate MB3270 or Kepware KEPServerEX OPC-UA server aggregate tag data from the PLC-5 via DH+ and publish it to MES and ERP platforms, enabling production KPI dashboards to reflect the live state of every output channel on the 1771-OZL. This end-to-end data chain — from field device through PLC-5 backplane, across DH+ network, through SCADA, and up to enterprise systems — exemplifies the connected automation architecture that the 1771-OZL was designed to support.

Solving Data Isolation in Industrial Sites

Legacy PLC-5 installations frequently suffer from protocol fragmentation: older Remote I/O segments cannot natively communicate with modern EtherNet/IP infrastructure, creating data silos that obscure production visibility and complicate maintenance workflows. The 1771-OZL, when paired with protocol gateway solutions such as the 1756-DHRIO ControlLogix bridge or third-party DH+ to EtherNet/IP converters, enables these legacy output nodes to participate in unified network architectures without requiring a full control system migration.

Remote monitoring challenges are addressed by routing 1771-OZL output status bits through the PLC-5 data table to SCADA historians, where alarm thresholds trigger automated notifications when output channels fail to respond within expected cycle windows — a common indicator of field wiring faults or module degradation. This remote diagnostic capability reduces unplanned downtime by enabling maintenance teams to identify and isolate faults before they escalate to production stoppages.

Production line transparency is further enhanced by mapping 1771-OZL output states to OEE calculation engines within FactoryTalk Metrics or equivalent MES platforms, providing shift supervisors with real-time availability data segmented by machine zone. System expansion is supported through the modular 1771 chassis architecture: additional output modules can be inserted into vacant chassis slots or new remote chassis added to the RIO network without modifying the existing PLC-5 program structure, protecting capital investment in proven control logic while scaling capacity to meet production growth.

Every 1771-OZL unit supplied by ZYPLC undergoes pre-shipment functional verification, including output channel continuity testing and backplane communication checks, ensuring that modules arrive ready for immediate installation. All units are covered by a 12-month warranty and supported by in-stock inventory for rapid order fulfillment.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1771-OZL support?
The 1771-OZL communicates via the 1771 I/O chassis backplane, which interfaces with the PLC-5 processor over its internal data highway. The PLC-5 system supports Data Highway Plus (DH+) and Remote I/O (RIO) protocols for network-level communication, allowing the 1771-OZL’s output data to be accessed by SCADA systems, HMI terminals, and peer PLC-5 controllers across the plant network.

Q2: Is the 1771-OZL compatible with modern EtherNet/IP or ControlLogix systems?
The 1771-OZL is a native PLC-5 / 1771 I/O platform module and does not directly support EtherNet/IP. However, it can be integrated into modern network architectures using gateway modules such as the 1756-DHRIO or 1785-KA5 adapter, which bridge DH+ and Remote I/O segments to ControlLogix or EtherNet/IP backbones, enabling legacy and modern systems to coexist within a unified SCADA environment.

Q3: How does ZYPLC ensure the 1771-OZL is functional before shipment?
Each unit undergoes pre-shipment testing that includes output channel activation verification, backplane signal integrity checks, and visual inspection for component condition. Units that pass all test criteria are packaged with anti-static protection and shipped via DHL or FedEx express services with full export documentation. A 12-month warranty covers all supplied modules against manufacturing defects and premature failure.

Q4: Can the 1771-OZL be used in a system expansion without reprogramming the PLC-5?
Yes. The modular 1771 chassis architecture allows additional output modules to be added to vacant chassis slots or new remote I/O chassis to be appended to the RIO network. Provided the PLC-5 program’s I/O configuration is updated to recognize the new rack/slot address, no changes to existing ladder logic rungs are required, making the 1771-OZL an efficient choice for incremental capacity expansion in established control systems.
