Allen-Bradley 1771-P2 Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1771-P2: Industrial Data Link and Smart Factory Power Connectivity for PLC-5 Systems

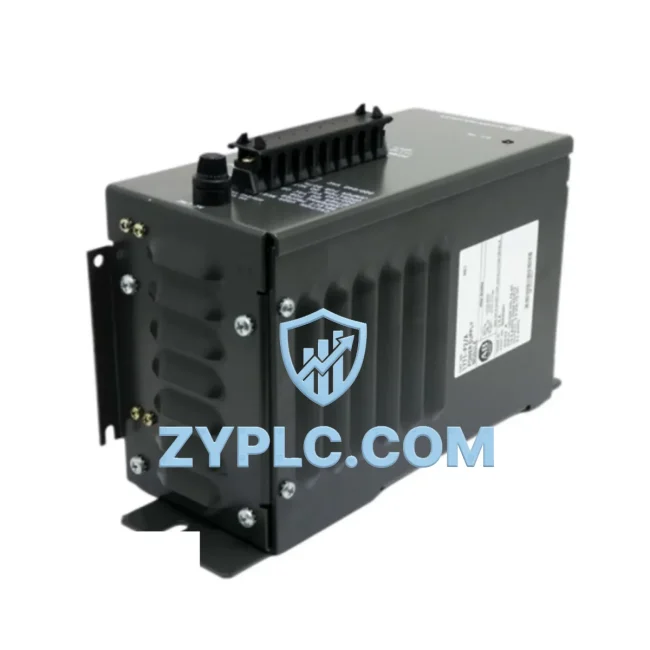

The Allen-Bradley 1771-P2 Auxiliary Power Supply is a critical infrastructure component engineered to sustain uninterrupted power delivery across the Allen-Bradley PLC-5 I/O chassis, enabling stable, high-availability industrial network communication in demanding manufacturing and process automation environments. As smart factories evolve toward fully integrated data architectures, the 1771-P2 serves as the foundational power backbone that keeps field devices, communication modules, and remote I/O nodes continuously online — ensuring that every data packet traversing the industrial network arrives with precision and without interruption.

In modern industrial automation, power stability is inseparable from network reliability. The 1771-P2 auxiliary power supply extends the power capacity of the PLC-5 chassis, allowing engineers to populate additional I/O modules, communication adapters, and specialty cards without risking brownout conditions or data transmission errors. Whether deployed in a discrete manufacturing cell, a continuous process line, or a hybrid SCADA-driven facility, the 1771-P2 ensures that the entire control and communication stack — from signal acquisition at the sensor level to data aggregation at the supervisory layer — operates within defined electrical tolerances.

Network Communication Table

Connected Automation Data Flow

The 1771-P2 sits at the heart of the PLC-5 chassis power architecture, directly enabling the stable operation of every communication and I/O module installed in the 1771 backplane. In a typical smart factory deployment, field-level sensors — including pressure transmitters, flow meters, and proximity switches — feed analog and digital signals into 1771-IFE Ethernet Interface modules and 1771-ASB Remote I/O Adapter modules housed within the same chassis. The 1771-P2 ensures these modules receive clean, regulated power, preventing signal noise and data corruption at the point of acquisition.

Moving up the data chain, the Allen-Bradley 1785-L80E PLC-5/80E processor — often co-located in the same rack — relies on auxiliary power from the 1771-P2 to sustain its Data Highway Plus (DH+) communication link to upstream SCADA servers running RSView32 or FactoryTalk View SE. This DH+ backbone carries real-time process data, alarm states, and diagnostic messages between the PLC-5 controller and the supervisory layer, where operators monitor production KPIs and respond to process deviations.

For facilities integrating legacy PLC-5 systems with modern Ethernet-based architectures, the 1761-NET-DNI DeviceNet Interface and 1770-KFD DH+ to RS-232 Gateway modules are frequently deployed alongside the 1771-P2-powered chassis to bridge protocol gaps between older Remote I/O (RIO) networks and contemporary EtherNet/IP infrastructure. The 1771-P2’s auxiliary power capacity accommodates these gateway modules without requiring chassis redesign, making it an essential enabler of phased modernization strategies.

At the drive and motion layer, PowerFlex 700 variable frequency drives connected via DeviceNet or ControlNet receive setpoint commands and return speed feedback through communication modules powered by the 1771-P2 chassis supply. Similarly, PanelView Plus 6 HMI terminals connected over DH+ or EtherNet/IP display real-time process data sourced from PLC-5 registers, with the 1771-P2 ensuring the PLC-5 processor and its communication cards remain energized during peak production loads.

In remote I/O architectures, 1771-SN Scanner Modules extend the PLC-5’s I/O reach across the plant floor, connecting distributed 1794 FLEX I/O drops and remote sensor clusters back to the central processor. The 1771-P2 auxiliary supply prevents voltage sag on the chassis backplane when multiple scanner and communication modules are simultaneously active, maintaining deterministic scan cycle times and reliable network polling intervals critical for process control integrity.

Edge computing nodes — such as Rockwell Automation FactoryTalk Edge Gateway appliances — aggregate data from the PLC-5 network and push structured datasets to cloud-based MES and ERP platforms. The uninterrupted power provided by the 1771-P2 ensures that the PLC-5 data source remains continuously available to these edge nodes, eliminating gaps in production data that would otherwise compromise OEE calculations and predictive maintenance algorithms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where field devices, PLCs, and supervisory systems operate on incompatible protocols, preventing unified visibility across the production floor. The Allen-Bradley 1771-P2, by sustaining the full operational capacity of the PLC-5 chassis, directly addresses this challenge by enabling the simultaneous deployment of multiple protocol-bridging modules within a single rack.

Facilities running mixed networks — where older Remote I/O (RIO) segments coexist with newer EtherNet/IP or ControlNet backbones — can use the 1771-P2’s auxiliary power to support 1771-ACN15 ControlNet Adapter modules alongside legacy RIO scanners, effectively creating a unified data pathway from the oldest field device to the most modern cloud analytics platform. This eliminates the need for costly full-system replacements and allows phased migration without production downtime.

Remote monitoring and diagnostics are equally enhanced by the 1771-P2’s role in the power architecture. When the chassis supply is stable and auxiliary power is correctly provisioned, RSLinx Classic and FactoryTalk Diagnostics tools can maintain persistent connections to the PLC-5 processor, enabling remote engineers to perform online edits, monitor I/O status, and diagnose communication faults without dispatching field technicians. This capability is particularly valuable in geographically distributed facilities where travel costs and response times are significant operational constraints.

Production line transparency — the ability to see real-time status of every machine, conveyor, and process unit from a central SCADA dashboard — depends on the continuous availability of the PLC-5 communication stack. The 1771-P2 ensures that power-related interruptions do not create blind spots in the supervisory view, maintaining the data integrity required for accurate OEE reporting, shift-level production tracking, and regulatory compliance documentation.

System scalability is another area where the 1771-P2 delivers measurable value. As production requirements grow and additional I/O points, communication modules, or specialty function cards are added to the PLC-5 chassis, the auxiliary power supply absorbs the incremental load without requiring chassis replacement. This forward-compatible power architecture protects the capital investment in existing PLC-5 infrastructure while accommodating the expanding data acquisition and network communication demands of Industry 4.0 initiatives.

Industrial Connectivity FAQ

Q1: Does the Allen-Bradley 1771-P2 introduce any communication latency on the DH+ or Remote I/O network?
No. The 1771-P2 is a power supply module, not a communication device, and does not participate in network arbitration or data routing. Its role is to provide stable DC power to the chassis backplane, which indirectly supports low-latency communication by preventing voltage-induced resets or module dropouts that would cause network retries and scan cycle delays. Properly provisioned auxiliary power is a prerequisite for deterministic network performance on DH+ and RIO links.

Q2: Is the 1771-P2 compatible with all PLC-5 processor variants and communication modules?
The 1771-P2 is designed for use within the Allen-Bradley 1771 I/O chassis platform and is compatible with the full range of PLC-5 processors, including the 1785-L20, 1785-L40, 1785-L60, and 1785-L80E variants. It supports co-installation with DH+ communication modules, ControlNet adapters, Remote I/O scanners, and Ethernet interface cards within the same chassis, provided total power consumption remains within the combined supply rating of the primary and auxiliary power modules.

Q3: How does the 1771-P2 support network stability in high-density I/O chassis configurations?
In chassis configurations where multiple communication-intensive modules — such as RIO scanners, ControlNet adapters, and Ethernet bridges — are installed alongside analog and digital I/O cards, the aggregate current draw can exceed the capacity of the primary power supply alone. The 1771-P2 auxiliary supply distributes the load across two power sources, preventing backplane voltage sag that would otherwise cause intermittent module faults, network dropouts, or processor watchdog trips. This dual-supply architecture is the recommended configuration for high-density PLC-5 chassis deployments in mission-critical process control applications.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 1771-P2?
Every Allen-Bradley 1771-P2 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm output voltage regulation, backplane connector integrity, and thermal performance within specification. Units are shipped via DHL or FedEx with full export documentation, ensuring compliance with international trade regulations. For volume orders or urgent requirements, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for expedited processing.
