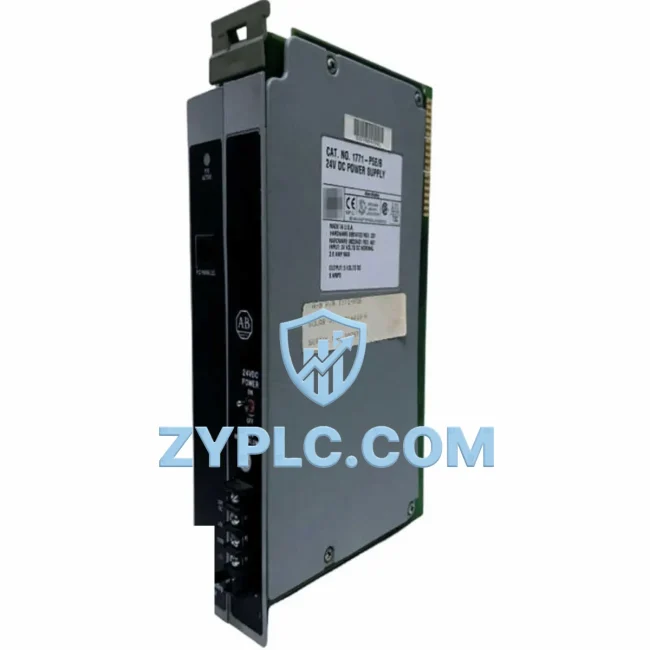

Allen-Bradley 1771-P5E Industrial Power Supply for PLC-5 Systems

Allen-Bradley 1771-P5E: Industrial Power Supply for PLC-5 Data Link Infrastructure

The Allen-Bradley 1771-P5E is a high-reliability industrial power supply engineered for the PLC-5 programmable controller platform, delivering stable, conditioned DC power to the 1771 I/O chassis backplane in demanding manufacturing and process automation environments. As the backbone of the PLC-5 control architecture, the 1771-P5E ensures uninterrupted power delivery to every I/O module seated in the chassis — from digital input cards reading field sensor signals to analog output modules commanding variable frequency drives and actuators. In smart factory deployments where data continuity is non-negotiable, a stable power foundation is the first link in the industrial data chain.

In a typical PLC-5 automation cell, the 1771-P5E powers the chassis that houses communication modules such as the 1771-KGM (Data Highway Plus gateway) and 1771-SDN (DeviceNet Scanner), enabling the PLC-5 processor to exchange real-time data across multiple network layers simultaneously. Field devices — including photoelectric sensors, pressure transmitters, and proximity switches — feed signal data into 1771 digital and analog I/O modules, which the PLC-5 processor scans cyclically. The 1771-P5E sustains the electrical integrity of this scan cycle, preventing voltage sag events that could corrupt I/O data tables or trigger nuisance faults in the control program.

Network Communication Table

Connected Automation Data Flow

Understanding the 1771-P5E’s role requires tracing the full data flow of a PLC-5 automation system. At the field level, sensors and actuators connect to 1771-IB16 digital input modules and 1771-OB16 digital output modules mounted in the 1771 chassis. The 1771-P5E powers these modules continuously, ensuring that every field signal — from a conveyor belt encoder pulse to a tank level transmitter — is accurately captured and written to the PLC-5 data table without interruption.

The PLC-5 processor communicates upstream to SCADA and HMI systems via the Data Highway Plus (DH+) network, using the 1784-KTX or 1784-PCMK communication cards installed in the engineering workstation. Operators monitoring the line from a PanelView 1000 or PanelView Plus 700 HMI terminal receive live process data — flow rates, temperatures, motor speeds — all sourced from the PLC-5 data table that the 1771-P5E keeps energized. When the system is extended to include remote I/O racks via the 1771-ASB Remote I/O Adapter, the power supply in each remote chassis must equally meet the load demands of the connected modules, making the 1771-P5E a recurring component across multi-rack installations.

For facilities integrating legacy PLC-5 systems with modern EtherNet/IP infrastructure, a 1756-ENBT EtherNet/IP bridge module installed in a ControlLogix chassis can serve as a protocol gateway, routing data between the DH+ network and the plant’s Ethernet backbone. This architecture allows FactoryTalk View SE SCADA software to poll PLC-5 tags in real time, enabling plant-wide visibility without requiring a full controller migration. The 1771-P5E sustains the PLC-5 side of this hybrid architecture, ensuring the legacy controller remains a reliable data source within the broader connected factory ecosystem.

In process industries, the PLC-5 platform frequently interfaces with variable frequency drives such as the PowerFlex 700 via DeviceNet, using the 1771-SDN DeviceNet Scanner module. Drive speed references, fault codes, and energy consumption data flow through the DeviceNet network into the PLC-5 data table, where they are logged, alarmed, and forwarded to the SCADA historian. The 1771-P5E’s stable power output is critical here — any backplane voltage fluctuation can disrupt the DeviceNet scanner’s communication cycle, causing drive faults and unplanned production stops.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — islands of automation where PLCs, drives, and field devices operate independently, unable to share process data with higher-level systems. The Allen-Bradley 1771-P5E, as the power foundation of the PLC-5 platform, enables the sustained operation of communication modules that bridge these islands. By keeping the 1771 chassis fully powered and stable, the 1771-P5E allows protocol gateway modules — such as the 1771-KGM for DH+ and the 1771-SDN for DeviceNet — to maintain continuous network sessions, eliminating the communication dropouts that create data gaps in SCADA historians.

For facilities pursuing production line transparency, the PLC-5 platform powered by the 1771-P5E can be integrated with MES (Manufacturing Execution Systems) and OEE (Overall Equipment Effectiveness) platforms via OPC-DA or OPC-UA servers connected to the DH+ network. This integration surfaces real-time KPIs — cycle times, reject rates, downtime events — directly from the PLC-5 data table to plant management dashboards, without requiring controller replacement. Remote diagnostics are equally supported: using RSLinx Classic software, maintenance engineers can remotely browse PLC-5 tags, monitor I/O status, and upload/download programs over the DH+ or EtherNet/IP network, reducing on-site intervention and accelerating fault resolution.

System expansion is straightforward within the 1771 platform. Additional I/O chassis can be added as remote racks via the 1771-ASB adapter, each requiring its own power supply. The 1771-P5E’s proven compatibility across the full range of 1771 chassis sizes (4-slot through 16-slot) makes it the standard choice for both new rack additions and power supply replacements in existing installations. Every unit supplied by ZYPLC undergoes functional testing prior to shipment, with a 12-month warranty covering defects in materials and workmanship — ensuring that your production line stays connected and your data flows without interruption.

Industrial Connectivity FAQ

Q1: Does the 1771-P5E support EtherNet/IP communication directly?
The 1771-P5E is a chassis power supply and does not itself implement communication protocols. EtherNet/IP connectivity for the PLC-5 platform is achieved through gateway modules such as the 1756-ENBT installed in a ControlLogix chassis, which bridges the DH+ network to EtherNet/IP. The 1771-P5E powers the 1771 chassis that hosts the PLC-5 processor and its native communication modules (DH+, DeviceNet via 1771-SDN, ControlNet via 1771-ACNR).

Q2: What is the communication latency on the DH+ network supported by PLC-5 systems?
Data Highway Plus (DH+) operates at 57.6 Kbps, 115.2 Kbps, or 230.4 Kbps, with typical message response times in the range of 10–50 ms depending on network load and token rotation. For time-critical applications requiring sub-millisecond determinism, ControlNet (1771-ACNR) is the recommended protocol within the PLC-5 platform, offering scheduled data transfers with guaranteed bandwidth.

Q3: Can the 1771-P5E be used in a multi-chassis remote I/O configuration?
Yes. In multi-rack PLC-5 installations, each 1771 I/O chassis — whether local or remote — requires its own power supply. The 1771-P5E is compatible with all standard 1771 chassis sizes and can be deployed in remote racks connected via the 1771-ASB Remote I/O Adapter. This architecture supports system expansion without controller replacement, preserving the existing PLC-5 investment while scaling I/O capacity.

Q4: What testing and warranty coverage does ZYPLC provide for the 1771-P5E?
Every 1771-P5E unit supplied by ZYPLC is functionally tested prior to shipment to verify output voltage regulation and backplane compatibility. A 12-month warranty is provided, covering defects in materials and workmanship from the date of delivery. Units are shipped via DHL or FedEx with full tracking, and our technical team is available to support installation, configuration, and network integration queries.
