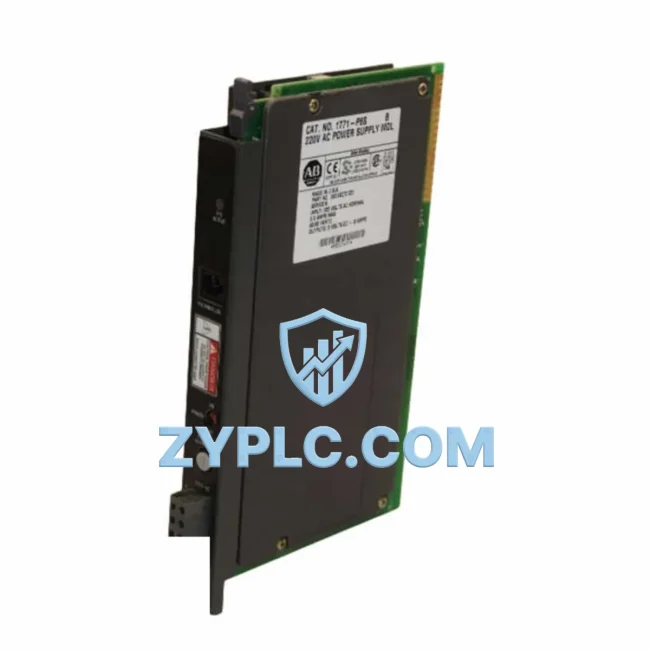

Allen-Bradley 1771-P6S Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1771-P6S: Industrial Data Link for PLC-5 Smart Factory Systems

The Allen-Bradley 1771-P6S is a high-reliability power supply module engineered for the PLC-5 Series control platform — one of Rockwell Automation’s most enduring industrial automation architectures. Far beyond a simple power source, the 1771-P6S serves as the foundational energy and communication backbone that keeps the entire 1771 I/O chassis operational, enabling uninterrupted data flow between field devices, PLC processors, and upper-level supervisory systems. In modern smart factory deployments, stable and conditioned power delivery is inseparable from network integrity: voltage fluctuations, ground noise, and transient spikes are among the leading causes of communication dropouts, CRC errors, and unexpected PLC faults. The 1771-P6S addresses these challenges with regulated DC output, built-in protection circuitry, and chassis-level power distribution designed to sustain continuous industrial duty cycles.

Within a typical PLC-5 control node, the 1771-P6S powers the processor module — such as the Allen-Bradley 1785-L40B or 1785-L80B — alongside communication adapter modules including the 1771-ACN15 ControlNet adapter and the 1771-ASB remote I/O adapter. These modules collectively manage the real-time exchange of discrete and analog signals between the chassis and distributed field devices. When the 1771-P6S delivers clean, stable power to these communication modules, it directly supports deterministic scan times and low-latency data updates across the control network — a critical requirement for high-speed process control and coordinated motion applications.

The 1771-P6S is fully compatible with the broader 1771 I/O platform, supporting chassis configurations from 4-slot to 16-slot backplanes. This scalability makes it equally suited for compact machine-level controllers and large-scale distributed control architectures. In multi-chassis installations, the 1771-P6S works in conjunction with the 1771-SN scanner module to extend the remote I/O network across multiple racks, allowing a single PLC-5 processor to supervise hundreds of I/O points distributed across a production floor. This architecture is widely deployed in automotive assembly, food and beverage processing, oil and gas facilities, and water treatment plants where system uptime and data continuity are non-negotiable.

Network Communication Table

Connected Automation Data Flow

Understanding the 1771-P6S requires viewing it within the complete industrial data chain it sustains. At the field level, sensors — including 4–20 mA analog transmitters, proximity switches, and thermocouple inputs — connect to 1771-IFE analog input modules and 1771-IBD discrete input modules housed in the same chassis. These modules digitize field signals and place them on the 1771 backplane bus, where the PLC-5 processor reads them during each scan cycle. The 1771-P6S ensures that this backplane bus remains energized and noise-free, preventing data corruption at the source.

Moving up the data chain, the PLC-5 processor communicates with operator interfaces via Data Highway Plus (DH+), a peer-to-peer token-passing network that connects multiple PLCs, PanelView HMI terminals, and programming workstations. DH+ nodes rely on consistent backplane power to maintain their network timing and message queuing. Simultaneously, the 1771-ACN15 ControlNet adapter bridges the 1771 chassis to a ControlNet segment, enabling deterministic, scheduled data transfers to other controllers, ControlLogix 1756 gateway nodes, and SCADA servers running Rockwell FactoryTalk View SE or third-party platforms such as Wonderware InTouch and Ignition SCADA.

For remote I/O expansion, the 1771-ASB adapter connects satellite chassis — located at remote machine stations or junction boxes — back to the master PLC-5 scanner over a shielded twisted-pair RIO cable. Each remote chassis also requires its own power supply module; in these configurations, the 1771-P6S (or its equivalent) at each node must deliver stable power to prevent RIO communication timeouts. The entire distributed I/O tree — spanning drives such as the PowerFlex 700 VFD, valve manifolds, and motor control centers — depends on this unbroken power and communication chain to execute coordinated production sequences, interlocks, and safety shutdowns.

At the supervisory level, data collected by the PLC-5 is forwarded via EtherNet/IP gateways — such as the 1761-NET-ENI serial-to-Ethernet bridge — to MES platforms and cloud-based analytics systems, completing the ISA-95 data hierarchy from field sensor to enterprise dashboard. The 1771-P6S, by maintaining chassis integrity at the base of this hierarchy, is the silent enabler of every data point that reaches the top.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation: a PLC-5 system may need to exchange data with newer ControlLogix or CompactLogix controllers, Modbus RTU field devices, PROFIBUS DP instruments, or OPC-UA-enabled edge gateways — each speaking a different language. The 1771-P6S, by keeping the PLC-5 chassis fully operational, allows system integrators to deploy protocol conversion gateways (such as the ProSoft MVI56-MCM Modbus module or Anybus communicators) within the same rack, bridging legacy and modern networks without replacing the entire control system.

Data isolation — where field data is trapped in a single controller with no path to SCADA or MES — is directly addressed by the PLC-5’s multi-network architecture. With the 1771-P6S sustaining chassis power, DH+ messaging, ControlNet scheduled transfers, and RIO polling can all operate simultaneously, feeding real-time production data to HMI screens, historian databases, and alarm management systems. This eliminates the blind spots that cause unplanned downtime, missed quality events, and delayed maintenance responses.

Remote diagnostics become practical when the PLC-5 chassis is reliably powered and connected. Maintenance engineers can use RSLogix 5 programming software over a DH+ or EtherNet/IP connection to perform online monitoring, force I/O points, trend analog values, and diagnose communication faults — all without physical access to the control panel. This capability is especially valuable in hazardous environments such as chemical plants, offshore platforms, and high-voltage switchgear rooms where minimizing human entry reduces risk.

For production line transparency, the 1771-P6S enables continuous uptime of the data acquisition layer, ensuring that OEE (Overall Equipment Effectiveness) metrics, cycle time data, and reject counts flow uninterrupted to manufacturing dashboards. System expansion is equally straightforward: additional 1771 chassis can be added to the RIO network, new I/O modules inserted into existing slots, and communication adapters upgraded — all while the 1771-P6S continues to provide the stable power foundation the expanded system requires.

Industrial Connectivity FAQ

Q1: Does the Allen-Bradley 1771-P6S support EtherNet/IP communication directly?
The 1771-P6S is a power supply module and does not itself implement EtherNet/IP. However, it powers the 1771 chassis that houses communication adapter modules — such as the 1771-ACN15 for ControlNet or third-party EtherNet/IP bridge modules — which provide the network connectivity. EtherNet/IP access to PLC-5 data is typically achieved via a 1761-NET-ENI or similar serial-to-Ethernet converter connected to the processor’s DH-485 or RS-232 port.

Q2: What is the communication latency impact if the 1771-P6S power supply degrades?
A degraded power supply is one of the most common causes of intermittent communication faults in PLC-5 systems. Voltage sag on the backplane bus can cause communication adapter modules to reset, producing RIO timeout errors, ControlNet missed updates, and DH+ token-passing failures. These faults manifest as increased scan time variability, sporadic I/O faults, and SCADA data gaps. Replacing a failing 1771-P6S with a tested unit typically resolves these issues immediately.

Q3: Is the 1771-P6S compatible with all PLC-5 processor models and chassis sizes?
The 1771-P6S is designed for use with the 1771 I/O chassis family and is compatible with PLC-5 processors including the 1785-L20B, 1785-L40B, 1785-L60B, and 1785-L80B. It supports 4-slot through 16-slot chassis configurations. Always verify the chassis slot count and total module power budget before installation, as high-density analog or communication module configurations may require supplemental power.

Q4: What does the 12-month warranty and pre-shipment test cover?
Every 1771-P6S unit supplied by ZYPLC undergoes a pre-shipment functional test that verifies output voltage regulation, backplane bus energization, and protection circuit operation under load. The 12-month warranty covers defects in materials and workmanship from the date of shipment. In the event of a warranty claim, ZYPLC provides advance replacement to minimize production downtime, with full technical support available throughout the warranty period.
