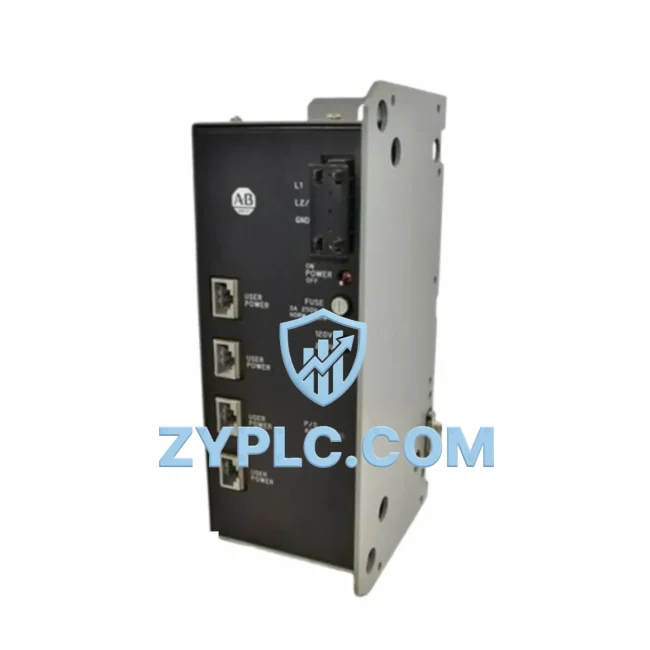

Allen-Bradley 1771-PS7 Industrial Power Supply for PLC-5 Systems

Allen-Bradley 1771-PS7: Industrial Power Supply for PLC-5 Data Link Integrity

The Allen-Bradley 1771-PS7 is a dedicated power supply module engineered for the PLC-5 programmable controller platform — one of Rockwell Automation’s most enduring and widely deployed industrial control architectures. In smart factory environments where uninterrupted power delivery is the foundation of every data transaction, the 1771-PS7 plays a critical role in sustaining the signal chain from field-level sensors and actuators all the way through to SCADA supervisory systems and enterprise MES platforms.

Modern industrial sites demand more than simple power conversion. They require stable, conditioned DC power that can support the full I/O backplane of a PLC-5 chassis under continuous cyclic scan loads, real-time communication polling, and simultaneous multi-rack data exchange. The 1771-PS7 delivers exactly this — providing regulated output to the 1771 I/O chassis and ensuring that every connected module, from digital input cards to analog output blocks, receives clean, consistent power without voltage sag or transient interference that could corrupt process data or trigger nuisance faults.

Network Communication Table

Connected Automation Data Flow

In a typical PLC-5 automation architecture, the 1771-PS7 anchors the power infrastructure of the local I/O chassis, enabling the PLC-5/40 or PLC-5/80 processor to execute ladder logic scans while simultaneously managing real-time communication across the Data Highway Plus (DH+) network. Field devices — including proximity sensors, photoelectric switches, and pressure transmitters — feed discrete and analog signals into 1771-IB16 digital input modules and 1771-IF4I analog input modules housed in the same chassis. The 1771-PS7 ensures these modules receive stable backplane power throughout the scan cycle.

Upstream, the PLC-5 processor exchanges process data with operator HMI terminals running FactoryTalk View SE, where production supervisors monitor real-time KPIs, alarm states, and batch records. Simultaneously, a 1756-DHRIO ControlLogix bridge module translates DH+ messages into EtherNet/IP packets, forwarding live process values to a Wonderware SCADA server for historian logging and trend analysis. The 1771-PS7’s stable power output is what makes this multi-layer data flow reliable — any power instability at the backplane level would cascade into communication timeouts, missed I/O updates, and false alarms at the SCADA layer.

For remote I/O expansion, the PLC-5 system uses 1771-ASB Remote I/O Adapter modules to extend the I/O network across the plant floor. These remote racks — which may house 1771-OBD digital output modules controlling motor starters, solenoid valves, and conveyor drives — depend on the master chassis power supply for network synchronization. In multi-rack configurations, the 1771-PS7 in the primary chassis sets the power quality benchmark that the entire distributed I/O network relies upon.

Where protocol conversion is required — for example, integrating legacy Modbus RTU field instruments or PROFIBUS DP drives into the PLC-5 network — a ProSoft Technology MVI56-MCM communication module or similar gateway bridges the protocol gap, with the converted data ultimately flowing back through the DH+ network to the PLC-5 processor. The 1771-PS7 supports this expanded network topology by maintaining chassis power integrity even as communication loads increase during peak polling cycles.

Edge computing nodes and industrial IoT gateways, such as the Moxa UC-8112 or Advantech WISE-5000 series, can tap into the DH+ data stream via serial or Ethernet bridges, forwarding selected process variables to cloud analytics platforms for predictive maintenance modeling. Throughout this entire data chain — from sensor signal to cloud dashboard — the 1771-PS7 remains the silent enabler, keeping the PLC-5 chassis powered and the data flowing without interruption.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the condition where valuable process information is trapped inside aging PLC systems that cannot communicate with modern SCADA platforms, MES databases, or cloud analytics services. The Allen-Bradley 1771-PS7, as a core infrastructure component of the PLC-5 platform, is central to solving this problem by keeping the PLC-5 system operational and network-ready while integration upgrades are implemented incrementally.

Many plants cannot afford a full control system replacement. Instead, they extend the life of their PLC-5 infrastructure by adding protocol gateway modules, Ethernet bridges, and data concentrators alongside the existing 1771 I/O chassis. This approach requires the original power supply — the 1771-PS7 — to remain fully functional and reliable. A failing or substandard replacement power supply introduces voltage instability that manifests as intermittent communication errors on the DH+ network, corrupted I/O data tables, and unpredictable processor faults that undermine the entire integration strategy.

By sourcing a genuine, tested 1771-PS7 from a reliable supplier, plant engineers can confidently proceed with phased modernization: adding FactoryTalk Historian data collection, connecting remote HMI panels via EtherNet/IP gateways, and enabling remote diagnostic access through VPN-secured connections to the PLC-5 processor. Production line transparency — the ability to see real-time OEE metrics, alarm histories, and batch traceability data — becomes achievable without scrapping the existing PLC-5 investment.

Network stability, low communication latency, and deterministic I/O scan times are all downstream benefits of a properly powered PLC-5 chassis. The 1771-PS7 is not merely a power supply; it is the foundation upon which industrial data integrity is built. For system integrators managing multi-site SCADA rollouts or plant engineers troubleshooting intermittent DH+ communication faults, replacing a degraded power supply with a verified 1771-PS7 is often the fastest path to restoring network stability and production visibility.

Industrial Connectivity FAQ

Q1: Will the 1771-PS7 support high-speed DH+ communication without causing network latency?
Yes. The 1771-PS7 provides stable, regulated backplane power that ensures the PLC-5 processor and communication modules operate within their specified timing parameters. Voltage instability from a failing power supply is a common but often overlooked cause of DH+ communication timeouts and increased network latency. A properly functioning 1771-PS7 eliminates this variable from your network troubleshooting process.

Q2: Is the 1771-PS7 compatible with multi-rack PLC-5 configurations using Remote I/O adapters?
Yes. The 1771-PS7 is designed for use in the primary 1771 I/O chassis and supports multi-rack architectures where 1771-ASB Remote I/O Adapter modules extend the I/O network to satellite racks. The power supply’s stable output ensures consistent backplane operation in the master chassis, which is critical for maintaining synchronization across all remote I/O racks on the network.

Q3: Can the PLC-5 system with a 1771-PS7 be integrated with modern SCADA and HMI platforms?
Absolutely. The PLC-5 platform supports integration with modern SCADA systems such as Wonderware, IgnitionSCADA, and FactoryTalk View via DH+ gateways, EtherNet/IP bridges, and OPC server software. The 1771-PS7 keeps the PLC-5 chassis powered and communication-ready, enabling these integration pathways to function reliably. Many plants successfully run PLC-5 systems alongside modern HMI and historian platforms using this approach.

Q4: What quality assurance does the 1771-PS7 undergo before shipment, and what warranty is provided?
Every 1771-PS7 unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying output voltage regulation, load performance, and backplane interface integrity. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch via DHL or FedEx with global delivery coverage, minimizing downtime for urgent maintenance and replacement requirements.

—
