Allen-Bradley 1771-WHFB Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1771-WHFB: Industrial Data Link for PLC-5 Smart Factory Connectivity

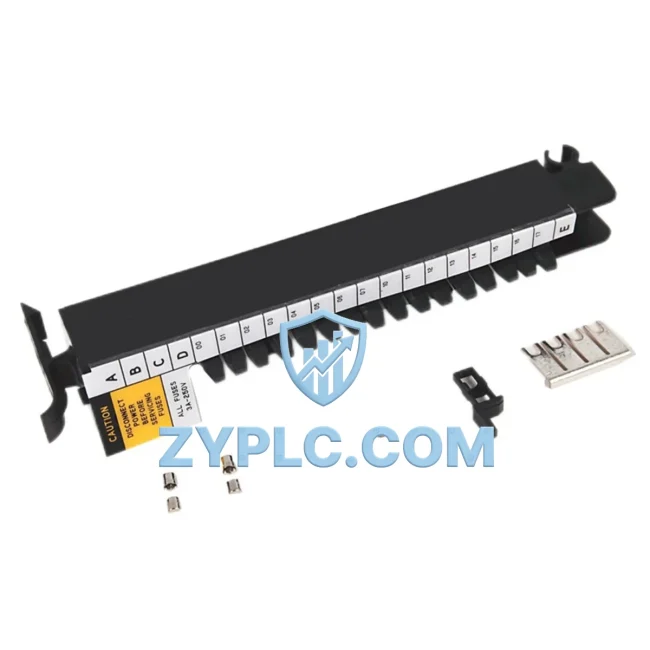

The Allen-Bradley 1771-WHFB Field Wiring Arm is a precision-engineered interface component designed to bridge field-level I/O signals with the Allen-Bradley PLC-5 controller platform. In modern smart factory environments where data integrity, real-time communication, and system interoperability are non-negotiable, the 1771-WHFB serves as a critical node in the industrial data chain — connecting sensors, actuators, and remote I/O modules to the PLC-5 backplane with structured, low-latency signal routing.

As industrial sites evolve toward fully networked automation architectures, the 1771-WHFB enables seamless integration between field wiring terminations and the 1771 I/O chassis, ensuring that every signal — from discrete inputs to analog feedback — is reliably captured, conditioned, and delivered to the PLC-5 processor for real-time decision-making. This makes it an indispensable component in any facility running Allen-Bradley’s legacy or hybrid PLC-5 infrastructure alongside modern SCADA and HMI systems.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1771-WHFB sits at the intersection of field instrumentation and the PLC-5 control layer. The data flow begins at the sensor level — pressure transmitters, proximity switches, temperature sensors, and flow meters — all terminating their field wiring directly onto the 1771-WHFB arm. This structured termination eliminates loose wiring errors and ensures that each signal is cleanly routed into the corresponding 1771 I/O module slot within the chassis.

From the I/O chassis, the Allen-Bradley PLC-5 processor — such as the 1785-L40B or 1785-L80B — reads the conditioned input data across the 1771 backplane at scan-cycle speeds, executing ladder logic and generating output commands in real time. For distributed control architectures, the PLC-5 communicates upstream via Data Highway Plus (DH+) to SCADA servers running Rockwell’s FactoryTalk View or third-party platforms, enabling plant-wide visibility of every connected field device.

Where remote I/O expansion is required, the 1771-ASB Remote I/O Adapter Module extends the 1771 chassis over Allen-Bradley’s Remote I/O (RIO) network, allowing the PLC-5 to manage I/O racks located hundreds of meters away on the plant floor. The 1771-WHFB’s role in each remote rack is identical — providing the physical wiring interface that keeps field signals organized and electrically isolated from the backplane logic.

For facilities integrating legacy PLC-5 systems with newer ControlLogix or CompactLogix platforms, the 1756-DHRIO ControlLogix DH+/RIO Communication Module acts as a protocol bridge, translating DH+ and RIO traffic into EtherNet/IP for upstream SCADA and MES connectivity. The 1771-WHFB-equipped I/O racks remain fully operational within this hybrid architecture, feeding real-time process data into the unified network without requiring a full system migration.

At the HMI layer, PanelView Plus terminals connected via DH+ or EtherNet/IP display live process values sourced from the PLC-5 I/O system, giving operators immediate visibility into field conditions. Alarm states triggered by I/O threshold violations are propagated through the same data path — from the 1771-WHFB termination point, through the PLC-5 processor, and up to the SCADA alarm management console — ensuring that no fault goes undetected.

For drive integration, Allen-Bradley PowerFlex variable frequency drives connected via DeviceNet or hardwired analog outputs feed speed and torque feedback signals back through the 1771 analog input modules, with the 1771-WHFB providing the clean termination interface that maintains signal fidelity across long cable runs. Edge gateway devices such as the Moxa MGate series can further extend this data to cloud-based analytics platforms, completing the IIoT data chain from field sensor to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, drives, and SCADA systems operate in silos, unable to share process data across protocol or network boundaries. The Allen-Bradley 1771-WHFB directly addresses the physical layer of this problem by providing a standardized, reliable wiring interface that ensures every field signal is correctly terminated and available to the PLC-5 control system.

In facilities where mixed protocols coexist — DH+, RIO, ControlNet, and EtherNet/IP — the 1771-WHFB-equipped I/O chassis serves as the stable foundation from which protocol conversion and data aggregation can occur. By ensuring that field wiring is correctly organized and electrically sound at the termination point, the 1771-WHFB eliminates a common source of intermittent faults that can corrupt data streams and trigger false alarms in SCADA systems.

For production line transparency, the 1771-WHFB enables granular I/O monitoring at the module level, allowing maintenance teams to isolate faults to a specific field device without taking the entire control system offline. Remote diagnostic capabilities — accessed through the PLC-5 processor’s communication ports and upstream SCADA tools — allow engineers to interrogate I/O status, check wiring integrity flags, and review historical fault logs without physical access to the panel, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System expansion is equally straightforward: additional 1771 I/O chassis equipped with 1771-WHFB arms can be added to the RIO network without disrupting existing control logic, providing a scalable path for capacity increases, new production lines, or facility expansions. Each new chassis integrates transparently into the existing PLC-5 scan cycle, with the SCADA system automatically recognizing the additional I/O points upon configuration update.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1771-WHFB support in a PLC-5 network?
The 1771-WHFB is a field wiring arm designed for use within the Allen-Bradley 1771 I/O chassis, which supports Data Highway Plus (DH+) and Remote I/O (RIO) communication protocols when paired with the appropriate adapter modules such as the 1771-ASB. In hybrid architectures, the chassis can be integrated into ControlNet or EtherNet/IP networks via protocol bridge modules, making the 1771-WHFB compatible with a broad range of industrial network topologies.

Q2: How does the 1771-WHFB contribute to network stability and signal integrity?
The 1771-WHFB provides a structured, keyed wiring termination interface that physically organizes field wiring connections to the I/O module, reducing the risk of miswiring, loose connections, and cross-talk between signal channels. This directly improves network stability by eliminating intermittent faults at the field wiring layer — one of the most common sources of spurious alarms and data errors in industrial control systems.

Q3: Can the 1771-WHFB be used in SCADA and HMI integration projects?
Yes. The 1771-WHFB is fully compatible with SCADA and HMI integration projects built on the Allen-Bradley PLC-5 platform. Field signals terminated on the 1771-WHFB are read by the PLC-5 processor and made available to SCADA servers and HMI terminals via DH+, RIO, or bridged EtherNet/IP connections. This enables real-time monitoring, alarm management, and remote diagnostics from any connected operator interface.

Q4: What warranty and quality assurance does ZYPLC provide for the 1771-WHFB?
ZYPLC provides a 12-month warranty on the Allen-Bradley 1771-WHFB, covering manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing to verify wiring arm integrity and module compatibility before dispatch. In-stock inventory ensures rapid order fulfillment with global shipping capability, minimizing lead times for urgent maintenance and project requirements.

—
