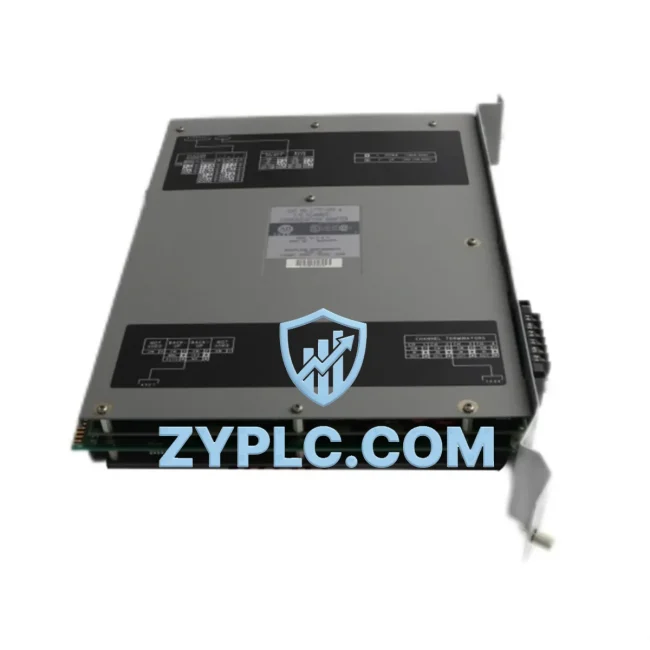

Allen-Bradley 1775-SR5 Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1775-SR5 Industrial Network Interface for PLC-5 Systems: Bridging the Smart Factory Data Link

In modern industrial environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The Allen-Bradley 1775-SR5 I/O Scanner Communications Module is engineered to serve as a critical network interface node within PLC-5 Series control architectures, enabling reliable, high-speed Remote I/O communication across complex automation topologies. Whether your facility operates a distributed manufacturing line, a process control loop, or a multi-zone SCADA-monitored plant, the 1775-SR5 delivers the protocol stability and network throughput that smart factory integration demands.

The 1775-SR5 functions as a dedicated I/O scanner, managing the cyclical polling of remote I/O racks and adapter modules connected to the PLC-5 processor backplane. By offloading I/O scan tasks from the main CPU, it ensures deterministic scan times and reduces processor overhead — a critical advantage in time-sensitive control applications such as high-speed assembly lines, conveyor systems, and precision motion control platforms.

Network Communication Table

Connected Automation Data Flow

The 1775-SR5 sits at the heart of a layered industrial communication architecture. At the field level, discrete and analog signals from 1771 I/O modules — including digital input cards, thermocouple modules, and analog output cards — are collected within remote 1771 I/O chassis and transmitted back to the PLC-5 processor via the Remote I/O link managed by the 1775-SR5. This scanner continuously polls each configured rack address, ensuring that real-time process values are available to the PLC-5 CPU within every scan cycle.

Upstream, the PLC-5 processor communicates with supervisory systems through complementary network modules. The 1785-ENET Ethernet Interface Module bridges the PLC-5 to plant-level Ethernet networks, enabling data exchange with FactoryTalk View SE SCADA servers and RSView32 HMI workstations. Operators monitoring production KPIs, alarm states, and process trends receive live data sourced directly from the I/O points scanned by the 1775-SR5 — creating an unbroken data chain from sensor to screen.

In facilities where legacy Remote I/O devices must coexist with modern EtherNet/IP infrastructure, the 1203-GU6 Remote I/O to DeviceNet Gateway and 1761-NET-AIC Advanced Interface Converter serve as protocol bridges, translating RIO frames into formats compatible with newer Rockwell Automation control platforms. This allows the 1775-SR5 to remain a productive network node even as plant modernization projects introduce ControlLogix L7x or CompactLogix L3x processors alongside the existing PLC-5 infrastructure.

For drive integration, PowerFlex 700 AC drives equipped with Remote I/O adapter cards connect directly to the RIO link, with the 1775-SR5 managing their I/O image data. Speed references, fault status, and run/stop commands flow through the scanner in real time, enabling coordinated multi-drive control from a single PLC-5 program. Similarly, 1336 PLUS II drives with RIO communication options integrate seamlessly into the same network segment.

At the edge, 1747-AENTR EtherNet/IP Adapter modules and industrial edge gateways aggregate data from multiple RIO segments, forwarding consolidated process datasets to cloud-based MES platforms and enterprise ERP systems. This architecture supports the full smart factory data pyramid — from field signal acquisition through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics — with the 1775-SR5 anchoring the foundational I/O communication layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where field devices, controllers, and supervisory systems speak incompatible communication languages, creating data silos that prevent plant-wide visibility. The Allen-Bradley 1775-SR5 directly addresses this by providing a standardized Remote I/O interface that unifies diverse 1771-compatible I/O devices under a single, deterministic communication framework managed by the PLC-5 processor.

Facilities that have historically struggled with data isolation — where individual machine cells operate independently without reporting to a central SCADA system — can leverage the 1775-SR5 as the communication foundation for a phased integration project. By connecting remote I/O racks distributed across the plant floor to a central PLC-5 system, operators gain consolidated visibility into production status, equipment health, and process variables without requiring a full control system replacement.

Remote monitoring and diagnostics become practical when the 1775-SR5 is paired with an Ethernet gateway module. Maintenance engineers can access real-time I/O status, scanner fault codes, and rack communication health from RSLogix 5 programming terminals or remote HMI panels — reducing mean time to repair (MTTR) and enabling predictive maintenance workflows. Fault isolation is accelerated because the scanner’s diagnostic registers pinpoint which rack address or I/O slot is generating communication errors, eliminating time-consuming manual troubleshooting on the plant floor.

For facilities planning production line transparency initiatives, the 1775-SR5 enables the PLC-5 to expose granular I/O data to FactoryTalk Historian or third-party OPC servers, feeding dashboards that track OEE, cycle times, reject rates, and energy consumption in real time. As production volumes grow or new process lines are added, the scanner’s capacity to address up to 32 remote I/O racks provides substantial system expansion headroom without requiring additional hardware investments in the near term.

Every 1775-SR5 unit supplied by ZYPLC undergoes a pre-shipment functional test to verify communication integrity, backplane compatibility, and scanner configuration. Units are shipped with a 12-month warranty, and our technical team provides post-sale support for installation, configuration, and integration troubleshooting.

Industrial Connectivity FAQ

Q1: What communication baud rates does the Allen-Bradley 1775-SR5 support, and how does baud rate selection affect network performance?
The 1775-SR5 supports selectable baud rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps on the Remote I/O link. Higher baud rates reduce I/O scan cycle times and improve responsiveness for time-critical control applications, but require shorter cable runs and higher-quality shielded cable to maintain signal integrity. For most plant floor installations with cable runs under 100 meters, 230.4 Kbps operation is achievable and recommended for optimal throughput.

Q2: Is the 1775-SR5 compatible with all PLC-5 processor variants, and can it coexist with other communication modules in the same chassis?
The 1775-SR5 is compatible with the full PLC-5 processor family, including the 5/10, 5/12, 5/15, 5/25, 5/40, 5/60, and 5/80 variants. It occupies a dedicated backplane slot and can coexist with other communication modules such as the 1785-ENET Ethernet Interface and 1785-KE DH+ Interface in the same chassis, provided slot addressing and backplane power budgets are respected. RSLogix 5 software is used for scanner configuration and I/O mapping.

Q3: How does the 1775-SR5 support integration with modern SCADA and HMI systems that use OPC or EtherNet/IP protocols?
The 1775-SR5 itself operates on the Allen-Bradley Remote I/O protocol, but when paired with an Ethernet gateway module such as the 1785-ENET or a third-party RIO-to-EtherNet/IP bridge, the I/O data managed by the scanner becomes accessible to OPC DA/UA servers, FactoryTalk View SE, and other EtherNet/IP-compatible SCADA platforms. This allows legacy RIO-based I/O infrastructure to feed modern supervisory systems without requiring a full migration to newer I/O platforms.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed on the 1775-SR5?
Every 1775-SR5 unit supplied by ZYPLC is functionally tested prior to shipment to verify backplane communication, scanner initialization, and I/O polling operation. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. Our technical support team is available to assist with installation guidance, RSLogix 5 configuration, and fault diagnosis throughout the warranty period. Expedited replacement is available for critical production applications.
