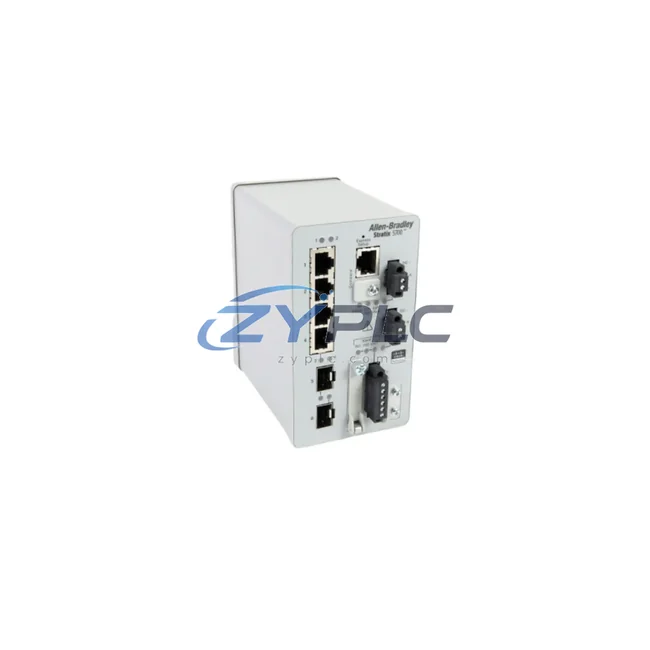

Allen-Bradley 1783-BMS06SL Ethernet Switch for Stratix 2000

Allen-Bradley 1783-BMS06SL Ethernet Switch for Stratix 2000

The Allen-Bradley 1783-BMS06SL is a purpose-built unmanaged Ethernet switch designed to operate as a reliable network-layer component within Stratix 2000 series control system architectures. In modern industrial automation environments, network infrastructure is no longer a peripheral concern — it is a foundational layer that determines the responsiveness, reliability, and scalability of the entire control system. The 1783-BMS06SL addresses this requirement by delivering plug-and-play Ethernet connectivity that integrates seamlessly into Rockwell Automation’s layered automation framework, supporting EtherNet/IP communication across control, I/O, and device layers without the complexity of managed switch configuration.

Designed for deployment in control cabinets, machine skids, and distributed I/O panels, the 1783-BMS06SL provides six 10/100 Mbps copper ports in a compact DIN-rail-mountable form factor. Its passive, auto-negotiating architecture ensures that connected devices — whether PLCs, drives, HMI panels, or remote I/O adapters — establish communication immediately upon power-up, reducing commissioning time and eliminating the need for network engineering expertise at the device level. This makes the switch particularly valuable in high-volume production environments where rapid deployment and minimal downtime are operational priorities.

Product Specification Table

System Compatibility Notes

The 1783-BMS06SL achieves its greatest value not as a standalone component, but as a coordinated element within a multi-layer Rockwell Automation control architecture. At the control layer, a 1769-L33ER CompactLogix 5370 L3 Controller or a 1756-L85E ControlLogix 5580 Controller serves as the primary CPU, managing program execution, tag-based data exchange, and system-wide coordination. The 1783-BMS06SL connects these controllers to downstream I/O and device nodes via EtherNet/IP, ensuring that scan cycle data reaches field devices within deterministic time windows.

At the I/O layer, distributed modules such as the 1734-AENT POINT I/O EtherNet/IP Adapter and 1769-IQ16 CompactLogix Digital Input Module rely on stable, low-latency Ethernet connectivity to report field signals accurately. The 1783-BMS06SL’s auto-negotiation capability ensures that these modules connect without manual port configuration, reducing the risk of communication errors during initial commissioning or module replacement. Similarly, analog I/O modules such as the 1756-IF16 ControlLogix Analog Input Module benefit from the switch’s consistent throughput when transmitting high-resolution process values to the controller.

At the drive and actuator layer, PowerFlex 525 AC Drives and PowerFlex 755 AC Drives with embedded EtherNet/IP adapters connect directly to the 1783-BMS06SL, enabling speed reference, torque control, and diagnostic data to flow through a unified network topology. This eliminates the need for separate DeviceNet or ControlNet segments for drive communication, simplifying the overall network architecture and reducing wiring complexity within the control cabinet.

For human-machine interface integration, PanelView Plus 7 Standard HMI terminals connect to the same Ethernet segment managed by the 1783-BMS06SL, allowing operators to monitor real-time process data, acknowledge alarms, and adjust setpoints without requiring a separate network segment. The switch’s passive forwarding architecture ensures that HMI polling traffic does not interfere with controller-to-I/O communication, maintaining system responsiveness under high operator interaction loads.

At the power layer, a 1606-XLP72E Power Supply provides regulated 24V DC to the 1783-BMS06SL and connected field devices, ensuring stable operation across the full industrial temperature range. The switch’s low power consumption (≤ 3.5 W) minimizes thermal load within the control enclosure, contributing to overall panel thermal management and long-term component reliability.

Industrial Application Notes

The 1783-BMS06SL is deployed across a wide range of industrial sectors where EtherNet/IP-based control architectures are standard. In discrete manufacturing environments — including automotive assembly, electronics production, and consumer goods packaging lines — the switch provides the device-level network backbone that connects PLCs, servo drives, vision systems, and safety controllers within a single Ethernet segment. Its compact form factor and DIN-rail mounting make it suitable for integration into machine-mounted control enclosures where space is constrained.

In process control applications such as chemical processing, pharmaceutical manufacturing, and food and beverage production, the 1783-BMS06SL supports the connectivity requirements of distributed control architectures where remote I/O panels are located near process equipment. Its wide operating temperature range and industrial-grade construction ensure reliable operation in environments subject to temperature variation, vibration, and airborne contaminants.

In power and energy applications, including substation automation and renewable energy control systems, the switch provides the Ethernet connectivity layer between protection relays, energy meters, and SCADA-connected controllers. Its passive architecture eliminates the risk of misconfiguration-induced network outages, which is a critical consideration in high-availability power infrastructure.

In water and wastewater treatment facilities, the 1783-BMS06SL connects remote pump stations, valve actuators, and flow measurement devices to centralized CompactLogix or ControlLogix controllers, enabling real-time process monitoring and control across geographically distributed installations. Its low maintenance requirements and long operational lifespan reduce the total cost of ownership in facilities where on-site technical support resources are limited.

In mining and metals processing environments, the switch supports the connectivity requirements of conveyor control systems, crusher automation, and materials handling equipment, where robust Ethernet infrastructure is essential for maintaining production continuity and enabling remote diagnostics.

Product Compatibility FAQ

Q1: Is the 1783-BMS06SL compatible with existing ControlLogix and CompactLogix EtherNet/IP architectures?
Yes. The 1783-BMS06SL is fully compatible with all Rockwell Automation EtherNet/IP-based controllers, including the ControlLogix 5580, CompactLogix 5370, and Micro850 series. As an unmanaged switch, it operates transparently within the EtherNet/IP network topology, requiring no configuration and no Studio 5000 integration. It supports standard IEEE 802.3 auto-negotiation and auto-MDI/MDIX, ensuring plug-and-play compatibility with all EtherNet/IP-capable devices including POINT I/O adapters, PowerFlex drives, and PanelView HMI terminals.

Q2: Can the 1783-BMS06SL be used in a redundant network architecture?
The 1783-BMS06SL is an unmanaged switch and does not natively support ring topology or Device Level Ring (DLR) protocols. For applications requiring network redundancy, it is recommended to use the Stratix 5700 or Stratix 8000 managed switch series, which support DLR and linear/star topology redundancy. However, the 1783-BMS06SL is well-suited for star topology deployments at the device level, where it connects to a managed upstream switch that provides redundancy at the distribution layer. This hybrid approach is commonly used in cost-sensitive machine-level applications where full DLR redundancy is not required at every network segment.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance requirements?
ZYPLC provides a warranty terms confirmed during quotation on the 1783-BMS06SL covering manufacturing defects, functional failures, and component-level faults identified under normal operating conditions. Warranty claims are processed through direct contact with the ZYPLC technical team, with replacement units dispatched to minimize system downtime. For long-term maintenance planning, ZYPLC supports RFQ sourcing for the 1783-BMS06SL and compatible Stratix 2000 series components, enabling customers to establish spare parts inventories aligned with their preventive maintenance schedules. ZYPLC’s technical team can also provide guidance on system integration — ensuring that replacement units are configured and validated within the existing control system architecture before deployment.
