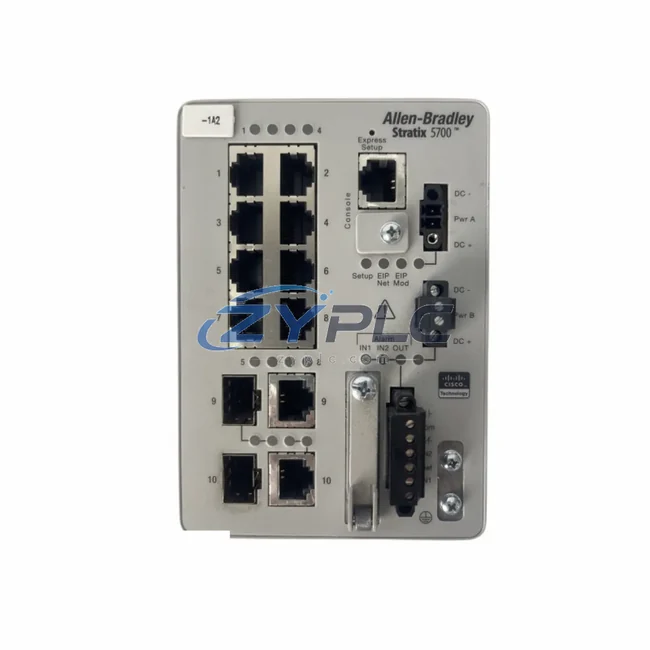

Allen-Bradley 1783-BMS10CA Managed Switch for Stratix 5700

Allen-Bradley 1783-BMS10CA Managed Switch for Stratix 5700

The Allen-Bradley 1783-BMS10CA is a managed Ethernet switch engineered as a core network-layer component within Rockwell Automation’s Stratix 5700 series, purpose-built for deployment in industrial control system architectures where deterministic communication, network segmentation, and long-term operational stability are non-negotiable requirements. Rather than functioning as a standalone networking device, the 1783-BMS10CA is designed to serve as the connective fabric between the control layer, I/O layer, HMI layer, and field device layer — enabling seamless data flow across the entire automation hierarchy.

In a fully integrated Logix-based control architecture, the 1783-BMS10CA operates in coordination with controllers such as the Allen-Bradley 1756-L85E ControlLogix 5580 CPU, which manages real-time program execution and EtherNet/IP communication across the network. The switch provides the managed switching infrastructure that allows the CPU to communicate with distributed I/O adapters, including the 1756-EN2TR dual-port EtherNet/IP communication module, which supports Device Level Ring (DLR) topology for network redundancy. This DLR capability, when combined with the 1783-BMS10CA’s IGMP snooping and QoS prioritization features, ensures that time-critical I/O data is delivered with minimal latency even under high network load conditions.

At the I/O layer, the switch facilitates communication between the controller and remote I/O modules such as the 1734-AENT POINT I/O EtherNet/IP adapter, which aggregates analog and digital signals from field instruments and transmits them upstream to the control layer. The 1783-BMS10CA’s port-level VLAN configuration allows engineers to segment process control traffic from general plant network traffic, reducing the risk of unauthorized access and improving overall network determinism. This segmentation is particularly valuable in architectures where the 1769-L36ERM CompactLogix controller manages localized control loops while sharing the same physical network infrastructure as supervisory systems.

From a human-machine interface perspective, the 1783-BMS10CA provides the network backbone that connects PanelView Plus 7 HMI terminals to the control system, enabling operators to monitor process variables, acknowledge alarms, and issue control commands in real time. The switch’s support for Cisco IOS-based management features — including SNMP, RSPAN, and port mirroring — allows network engineers to monitor traffic patterns and diagnose communication faults without interrupting production. This capability is essential in continuous process environments such as petrochemical plants, water treatment facilities, and power distribution substations where unplanned downtime carries significant operational and safety consequences.

In redundant architecture designs, the 1783-BMS10CA can be deployed in ring topologies alongside the 1783-ETAP EtherNet/IP tap modules, which provide passive network access points for diagnostics and commissioning without breaking the live network ring. The switch also integrates with the Stratix 5900 services router for WAN connectivity and remote access, and with the 1783-NATR NAT router for secure zone-to-zone communication in multi-cell manufacturing environments. Power supply redundancy can be achieved by pairing the switch with dual 1606-XLP power supplies, ensuring that network infrastructure remains operational even during primary power supply failures.

For system commissioning and ongoing maintenance, the 1783-BMS10CA is fully compatible with Rockwell Automation’s Studio 5000 Logix Designer environment and the FactoryTalk Network Manager platform, which provides centralized visibility into switch health, port utilization, and firmware status across the entire plant network. This integration reduces the engineering effort required to maintain network documentation and accelerates fault isolation during troubleshooting events. The switch’s web-based management interface and CLI access further simplify configuration tasks for both initial deployment and ongoing network modifications.

ZYPLC maintains availability subject to RFQ confirmation of the 1783-BMS10CA with full functional testing prior to shipment, supported by a warranty terms confirmed during quotation and system integration support to ensure compatibility within your existing Stratix or Logix architecture. Our technical team can assist with configuration guidance, system compatibility verification, and lead time planning for both single-unit replacements and multi-unit project requirements.

Product Specification Table

System Compatibility Notes

The 1783-BMS10CA achieves its full value when deployed as part of a coordinated Rockwell Automation control architecture. In a typical system design, the switch interconnects the following components across multiple automation layers: the 1756-L85E ControlLogix 5580 CPU at the control layer; the 1756-EN2TR dual-port EtherNet/IP bridge module for DLR ring support; the 1734-AENT POINT I/O adapter at the distributed I/O layer; the 1769-L36ERM CompactLogix controller for localized process control; the PanelView Plus 7 HMI terminal for operator interface; the 1783-ETAP EtherNet/IP tap for passive ring diagnostics; the 1783-NATR NAT router for inter-zone security; the Stratix 5900 services router for WAN and remote access; and the 1606-XLP redundant power supply for infrastructure resilience. Together, these components form a layered, fault-tolerant automation network in which the 1783-BMS10CA serves as the central switching node, ensuring that every layer communicates with the reliability and determinism required for industrial-grade operations.

Industrial Application Notes

The 1783-BMS10CA is deployed across a wide range of industrial sectors. In manufacturing and assembly lines, it supports high-speed I/O polling and robot controller communication within cell-level EtherNet/IP networks. In power generation and distribution substations, its VLAN segmentation and SNMP monitoring capabilities support IEC 62443-compliant network architectures. In petrochemical and refinery environments, the switch’s DIN rail mounting, wide operating temperature range, and ATEX zone 2 rating make it suitable for installation in control panels located in classified hazardous areas. In water and wastewater treatment facilities, it enables reliable SCADA communication between remote outstations and central control rooms. In mining and metallurgical operations, the switch’s rugged construction and redundant ring topology support continuous monitoring of conveyor systems, crushers, and process control loops. In packaging and material handling lines, its QoS prioritization ensures that motion control and vision system data are delivered without contention from lower-priority traffic.

Product Compatibility FAQ

Q1: Is the 1783-BMS10CA compatible with existing Stratix 5700 ring topologies using DLR?
Yes. The 1783-BMS10CA fully supports Device Level Ring (DLR) topology as defined in the EtherNet/IP specification. It can be integrated into existing Stratix 5700 ring segments alongside other DLR-capable nodes such as the 1756-EN2TR and 1734-AENT adapters without requiring changes to the ring supervisor configuration, provided firmware versions are aligned with the Rockwell Automation compatibility matrix.

Q2: Can this switch be managed through Studio 5000 or FactoryTalk Network Manager alongside other Stratix devices?
Yes. The 1783-BMS10CA is recognized as a managed Stratix device within FactoryTalk Network Manager, enabling centralized firmware management, port health monitoring, and SNMP trap collection from a single console. It also appears in the Studio 5000 network topology view when configured with the appropriate EDS file, simplifying system documentation and change management workflows.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration?
ZYPLC’s warranty terms confirmed during quotation covers functional defects identified under normal operating conditions, including port failures, power input faults, and firmware integrity issues. All units are tested prior to shipment. Our engineering support team provides system integration assistance, including configuration review, compatibility verification with your existing Logix or Stratix architecture, and guidance on VLAN, QoS, and DLR setup. Contact us at +86 19859288691 or plc.sales@zyplc.com for pre-sales technical consultation.
