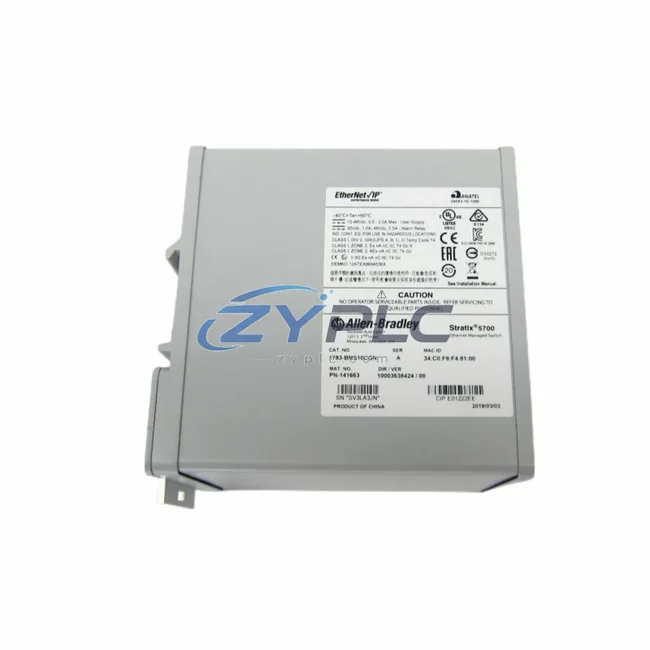

Allen-Bradley 1783-BMS10CGN Managed Switch

Allen-Bradley 1783-BMS10CGN Managed Switch for Stratix 5700 Automation

The Allen-Bradley 1783-BMS10CGN is a 10-port managed Ethernet switch from the Stratix 5700 series, purpose-built for industrial automation environments where network reliability, deterministic communication, and energy efficiency are non-negotiable. Designed to integrate seamlessly into EtherNet/IP-based control architectures, this switch enables factories to reduce unnecessary network overhead, stabilize data throughput, and support the kind of real-time control loops that modern production lines demand.

In high-throughput manufacturing environments, network latency and packet loss are silent unplanned downtimers. When a drive command from a Logix 5000 controller — such as the CompactLogix L33ER — is delayed due to unmanaged network congestion, the downstream effect is motor over-run, repeated positioning cycles, and wasted electrical energy. The 1783-BMS10CGN eliminates this by providing managed QoS (Quality of Service) prioritization, ensuring that time-critical EtherNet/IP traffic from servo drives, I/O modules, and HMI panels reaches its destination without contention.

Product Specification Table

System Compatibility and Application

The 1783-BMS10CGN is most effective when deployed as the backbone of a layered automation network. In a typical cell-level architecture, the switch connects a CompactLogix L36ERM controller to a PowerFlex 525 AC drive, a Kinetix 5500 servo drive, and a PanelView Plus 7 HMI — all communicating over EtherNet/IP. By segmenting these devices into dedicated VLANs, the switch prevents broadcast storms that would otherwise force the PLC to spend processing cycles on non-critical traffic, indirectly increasing scan time and reducing motor control precision.

On the I/O side, the 1783-BMS10CGN supports high-density Point I/O 1734 adapter modules that feed real-time sensor data — including current draw, temperature, and vibration — back to the controller. This data, when processed through FactoryTalk Analytics or a connected PowerMonitor 5000 energy meter, gives maintenance teams the visibility to identify motors running above their efficiency curve before they fail. Early detection means scheduled maintenance rather than emergency shutdowns, directly reducing unplanned downtime and the energy spikes associated with cold restarts.

For motion-intensive lines, the switch’s Gigabit SFP uplink ports allow it to connect to a Stratix 8000 distribution switch, extending the network to additional cells without introducing latency. This is particularly valuable in automotive or electronics assembly lines where a Kinetix 5700 multi-axis servo system must synchronize dozens of axes within microseconds. Any network jitter at this level translates directly into positional error, scrap, and rework — all of which carry embedded energy costs.

The 1783-BMS10CGN also supports PROFINET-adjacent configurations through its VLAN isolation capabilities, making it suitable for hybrid environments where legacy Modbus TCP devices coexist with modern EtherNet/IP nodes. This flexibility reduces the need for protocol converters, which are additional power-consuming devices in the panel.

Maintenance and Replacement Notes

Consider a bottling plant running three production lines, each controlled by a separate CompactLogix system. Without managed switching, all EtherNet/IP traffic — from the PowerFlex 755 drives controlling conveyor motors to the 1734-AENT Point I/O adapters monitoring fill-level sensors — competes on a flat network. The result is increased cycle jitter, which forces operators to add buffer time between line segments, reducing throughput and increasing the time motors run at partial load — one of the least efficient operating points on a motor’s efficiency curve.

Deploying the 1783-BMS10CGN at each cell level, with IGMP snooping enabled, confines multicast I/O traffic to only the ports that need it. This alone can reduce network utilization by 30–40% in dense I/O environments, freeing controller bandwidth and allowing tighter PID loop tuning on the drives. Tighter loops mean motors spend less time hunting for setpoint, reducing reactive current draw and improving power factor — a measurable energy saving that compounds across a multi-line facility.

From a maintenance perspective, the switch’s SNMP and RMON monitoring capabilities allow network engineers to track port-level traffic statistics. Sudden increases in error frames or broadcast traffic on a specific port often indicate a failing I/O module or a misconfigured drive — issues that, if left undetected, lead to nuisance trips and the energy cost of repeated motor restarts. Proactive network monitoring through the 1783-BMS10CGN effectively extends the predictive maintenance program from the mechanical domain into the network layer.

Every unit shipped undergoes full functional testing prior to dispatch. Stock is maintained for immediate availability, and all units are covered by a warranty terms confirmed during quotation, ensuring that your production line investment is protected from day one.

Product Sourcing FAQ

Q1: How does the 1783-BMS10CGN contribute to operational stability in an EtherNet/IP system?
By managing QoS and VLAN segmentation, the switch ensures that drive commands and I/O data are delivered with minimal latency. This allows PLC scan times to be optimized and drive control loops to be tightened, reducing motor hunting and reactive energy consumption. In multi-drive environments with PowerFlex 525 or PowerFlex 755 units, this can translate to measurable reductions in kWh per production cycle.

Q2: Is the 1783-BMS10CGN compatible with existing Stratix 5700 and Stratix 8000 infrastructure?
Yes. The 1783-BMS10CGN is fully compatible with the Stratix 5700 family and can uplink to Stratix 8000 distribution switches via its Gigabit SFP ports. It integrates with Studio 5000 Logix Designer and FactoryTalk Network Manager for centralized configuration and monitoring, making it a drop-in addition to existing Rockwell Automation network architectures.

Q3: What is the recommended replacement or upgrade path for older unmanaged switches?
Facilities running unmanaged switches in EtherNet/IP environments should prioritize replacement with the 1783-BMS10CGN or similar Stratix 5700 models. The migration process involves mapping existing device connections, configuring VLANs to match traffic patterns, and enabling IGMP snooping. ZYPLC can supply the hardware with pre-shipment testing completed, minimizing installation risk.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All 1783-BMS10CGN units supplied by ZYPLC are tested for port functionality, power-up behavior, and basic switching performance before dispatch. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Units are shipped with documentation and are available from stock for fast deployment.
