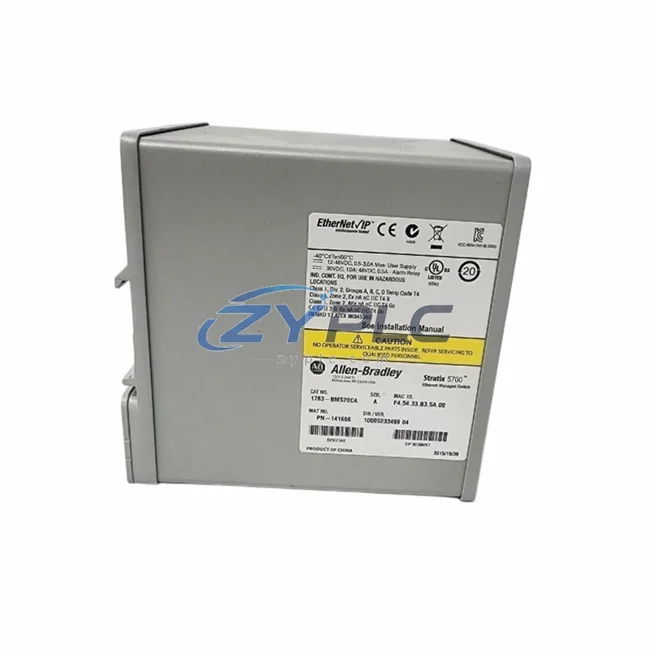

Allen-Bradley 1783-BMS20CA Industrial Network Interface for Stratix 5700 Systems

Allen-Bradley 1783-BMS20CA: Industrial Data Link for Stratix 5700 Smart Factory Networks

The Allen-Bradley 1783-BMS20CA is a 20-port managed Ethernet switch from the Rockwell Automation Stratix 5700 series, purpose-engineered for deterministic, high-availability industrial network communication. Designed to serve as the backbone of plant-floor connectivity, this switch enables seamless data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, and enterprise-level MES/ERP platforms. Whether deployed in a greenfield smart factory or integrated into an existing brownfield automation architecture, the 1783-BMS20CA delivers the network stability, protocol intelligence, and real-time throughput that modern industrial environments demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1783-BMS20CA sits at the convergence point of the plant-floor network, aggregating data streams from dozens of connected automation assets. At the field level, Allen-Bradley 1734 POINT I/O modules and 1756 ControlLogix PLCs communicate over EtherNet/IP, with the switch managing traffic prioritization through DSCP and 802.1p QoS policies to ensure time-critical control packets are never delayed by bulk data transfers.

Upstream, the switch connects to Allen-Bradley PowerFlex 755 variable frequency drives via EtherNet/IP, enabling real-time speed feedback, fault diagnostics, and parameter adjustment without interrupting production cycles. Simultaneously, Stratix 5400 distribution-layer switches aggregate multiple 1783-BMS20CA access-layer units into a resilient ring topology using Device Level Ring (DLR) protocol, achieving sub-3ms failover times that protect against single-point network failures on the production line.

At the monitoring layer, PanelView Plus 7 HMI terminals connect directly to the switch, pulling live process data from ControlLogix controllers and presenting operator dashboards with zero perceptible latency. The switch’s IGMP snooping capability ensures that multicast EtherNet/IP I/O traffic is delivered only to subscribed devices, preventing unnecessary bandwidth consumption across the network fabric.

For remote I/O expansion, Allen-Bradley 1738 ArmorPOINT I/O modules installed in harsh field environments connect back to the control cabinet through the 1783-BMS20CA’s SFP fiber uplink ports, providing electrical isolation and extended transmission distances up to 2km without signal degradation. This architecture is particularly valuable in large-footprint facilities such as automotive assembly plants, water treatment stations, and oil & gas processing sites.

At the SCADA integration layer, the switch bridges plant-floor EtherNet/IP traffic to FactoryTalk View Site Edition servers and third-party SCADA platforms such as Ignition by Inductive Automation. Protocol gateway devices — including the ProSoft Technology MVI56E-MNET Modbus TCP gateway — can be connected through the switch to translate legacy Modbus RTU signals from older field instruments into EtherNet/IP data objects consumable by Studio 5000 Logix Designer applications. Edge computing nodes such as the Cisco IE-4000 industrial router can also be integrated to push aggregated production KPIs to cloud-based analytics platforms, completing the data chain from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A facility may simultaneously operate legacy Modbus RTU devices, mid-generation PROFIBUS DP networks, and modern EtherNet/IP systems — each forming a data silo that prevents unified visibility and centralized control. The Allen-Bradley 1783-BMS20CA addresses this directly by providing a managed Ethernet backbone that supports protocol-agnostic data aggregation at the network layer.

By deploying the 1783-BMS20CA as the access-layer switch in a converged plant network, engineers can connect protocol gateway modules alongside native EtherNet/IP devices on the same physical infrastructure. VLAN segmentation (IEEE 802.1Q) isolates traffic between control, I/O, HMI, and IT domains, eliminating cross-domain interference while maintaining full data accessibility for authorized SCADA and MES systems. This approach transforms previously isolated production cells into transparent, interconnected data sources that feed real-time dashboards, predictive maintenance algorithms, and OEE (Overall Equipment Effectiveness) reporting engines.

Remote monitoring and diagnostics are further enhanced through the switch’s Cisco IOS-based management interface, which supports SNMP v1/v2c/v3, RMON, and syslog event forwarding. Network administrators can monitor port utilization, detect cable faults, identify unauthorized device connections, and receive alarm notifications — all without physical access to the control cabinet. This capability is critical for multi-site manufacturers who need centralized IT/OT network oversight across geographically distributed facilities.

System scalability is built into the Stratix 5700 architecture. As production lines expand, additional 1783-BMS20CA units can be cascaded into the existing ring topology without redesigning the network. The DLR protocol automatically incorporates new nodes into the redundancy scheme, and the switch’s port-based VLAN configuration can be updated remotely through FactoryTalk Network Manager — minimizing downtime during network expansion events.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 1783-BMS20CA in an EtherNet/IP control network?
The 1783-BMS20CA delivers store-and-forward switching with port-to-port latency typically under 10 microseconds for standard Ethernet frames. When combined with DLR ring redundancy, network recovery from a single link failure occurs in under 3 milliseconds, ensuring that EtherNet/IP implicit I/O connections remain within their configured RPI (Requested Packet Interval) tolerances — critical for motion control and high-speed discrete I/O applications.

Q2: Is the 1783-BMS20CA compatible with PROFINET and third-party industrial protocols?
While the 1783-BMS20CA is natively optimized for EtherNet/IP and Rockwell Automation ecosystems, it operates as a standard IEEE 802.3 managed Ethernet switch at the physical and data link layers, making it fully compatible with PROFINET, Modbus TCP, BACnet/IP, and other Ethernet-based industrial protocols. Protocol-specific features such as PROFINET MRP ring redundancy require a PROFINET-native switch, but the 1783-BMS20CA can coexist on the same network segment with PROFINET devices without interference.

Q3: How does the 1783-BMS20CA support network stability in high-vibration or high-EMI industrial environments?
The Stratix 5700 series is designed to IEC 61131-2 environmental standards, with conformal coating options available for high-humidity and corrosive atmospheres. The switch’s 24V DC redundant power input ensures continued operation during primary power supply failures. DIN-rail mounting and M12 connector variants (on applicable models) provide mechanical stability in high-vibration environments such as press lines, CNC machining centers, and mobile equipment platforms.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every Allen-Bradley 1783-BMS20CA unit supplied by ZYPLC undergoes full functional verification prior to shipment, including port connectivity testing, management interface validation, VLAN configuration verification, and power input redundancy checks. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Our technical team provides post-sale support for network integration, configuration guidance, and replacement logistics — ensuring minimal disruption to your production schedule.
