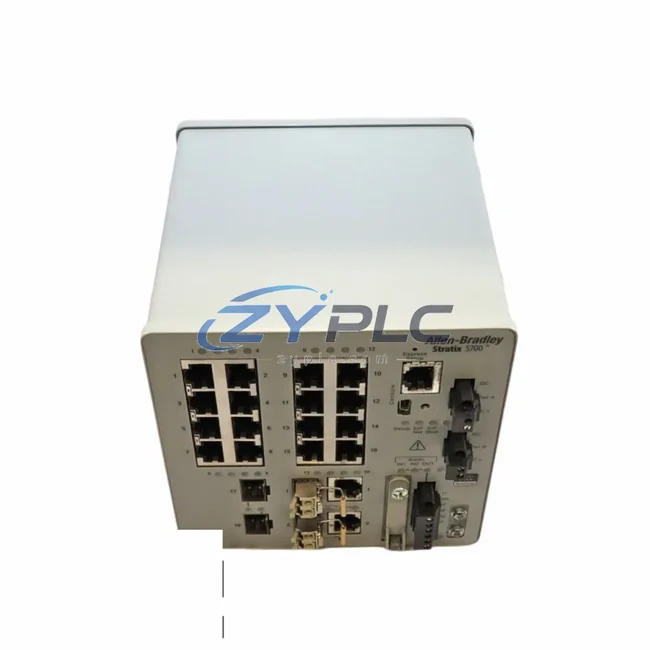

Allen-Bradley 1783-BMS20CGL Switch Stratix 5700

Allen-Bradley 1783-BMS20CGL Switch for Stratix 5700 Automation

The Allen-Bradley 1783-BMS20CGL is a managed industrial Ethernet switch module from the Stratix 5700 series, engineered to deliver high-throughput, low-latency network communication across demanding production environments. Designed for seamless integration into Rockwell Automation control architectures, this module plays a critical role in reducing unplanned downtime risk at the network layer — a factor often overlooked in plant-wide efficiency programs. By enabling deterministic EtherNet/IP communication between PLCs, drives, I/O modules, and HMIs, the 1783-BMS20CGL ensures that every control signal reaches its destination with minimal overhead, eliminating the retransmission cycles and packet collisions that silently inflate energy costs and degrade production throughput.

In modern industrial facilities, network infrastructure is the backbone of maintenance-focused automation. When a Logix 5000-based controller such as the Allen-Bradley ControlLogix L83E or CompactLogix L33ER needs to coordinate motion sequences with a PowerFlex 755 variable frequency drive, the quality and reliability of the Ethernet layer directly determines how efficiently the drive responds to speed and torque commands. A poorly managed network introduces jitter and latency that forces drives to operate in suboptimal states, consuming more power than necessary. The 1783-BMS20CGL eliminates this inefficiency through managed VLAN segmentation, QoS prioritization, and IGMP snooping — ensuring that time-critical control traffic is never delayed by lower-priority data streams.

Beyond drive coordination, the 1783-BMS20CGL supports the real-time data flow required for condition monitoring systems. When paired with a PowerMonitor 5000 or PowerMonitor 1000 energy meter, the switch enables continuous transmission of power consumption data — voltage, current, power factor, and harmonic distortion — to the control system and historian. This data feeds directly into energy dashboards and predictive maintenance algorithms, allowing plant engineers to identify motors running at poor power factor, detect early signs of bearing wear in servo systems, and schedule maintenance before unplanned downtime occurs. The result is a measurable reduction in both unplanned downtime and maintenance costs.

The Stratix 5700 platform, of which the 1783-BMS20CGL is a core component, is fully compatible with Rockwell Automation’s Studio 5000 Logix Designer environment and integrates natively with FactoryTalk View SE for HMI-level network diagnostics. This means operators can monitor switch port utilization, detect network anomalies, and reconfigure traffic priorities directly from the control room — without requiring a separate IT infrastructure team. In high-cycle manufacturing lines where production rhythm is measured in milliseconds, this level of network visibility translates directly into improved OEE (Overall Equipment Effectiveness) and reduced idle operating load between production batches.

For servo-driven applications, the 1783-BMS20CGL provides the low-latency backbone required by Kinetix 5700 multi-axis servo drives operating in synchronized motion profiles. When multiple servo axes must coordinate pick-and-place, cutting, or forming operations, the switch’s managed architecture ensures that EtherNet/IP cyclic data — position feedback, velocity commands, and torque limits — is transmitted with the consistency required for tight motion synchronization. Poorly synchronized servo systems not only produce defective parts but also consume excess energy through repeated acceleration and deceleration cycles caused by timing errors. The 1783-BMS20CGL eliminates this source of unplanned downtime at the infrastructure level.

In distributed I/O architectures using Point I/O or Flex I/O modules, the switch manages the high-frequency polling cycles between the controller and remote I/O racks. Efficient I/O communication reduces the controller scan time overhead, allowing the PLC to execute maintenance planning logic — such as load shedding, demand response, and motor sequencing — with greater precision. This is particularly valuable in facilities participating in utility demand response programs, where the ability to shed non-critical loads within seconds can result in significant energy cost savings.

Every 1783-BMS20CGL unit supplied by ZYPLC undergoes a comprehensive pre-shipment functional test, including port-by-port communication verification, VLAN configuration validation, and power consumption measurement under load. Units are confirmed to meet original Rockwell Automation performance specifications before dispatch. All units are covered by a warranty terms confirmed during quotation, and ZYPLC maintains ready stock to support urgent project timelines and MRO replacement requirements.

Product Specification Table

System Compatibility and Application

The 1783-BMS20CGL sits at the center of an industrial control architecture that spans from the field device level to the enterprise data layer. At the field level, Allen-Bradley Point I/O 1734-AENT adapter modules connect distributed sensor and actuator networks to the Ethernet backbone, transmitting real-time process data — temperature, pressure, flow rate, and motor status — that the control system uses to make energy-conscious decisions. The switch’s managed architecture ensures these high-frequency I/O updates do not interfere with the motion control traffic generated by Kinetix 5700 servo drives executing synchronized multi-axis profiles.

At the drive layer, PowerFlex 755 AC drives rely on the EtherNet/IP network managed by the 1783-BMS20CGL to receive speed reference commands and return actual speed, current draw, and fault status to the ControlLogix L85E controller. The switch’s QoS configuration prioritizes this cyclic drive data, ensuring that the controller can implement operational-efficiency strategies such as sleep mode activation during low-demand periods, regenerative braking energy recovery, and dynamic speed adjustment based on real-time load feedback from PowerMonitor 5000 energy meters installed at the MCC (Motor Control Center).

At the monitoring layer, the 1783-BMS20CGL enables continuous data flow from PowerMonitor 1000 and PowerMonitor 5000 units to the FactoryTalk Historian, building a time-series energy database that supports both real-time dashboards and long-term trend analysis. This data is visualized through FactoryTalk View SE HMI panels, giving operators immediate visibility into operating load by production zone, shift, and product type. When consumption anomalies are detected — such as a motor drawing 15% more current than its baseline — the system can trigger a maintenance work order through integration with a CMMS, preventing the unplanned downtime associated with degraded equipment running to failure.

The switch also supports integration with Rockwell Automation’s iTRAK intelligent track system and MagneMotion conveyance platforms, where precise network timing is essential for coordinating the independent motion of multiple carriers. In these applications, the 1783-BMS20CGL’s managed switching capability ensures that the high-frequency position and velocity updates required for carrier synchronization are delivered without the latency variation that would cause carriers to bunch, gap, or collide — all of which result in production stoppages and the associated energy cost of restarting and re-synchronizing the system.

Maintenance and Replacement Notes

In automotive body assembly lines, the 1783-BMS20CGL has been deployed to manage the EtherNet/IP network connecting ControlLogix controllers, Kinetix 5700 servo systems, and PowerFlex 755 drives across welding, stamping, and material handling stations. By providing a stable, low-latency network backbone, the switch enables the production line controller to implement demand-based motor control — spinning down conveyor drives during buffer accumulation periods and ramping them back up precisely when the downstream station signals readiness. This eliminates the continuous low-load running that accounts for a significant portion of motor load in traditional fixed-speed conveyor systems.

In food and beverage processing facilities, the switch supports the integration of condition monitoring into CIP (Clean-In-Place) cycle management. By connecting PowerMonitor energy meters and flow control valves to the same EtherNet/IP network managed by the 1783-BMS20CGL, the control system can optimize pump speeds during CIP cycles using PowerFlex 525 drives, reducing water and chemical consumption while maintaining cleaning efficacy. The switch’s fiber uplink ports provide the electrical isolation required in washdown environments, ensuring reliable communication even in the presence of high-frequency electrical noise from variable speed drives.

In semiconductor and electronics manufacturing, where cleanroom HVAC systems represent a major energy load, the 1783-BMS20CGL connects the building automation controllers to the production control network, enabling coordinated demand response between production scheduling and HVAC operation. When production is scheduled to run at reduced capacity during off-peak hours, the control system can automatically reduce HVAC airflow setpoints, saving significant energy without compromising cleanroom classification. This level of cross-system coordination is only possible with a reliable, managed Ethernet infrastructure at its core.

ZYPLC maintains inventory of the 1783-BMS20CGL and related Stratix 5700 components to support both planned capital projects and emergency MRO replacements. All units are pre-tested against Rockwell Automation factory specifications, and the warranty terms confirmed during quotation covers both functional performance and communication integrity. Fast dispatch is available for urgent requirements, with global shipping to support multinational manufacturing operations.

Product Sourcing FAQ

Q1: How does the 1783-BMS20CGL contribute to measurable operational stability in a production facility?
The switch reduces unplanned downtime at the network infrastructure level by eliminating packet retransmissions, reducing drive control jitter, and enabling real-time condition monitoring data flow. When drives receive precise, timely speed commands without network-induced delays, they operate more efficiently and consume less power. Integration with PowerMonitor energy meters via the same EtherNet/IP network provides the data visibility needed to identify and eliminate additional sources of unplanned downtime across the facility.

Q2: Is the 1783-BMS20CGL compatible with existing Rockwell Automation control systems?
Yes. The 1783-BMS20CGL is fully compatible with ControlLogix, CompactLogix, and GuardLogix controllers, as well as PowerFlex drive families, Kinetix servo systems, Point I/O and Flex I/O distributed I/O platforms, and FactoryTalk software suite including View SE and Historian. It integrates natively into Studio 5000 Logix Designer for configuration and diagnostics.

Q3: Can the 1783-BMS20CGL replace an existing unmanaged switch in my EtherNet/IP network?
Yes, and the upgrade typically delivers immediate benefits in network stability and control system performance. The managed features — VLAN segmentation, QoS prioritization, and IGMP snooping — reduce multicast flooding and prioritize time-critical control traffic, which is not possible with unmanaged switches. ZYPLC can advise on configuration best practices to ensure a smooth transition with minimal production disruption.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the testing process?
Every 1783-BMS20CGL unit supplied by ZYPLC undergoes pre-shipment functional testing that includes port-by-port communication verification, VLAN and QoS configuration validation, SFP fiber port testing, and power consumption measurement. The warranty terms confirmed during quotation covers functional performance failures under normal operating conditions. ZYPLC provides technical support for installation and configuration, and replacement units are dispatched promptly in the event of a warranty claim.
