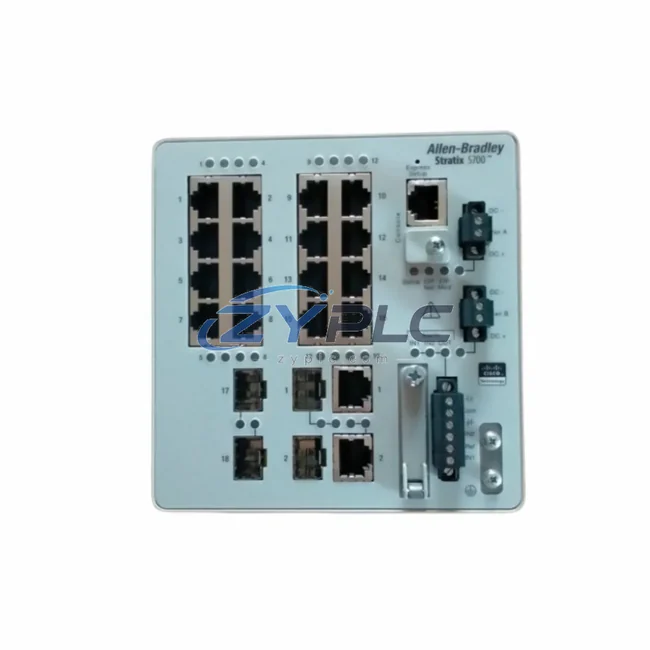

Allen-Bradley 1783-BMS20CGN Managed Switch for Stratix 5700

Allen-Bradley 1783-BMS20CGN Managed Switch for Stratix 5700

The Allen-Bradley 1783-BMS20CGN is a fully managed Ethernet switch engineered as a core network-layer component within Rockwell Automation’s Stratix 5700 series. Designed for deployment in demanding industrial control environments, this switch delivers deterministic, high-availability Ethernet connectivity across the control, I/O, network, power, HMI, and execution layers of a modern automation architecture. Rather than functioning as a standalone device, the 1783-BMS20CGN is purpose-built to serve as the communication backbone that binds together every tier of a distributed control system — from the ControlLogix or CompactLogix CPU at the top of the hierarchy down to field-level I/O modules, variable frequency drives, and safety relay assemblies on the plant floor.

In a layered automation system, network consistency is not optional — it is the foundation upon which system reliability, redundancy, and scalability are built. The 1783-BMS20CGN addresses this requirement through its support for EtherNet/IP, Device Level Ring (DLR) topology, and IGMP snooping, enabling seamless integration with Rockwell Automation’s Integrated Architecture framework. Its managed feature set — including VLAN segmentation, QoS prioritization, RSTP/MSTP spanning tree, and port mirroring — allows control engineers to design networks that isolate traffic, protect real-time control data, and maintain uptime even during partial network failures.

When deployed alongside a 1756-L85E ControlLogix controller or a 1769-L33ER CompactLogix processor, the 1783-BMS20CGN ensures that cyclic EtherNet/IP I/O traffic from 1734 POINT I/O modules or 1756 ControlLogix I/O adapters reaches the CPU with minimal jitter and zero packet loss under normal operating conditions. This is critical in process control applications where scan-time consistency directly affects loop stability and alarm response accuracy. The switch’s managed VLAN architecture also allows engineers to logically separate the control network from the supervisory SCADA or MES layer, reducing the risk of broadcast storms or unauthorized access propagating into the real-time control domain.

From a redundancy design perspective, the 1783-BMS20CGN supports Device Level Ring (DLR) topology, which enables sub-millisecond network recovery in the event of a single cable or node failure. This capability is particularly valuable in continuous process industries — such as petrochemical refining, water treatment, and power generation — where even a brief network interruption can trigger costly process upsets or safety system activations. When combined with a redundant power supply module such as the 1783-SFP1GSX or paired with a Stratix 5400 core switch for hierarchical ring architectures, the 1783-BMS20CGN forms part of a resilient, self-healing network fabric that meets the uptime requirements of Tier 1 industrial operations.

At the HMI and supervisory layer, the 1783-BMS20CGN provides reliable connectivity for PanelView Plus 7 terminals and FactoryTalk View SE clients, ensuring that operator displays receive real-time tag updates without latency spikes that could mask process anomalies. QoS configurations on the switch allow HMI traffic to be deprioritized relative to real-time I/O and safety communications, maintaining control system determinism even during periods of high supervisory polling activity. This traffic management capability is especially important in large-scale systems where dozens of HMI clients may simultaneously query historian servers or execute report generation tasks.

For drive and motion control integration, the 1783-BMS20CGN supports direct EtherNet/IP connectivity to PowerFlex 525 and PowerFlex 755 variable frequency drives, enabling closed-loop speed and torque control over standard Ethernet infrastructure. This eliminates the need for dedicated DeviceNet or ControlNet cabling in new installations, reducing panel wiring complexity and simplifying commissioning. The switch’s port-level diagnostics and SNMP v3 management capabilities allow maintenance engineers to monitor link status, traffic utilization, and error counters from a centralized network management platform — reducing mean time to repair (MTTR) and supporting predictive maintenance strategies.

The 1783-BMS20CGN is equally well-suited for brownfield modernization projects, where existing legacy networks must be segmented and upgraded without disrupting ongoing production. Its compact form factor and DIN-rail mounting compatibility allow it to be installed within existing control panels alongside 1492 terminal blocks, 700-series safety relays, and Bulletin 140M motor protection circuit breakers, maximizing panel space utilization while delivering enterprise-grade network management capabilities at the field level.

All units supplied by ZYPLC are sourced from verified supply channels, fully tested prior to dispatch, and covered by a warranty terms confirmed during quotation. Our technical team provides system integration support to assist with network topology design, VLAN configuration, DLR ring commissioning, and compatibility verification across your existing Rockwell Automation architecture. Whether you are expanding an existing Stratix 5700 network or designing a new EtherNet/IP backbone from scratch, ZYPLC maintains ready stock of the 1783-BMS20CGN to support your project timeline.

Product Specification Table

System Compatibility Notes

The 1783-BMS20CGN achieves its full value when integrated as part of a coordinated Rockwell Automation control architecture. At the controller layer, it provides the primary EtherNet/IP backplane for a 1756-L85E ControlLogix or 1769-L33ER CompactLogix CPU, ensuring that all downstream I/O and drive communications are routed through a single, managed network fabric. Distributed I/O nodes — including 1734 POINT I/O adapters and 1756 ControlLogix remote I/O chassis — connect directly to the switch’s copper ports, with IGMP snooping ensuring that multicast EtherNet/IP traffic is delivered only to subscribed nodes, preventing unnecessary bandwidth consumption across the ring.

At the power layer, the switch operates from a 24V DC bus typically supplied by a 1606-XLP power supply or equivalent Bulletin 1606 regulated DC source, ensuring stable operation across the full industrial temperature range. For network uplink and inter-switch connectivity, the four combo SFP/copper uplink ports support fiber connections to a Stratix 5400 core switch or to a plant-wide backbone ring, enabling hierarchical network architectures that scale from single-machine cells to plant-wide integrated systems.

Drive integration is achieved through direct EtherNet/IP connections to PowerFlex 525 and PowerFlex 755 variable frequency drives, with the switch’s QoS configuration ensuring that drive control traffic is prioritized appropriately relative to supervisory and historian communications. At the HMI layer, PanelView Plus 7 operator terminals connect via standard copper ports, with VLAN segmentation isolating operator traffic from real-time control communications. Safety system integration is supported through connections to 1791DS CompactBlock Guard I/O modules, with the switch’s port security features preventing unauthorized devices from joining the safety network segment.

Industrial Application Notes

In manufacturing and discrete assembly environments, the 1783-BMS20CGN serves as the cell-level network switch connecting robot controllers, servo drives, vision systems, and barcode readers to the plant EtherNet/IP backbone. Its DLR support ensures that a single cable fault does not interrupt production, while VLAN segmentation isolates machine-level traffic from the MES integration layer.

In power generation and electrical substation applications, the switch provides the communication infrastructure for protection relay coordination, SCADA polling, and maintenance planning system integration. Its SNMP v3 management and port-level diagnostics support IEC 62443 cybersecurity compliance requirements, making it suitable for deployment in critical infrastructure environments subject to NERC CIP or equivalent regulatory frameworks.

In petrochemical and refining facilities, the 1783-BMS20CGN supports continuous process control architectures where network availability directly impacts process safety. Its sub-millisecond DLR recovery time ensures that safety instrumented system (SIS) communications are not interrupted by network faults, supporting SIL 2 process safety architectures when deployed in accordance with Rockwell Automation’s system design guidelines.

In water and wastewater treatment plants, the switch provides reliable connectivity across geographically distributed pump stations and treatment process areas, supporting remote I/O architectures that minimize field cabling costs while maintaining deterministic control performance. In mining and metals processing applications, its wide operating temperature range and robust DIN-rail construction ensure reliable operation in harsh environments subject to vibration, dust, and temperature extremes.

Product Compatibility FAQ

Q1: Is the 1783-BMS20CGN compatible with existing Stratix 5700 network architectures, and can it be added to a live DLR ring without disrupting production?
A: Yes. The 1783-BMS20CGN is fully compatible with all Stratix 5700 series switches and can be integrated into an existing DLR ring topology using the ring supervisor failover procedure documented in Rockwell Automation publication ENET-UM001. Adding a new node to a live DLR ring requires temporarily opening the ring at the insertion point, connecting the new switch, and allowing the ring supervisor to re-establish the closed-ring topology — a process that typically completes within seconds and causes only a brief, controlled network interruption. ZYPLC’s technical team can provide step-by-step commissioning guidance as part of our system integration support service.

Q2: What configuration is required to support EtherNet/IP I/O with a ControlLogix controller, and how should VLANs be structured for a mixed control and supervisory network?
A: For EtherNet/IP I/O operation, the 1783-BMS20CGN should be configured with IGMP snooping enabled on all ports carrying multicast I/O traffic, with the ControlLogix controller’s EtherNet/IP module assigned to the native VLAN. Supervisory and HMI traffic should be segregated into a separate VLAN with appropriate inter-VLAN routing policies applied at the core switch level. QoS markings should prioritize EtherNet/IP implicit messaging (DSCP EF or CS6) over explicit messaging and supervisory traffic. Rockwell Automation’s Converged Plantwide Ethernet (CPwE) design guide provides detailed VLAN and QoS configuration templates that are directly applicable to the 1783-BMS20CGN.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance and spare parts supply?
A: The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions. In the event of a warranty claim, ZYPLC will provide a replacement unit or repair service within an agreed lead time, minimizing production downtime. For long-term maintenance planning, ZYPLC maintains ongoing stock of the 1783-BMS20CGN and related Stratix 5700 components, supporting multi-year spare parts programs for critical infrastructure operators. Our system integration support extends beyond initial commissioning to include firmware upgrade guidance, network audit services, and end-of-life migration planning as Rockwell Automation’s product lifecycle evolves.
