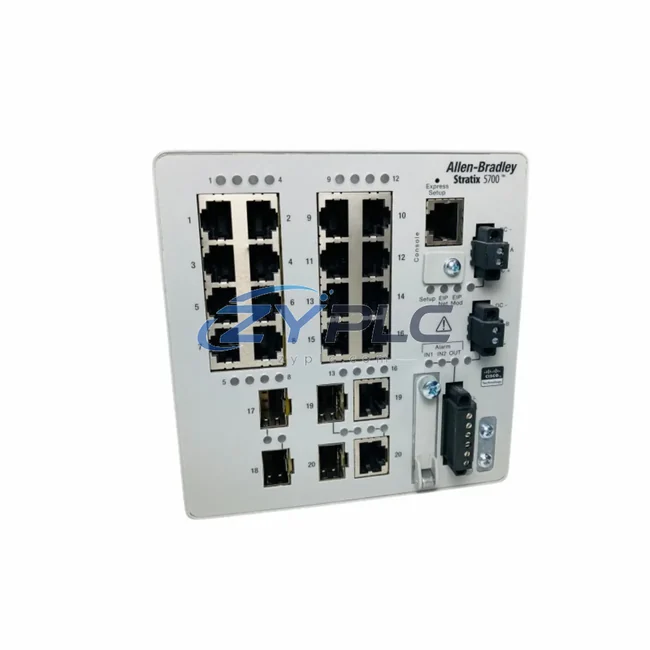

Allen-Bradley 1783-BMS20CL Switch Stratix 5700

Allen-Bradley 1783-BMS20CL Switch Stratix 5700: Precision Network Control for Optimized Automation

The Allen-Bradley 1783-BMS20CL is a high-performance managed Ethernet switch from the Stratix 5700 series, engineered specifically for industrial automation environments where network reliability, deterministic communication, and energy efficiency are mission-critical. Designed to integrate seamlessly into Rockwell Automation’s Connected Enterprise architecture, this 20-port switch delivers low-latency EtherNet/IP communication while minimizing idle-state power draw — making it a cornerstone component for factories aiming to reduce energy overhead without sacrificing control precision.

In modern production lines, network infrastructure is no longer a passive backbone — it is an active participant in maintenance planning. The 1783-BMS20CL supports IEEE 802.3az Energy Efficient Ethernet (EEE), which dynamically reduces power consumption during low-traffic periods. This directly translates to measurable reductions in facility energy costs, particularly in multi-shift operations where network segments experience variable load cycles throughout the day.

Product Specification Table

System Compatibility and Application

The 1783-BMS20CL is most effective when deployed as part of a fully integrated, industrial automation system. In a typical Rockwell-based control system, this switch sits at the cell/area zone layer, connecting field devices — including Allen-Bradley PowerFlex 755 variable frequency drives, Kinetix 5700 servo drives, and distributed 1734 POINT I/O modules — back to the supervisory control layer running on ControlLogix 5580 PLCs.

When a PowerFlex 525 AC drive adjusts motor speed in response to a load change, the command originates from the PLC and travels through the Stratix 5700 network. The 1783-BMS20CL‘s Quality of Service (QoS) prioritization ensures that motion-critical EtherNet/IP packets are delivered with deterministic latency, preventing the micro-delays that cause motor overshoot and wasted energy cycles. Simultaneously, the switch’s IGMP snooping capability manages multicast traffic from FactoryTalk View SE HMI stations, ensuring that condition monitoring dashboards receive real-time data without flooding the network with unnecessary broadcast traffic.

For power quality monitoring, the 1783-BMS20CL provides the communication backbone connecting PowerMonitor 5000 energy meters to the FactoryTalk Energy Manager platform. This integration enables per-circuit energy tracking at the machine level — a capability that is impossible without a managed switch that supports VLAN segmentation and port mirroring. Engineers can isolate energy data streams from production control traffic, ensuring that power monitoring never competes with real-time control signals.

In facilities running Stratix 5400 switches at the distribution layer, the 1783-BMS20CL functions as an access-layer device, extending the managed network to individual machine cells. Its fiber SFP ports support long-distance runs to remote I/O panels housing 1756 ControlLogix I/O modules, eliminating the copper distance limitations that force engineers to install additional repeaters — each of which adds to the facility’s energy footprint.

Maintenance and Replacement Notes

Consider a mid-scale automotive parts assembly line running three shifts. The line includes twelve servo axes controlled by Kinetix 5700 servo drives, four conveyor motors driven by PowerFlex 755 VFDs, and a vision inspection station connected via EtherNet/IP. During shift changeovers, the line enters a low-activity state where most drives are in standby. Without a managed switch, the network continues to consume full power regardless of traffic load.

With the 1783-BMS20CL and IEEE 802.3az EEE enabled, ports connected to idle devices automatically reduce their power state, cutting per-port consumption by up to 50% during low-traffic intervals. Across a 20-port switch operating in a three-shift environment with two changeover periods per shift, this translates to meaningful annual operational stability — particularly when multiplied across multiple switch instances in a large facility.

Beyond operational stability, the switch’s RSTP (Rapid Spanning Tree Protocol) support ensures that network redundancy is maintained without the convergence delays that cause unplanned downtime. In production environments where a single minute of downtime can cost thousands in lost output, the 1783-BMS20CL‘s sub-second failover capability directly protects production throughput and equipment utilization rates.

Port-level diagnostics accessible through the switch’s web interface and Studio 5000 integration allow maintenance engineers to identify degraded cables, excessive collision rates, or bandwidth saturation before they cause production interruptions. This predictive maintenance capability reduces unplanned downtime and extends the service life of connected field devices — lowering the total cost of ownership across the automation system.

Every 1783-BMS20CL unit supplied by ZYPLC undergoes full functional testing prior to shipment, including port-by-port connectivity verification, firmware validation, and power-on self-test confirmation. Units are shipped with a warranty terms confirmed during quotation, and our inventory is maintained to support rapid dispatch for both planned projects and emergency replacement scenarios.

Product Sourcing FAQ

Q1: How much energy can the 1783-BMS20CL save compared to an unmanaged switch?
The 1783-BMS20CL supports IEEE 802.3az Energy Efficient Ethernet, which reduces per-port power consumption by up to 50% during low-traffic or idle states. In a 20-port deployment with mixed active and standby devices — typical in shift-based manufacturing — the aggregate operational stability across the switch can be significant over a full operating year. Additionally, by eliminating broadcast storms and optimizing multicast traffic through IGMP snooping, the switch reduces unnecessary processing load on connected PLCs and drives, indirectly lowering their energy consumption as well.

Q2: Is the 1783-BMS20CL compatible with existing Rockwell Automation control systems?
Yes. The 1783-BMS20CL is fully compatible with Rockwell Automation’s EtherNet/IP ecosystem, including ControlLogix, CompactLogix, and GuardLogix PLC platforms, as well as FactoryTalk View, FactoryTalk Energy Manager, and Studio 5000 Logix Designer. It supports standard Cisco IOS-based configuration, making it familiar to engineers already working with Stratix 5400 or Stratix 8000 switches in the same facility.

Q3: Can this switch replace a failed unit in an existing Stratix 5700 installation?
Yes. The 1783-BMS20CL is a direct form-factor and firmware-compatible replacement for existing Stratix 5700 deployments with the same port configuration. Configuration files can be restored from backup, minimizing changeover time. ZYPLC supports RFQ sourcing for this model specifically to support emergency replacement scenarios, with same-day or next-day dispatch available depending on destination. All units are tested before shipment and covered by a warranty terms confirmed during quotation.

Q4: What is the testing and warranty process for units purchased from ZYPLC?
Every 1783-BMS20CL unit undergoes a pre-shipment functional test covering port connectivity, power-on self-test, and firmware integrity verification. Units are supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Our technical team can provide configuration support and, where required, coordinate warranty replacement logistics to minimize production impact.
