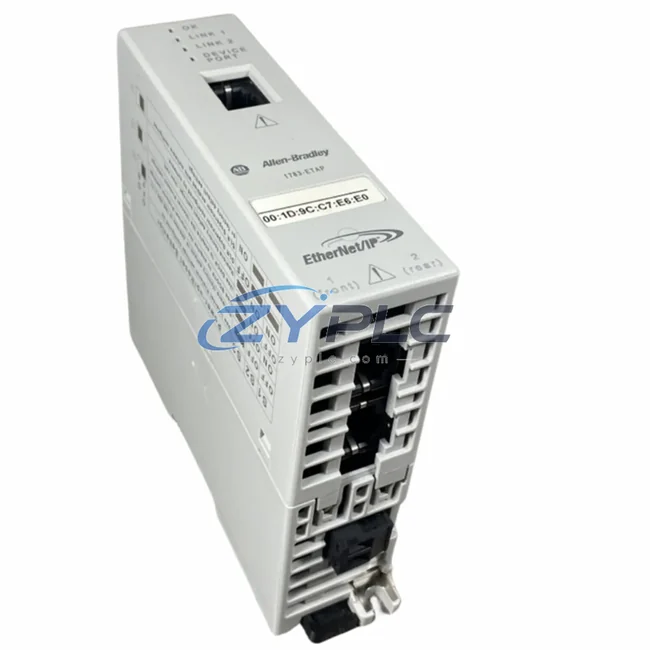

Allen-Bradley 1783-ETAP Ethernet TAP for Stratix

Allen-Bradley 1783-ETAP Ethernet TAP for Stratix: Control System and Upstream–Downstream Coordination

The Allen-Bradley 1783-ETAP is a passive, fail-safe Ethernet TAP module engineered for seamless system integration within Rockwell Automation’s Stratix industrial EtherNet/IP infrastructure. Operating transparently at the physical layer, the 1783-ETAP enables engineers and system integrators to connect diagnostic tools, protocol analyzers, and network management platforms without interrupting live traffic or altering the logical topology of the control system. In modern industrial automation architectures—where uptime, data integrity, and network visibility are non-negotiable—the 1783-ETAP serves as a foundational element that bridges operational continuity with proactive network intelligence, all backed by a warranty terms confirmed during quotation on every unit shipped by ZYPLC.

Within a layered automation system, the 1783-ETAP occupies a critical position at the network layer, sitting inline between switches, controllers, and field devices. Its passive copper TAP design ensures that even in the event of a power loss to the TAP itself, the monitored network segment remains fully operational—a key consideration for high-availability architectures in process control, power distribution, and discrete manufacturing environments. This fail-safe characteristic makes the 1783-ETAP an ideal companion to managed switches such as the Stratix 5700 and Stratix 8000, where uninterrupted communication between the ControlLogix L7x or CompactLogix L3x CPU and downstream I/O modules is paramount.

From a system architecture perspective, the 1783-ETAP integrates naturally into both star and linear topologies, supporting Device Level Ring (DLR) and standard switched Ethernet configurations. When deployed alongside a Stratix 5400 or Stratix 5410 managed switch, the TAP provides a dedicated mirror port output that feeds into network analyzers or SCADA monitoring stations without consuming a managed switch port or introducing latency into the control path. This architecture preserves the deterministic communication required by time-sensitive I/O modules such as the 1756-IB16 digital input module or the 1756-OF8 analog output module operating within a 1756 ControlLogix chassis.

The 1783-ETAP also plays a significant role in redundancy and fault-tolerance design. In systems where a 1756-RM2 redundancy module pairs primary and secondary ControlLogix controllers, maintaining continuous network visibility across both control paths is essential for rapid switchover diagnostics. The TAP allows maintenance engineers to monitor EtherNet/IP traffic on either path without physically re-patching cables, reducing mean time to repair (MTTR) and supporting the warranty terms confirmed during quotation service commitment that ZYPLC provides on every unit shipped.

At the I/O layer, the 1783-ETAP supports diagnostic visibility into communication between the controller backplane and distributed I/O adapters such as the 1734 POINT I/O system or the 1794 FLEX I/O platform. By tapping the Ethernet segment feeding an EtherNet/IP adapter, engineers can capture and analyze CIP (Common Industrial Protocol) traffic, verify scan cycle timing, and identify packet loss or jitter that may indicate deteriorating cable infrastructure or switch misconfiguration—all without taking the system offline.

For human-machine interface (HMI) integration, the 1783-ETAP enables passive monitoring of the communication link between a PanelView Plus 7 terminal and the ControlLogix controller, allowing network engineers to verify tag update rates and identify communication bottlenecks that affect operator display responsiveness. This capability is particularly valuable during commissioning of new production lines or during post-modification validation following a control system upgrade.

In power-sensitive environments, the 1783-ETAP’s low-power passive design complements 24 VDC panel power architectures supplied by Allen-Bradley 1606-XLP series power supplies, ensuring that the addition of network monitoring infrastructure does not impose additional load on the control panel power budget. The compact DIN-rail mountable form factor integrates cleanly into standard control enclosures alongside terminal blocks, circuit breakers, and communication gateways.

Long-term maintenance planning benefits significantly from the 1783-ETAP’s permanent inline installation. Rather than requiring technicians to temporarily insert monitoring equipment during troubleshooting events—a process that introduces risk and downtime—the TAP provides a permanently available monitoring access point. This supports predictive maintenance strategies, network health trending, and cybersecurity monitoring initiatives that are increasingly mandated in critical infrastructure sectors including water treatment, oil and gas, and electric power generation.

ZYPLC maintains availability subject to RFQ confirmation of the 1783-ETAP with full traceability documentation, functional testing records, and a warranty terms confirmed during quotation covering hardware defects and operational failures. Each unit is inspected prior to shipment to ensure compatibility with current Stratix network architectures and Rockwell Automation Studio 5000 Logix Designer environments.

Product Specification Table

System Compatibility Notes

The 1783-ETAP achieves its full value when deployed as part of a coordinated Stratix network architecture. At the controller layer, a ControlLogix L73 or CompactLogix L33ER CPU communicates with field devices over EtherNet/IP; the TAP is inserted inline on this segment to provide continuous traffic visibility without affecting controller scan time. The upstream network infrastructure typically includes a Stratix 5700 managed switch configured with VLANs and QoS policies to prioritize I/O traffic, while a Stratix 8000 modular managed switch may serve as the backbone aggregation point in larger plant-wide architectures.

At the I/O layer, distributed racks using 1734 POINT I/O adapters or 1794 FLEX I/O EtherNet/IP adapters connect to the controller via the tapped segment, allowing engineers to capture adapter heartbeat traffic and verify connection establishment during commissioning. For safety-critical applications, a GuardLogix 5580 safety controller may share the same EtherNet/IP segment, and the 1783-ETAP enables passive monitoring of both standard and safety CIP connections without compromising SIL-rated communication integrity.

Power infrastructure for the control panel is typically provided by a 1606-XLP95E or similar Allen-Bradley power supply, delivering stable 24 VDC to the TAP, switches, and I/O adapters. For operator interface, a PanelView Plus 7 HMI connects to the same EtherNet/IP network, and the TAP’s monitor port can be used to verify HMI-to-controller tag update performance during factory acceptance testing. In redundant architectures, a 1756-RM2 redundancy module coordinates primary and secondary chassis, and the 1783-ETAP provides the network-level visibility needed to validate switchover behavior and communication continuity across both control paths.

Industrial Application Notes

The 1783-ETAP is deployed across a wide range of industrial sectors where EtherNet/IP network integrity is critical to operational safety and productivity. In discrete manufacturing environments such as automotive assembly and electronics production, the TAP is installed on the network segment connecting robot controllers and servo drives to the supervisory ControlLogix system, enabling real-time protocol analysis during high-speed production cycles. In process control applications including chemical processing and pharmaceutical manufacturing, the TAP supports continuous monitoring of the EtherNet/IP link between distributed control nodes and the DCS integration gateway, ensuring that process variable data reaches the historian without packet loss.

In the electric power sector, substations and power generation facilities use the 1783-ETAP to monitor communication between protection relays, RTUs, and SCADA systems, supporting IEC 62443 cybersecurity compliance by enabling passive traffic capture for anomaly detection. Water and wastewater treatment plants deploy the TAP on the network segment feeding pump station PLCs and SCADA polling stations, where network visibility supports both regulatory compliance reporting and predictive maintenance of aging communication infrastructure. In oil and gas upstream and midstream facilities, the 1783-ETAP is installed in hazardous-area-rated control panels to provide monitoring access without requiring intrusive cable modifications in classified locations. Mining and metals operations use the TAP to maintain network visibility on conveyor control and crusher automation systems, where vibration and dust make periodic manual inspection impractical and permanent monitoring infrastructure is preferred.

Product Compatibility FAQ

Q1: Is the 1783-ETAP compatible with Device Level Ring (DLR) topologies used in Stratix-based architectures?
Yes. The 1783-ETAP is designed for use in standard EtherNet/IP network segments and can be inserted into the linear portion of a DLR ring between two DLR-capable nodes. Because the TAP operates at the physical layer and is transparent to the network, it does not participate in DLR ring supervision and does not affect ring recovery timing. It is recommended to consult the Stratix network design guide to confirm insertion point placement does not violate ring segment length specifications.

Q2: How does the 1783-ETAP support long-term maintenance in systems with warranty terms confirmed during quotation coverage?
ZYPLC’s warranty terms confirmed during quotation covers the 1783-ETAP against hardware defects and operational failures from the date of shipment. Because the TAP is a passive device with no active switching components, its long-term reliability is inherently high. For maintenance planning, the permanent inline installation eliminates the need for repeated cable disturbance during troubleshooting events, reducing the risk of connector wear and accidental network disruption. ZYPLC provides replacement units with equivalent lead times and full functional testing documentation to support spare parts programs.

Q3: Can the 1783-ETAP be used to monitor both EtherNet/IP I/O traffic and HMI communication on the same network segment simultaneously?
The 1783-ETAP provides a single monitor port that outputs a full-duplex copy of all traffic passing through the inline ports, including both EtherNet/IP I/O implicit messaging and explicit messaging used by HMI tag reads. A connected protocol analyzer or network management tool can filter and separate these traffic types by CIP connection type, port number, or IP address. For simultaneous monitoring of multiple segments—such as separate I/O and HMI VLANs—multiple 1783-ETAP units should be deployed, one per monitored segment, in coordination with the Stratix switch VLAN configuration.
