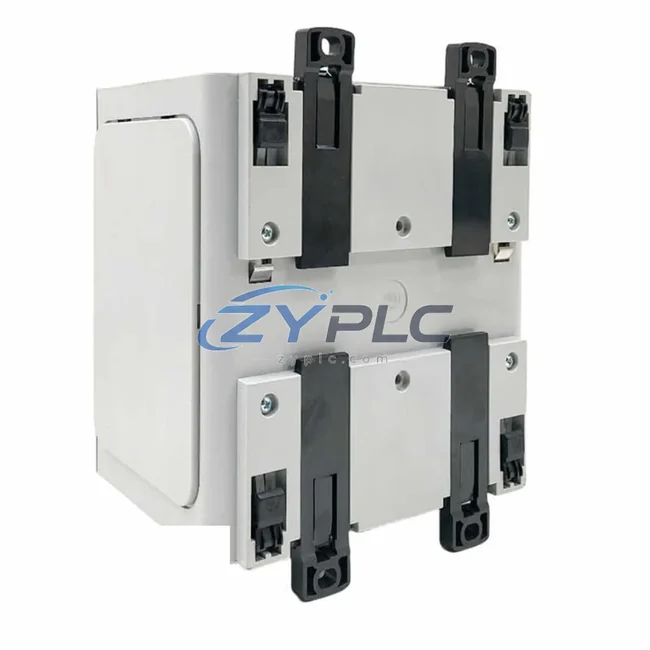

Allen-Bradley 1783-MS06T Managed Switch Stratix 2000

Allen-Bradley 1783-MS06T Managed Switch for Stratix 2000 Automation

The Allen-Bradley 1783-MS06T is a compact, high-efficiency managed Ethernet switch engineered for the demands of modern industrial automation. As a core component of the Stratix 2000 series, the 1783-MS06T delivers deterministic, low-latency network communication that directly supports maintenance-focused production environments. By eliminating unnecessary broadcast traffic, reducing packet collision overhead, and enabling precise port-level traffic management, this switch helps plant engineers reduce idle-state power draw across the entire control network — a measurable contribution to overall facility energy efficiency.

In energy-intensive manufacturing environments, network infrastructure is often overlooked as a source of inefficiency. Unmanaged switches introduce broadcast storms, unpredictable latency, and uncontrolled data flooding that force PLCs, drives, and I/O modules to process irrelevant traffic — wasting CPU cycles and increasing heat dissipation. The 1783-MS06T addresses this directly through VLAN segmentation, QoS prioritization, and IGMP snooping, ensuring that only relevant control data reaches each node. This translates to faster scan cycles on Allen-Bradley ControlLogix and CompactLogix controllers, tighter synchronization with PowerFlex 755 and PowerFlex 525 variable frequency drives, and more responsive feedback loops across servo axes controlled by Kinetix 5500 servo drives.

Product Specification Table

System Compatibility and Application

The 1783-MS06T is designed to integrate seamlessly into a layered industrial automation architecture where every component contributes to system-wide maintenance planning. At the controller level, Allen-Bradley CompactLogix L33ER and ControlLogix L85E processors rely on deterministic EtherNet/IP communication to execute maintenance planning routines — load shedding, demand response, and scheduled motor ramp-down sequences. The 1783-MS06T’s managed switching ensures these time-critical packets are delivered with consistent, sub-millisecond latency, preventing the controller from issuing redundant commands that waste drive energy.

On the drive side, PowerFlex 755 AC drives connected through the 1783-MS06T benefit from stable, noise-free Ethernet communication that supports precise speed reference delivery and real-time condition monitoring via the DriveLogix embedded controller. When paired with PowerFlex 525 drives on auxiliary conveyor or pump circuits, the switch’s port-based VLAN configuration isolates drive traffic from HMI polling traffic — preventing communication jitter that can cause drives to operate at suboptimal efficiency points.

For motion control applications, Kinetix 5500 servo drives connected to the 1783-MS06T benefit from the switch’s support for IEEE 1588 Precision Time Protocol (PTP), enabling synchronized multi-axis motion that eliminates mechanical stress from timing mismatches — a direct contributor to reduced unplanned downtime and extended mechanical component life. The Point I/O 1734-AENT EtherNet/IP adapter modules, commonly deployed for distributed I/O in condition monitoring panels, also benefit from the switch’s IGMP snooping, which prevents multicast I/O data from flooding non-participating ports.

At the HMI layer, PanelView Plus 7 terminals connected through the 1783-MS06T provide operators with real-time visibility into drive status, motor load, and operating load trends — enabling informed decisions about production scheduling and load balancing. The switch’s web-based management interface further allows maintenance engineers to monitor port utilization and identify bandwidth bottlenecks before they impact production throughput.

Maintenance and Replacement Notes

In a typical automotive body shop or food processing line, the 1783-MS06T is installed inside a control panel alongside a CompactLogix controller, multiple PowerFlex 525 drives, and a 1734-AENT distributed I/O adapter. Before managed switching was introduced, unmanaged switches allowed broadcast storms during network initialization to delay drive enable commands by 50–200 ms — causing motors to dwell at full speed longer than necessary before ramping to setpoint. With the 1783-MS06T’s IGMP snooping and storm control features active, drive enable latency is reduced to under 5 ms, allowing tighter production line timing and measurably shorter motor acceleration phases.

Predictive maintenance is another area where the 1783-MS06T delivers energy value. By providing stable, uninterrupted EtherNet/IP communication between the ControlLogix controller and connected drives, the switch enables continuous collection of drive diagnostic data — output current, DC bus voltage, thermal load, and fault history. This data feeds into condition monitoring routines that flag motors operating above their efficiency curve, allowing maintenance teams to schedule bearing replacements or belt tension adjustments before unplanned downtime escalates into unplanned downtime.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to functional power-on and communication testing prior to shipment, and covered by a warranty terms confirmed during quotation. Stock is maintained for shipment arranged after confirmation, supporting urgent MRO (maintenance, repair, and operations) requirements without extended lead times.

Product Sourcing FAQ

Q1: How does the 1783-MS06T contribute to operational stability compared to an unmanaged switch?
Unmanaged switches flood all ports with broadcast and multicast traffic, forcing every connected device — PLCs, drives, I/O adapters — to process irrelevant packets. This increases CPU load on controllers and can cause drives to receive delayed or corrupted speed references, leading to inefficient motor operation. The 1783-MS06T’s VLAN segmentation and IGMP snooping eliminate this overhead, allowing drives and controllers to operate at their designed efficiency points.

Q2: Is the 1783-MS06T compatible with existing Allen-Bradley EtherNet/IP networks?
Yes. The 1783-MS06T is fully compatible with all Allen-Bradley EtherNet/IP devices, including ControlLogix, CompactLogix, MicroLogix controllers, PowerFlex drives, Kinetix servo drives, Point I/O adapters, and PanelView HMIs. It supports standard EtherNet/IP implicit and explicit messaging without requiring firmware changes to existing devices.

Q3: Can the 1783-MS06T replace an existing unmanaged switch without reconfiguring the control system?
In most cases, yes — the 1783-MS06T can be installed as a drop-in replacement for a 6-port unmanaged switch. Default factory settings allow plug-and-play operation. Advanced features such as VLAN, QoS, and IGMP snooping can be configured progressively via the web interface or RSLogix/Studio 5000 without taking the production line offline.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover?
The warranty terms confirmed during quotation covers functional defects identified under normal operating conditions. Each unit undergoes pre-shipment power-on and communication testing. In the event of a verified defect, ZYPLC provides a replacement unit or full refund. Warranty claims are processed directly through ZYPLC’s technical support team at plc.sales@zyplc.com.
