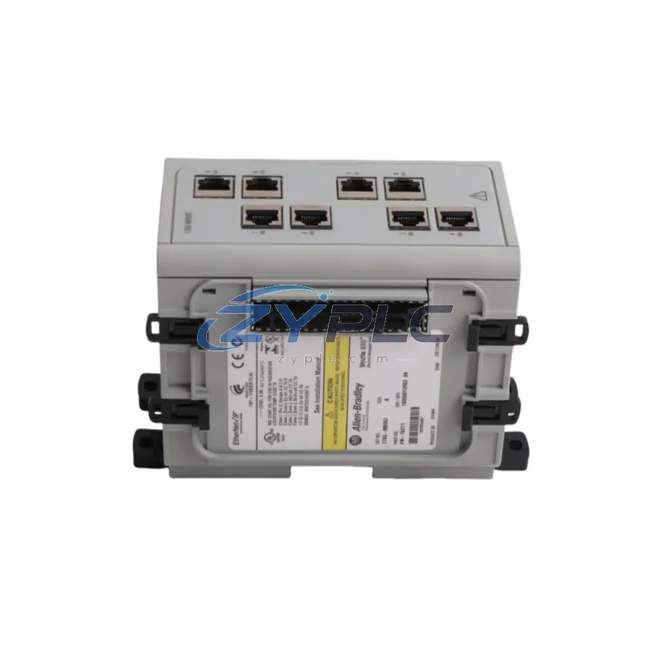

Allen-Bradley 1783-MX08T Ethernet Switch

Allen-Bradley 1783-MX08T Ethernet Switch: Efficiency Control & Production Line Optimization

The Allen-Bradley 1783-MX08T is an 8-port managed Ethernet switch engineered for the Stratix 8000 modular managed switch platform, purpose-built for industrial automation environments where network reliability and energy efficiency are mission-critical. In modern smart manufacturing, uncontrolled network traffic, excessive broadcast storms, and unmanaged data flows are silent contributors to unplanned downtime and production downtime. The 1783-MX08T addresses these challenges directly by delivering deterministic, low-latency EtherNet/IP communication with built-in traffic prioritization and multicast management — ensuring that every watt consumed by your control network translates into productive machine output.

Deployed across discrete manufacturing, process control, and material handling lines, the 1783-MX08T integrates seamlessly into Rockwell Automation’s Connected Enterprise architecture. It supports IGMP snooping to suppress unnecessary multicast flooding, QoS (Quality of Service) to prioritize time-sensitive I/O data from Allen-Bradley CompactLogix L33ER and ControlLogix L85E PLCs, and RSTP (Rapid Spanning Tree Protocol) for fault-tolerant ring topologies — all of which reduce redundant packet retransmissions that silently inflate network energy consumption.

Product Specification Table

System Compatibility and Application

The 1783-MX08T does not operate in isolation — its energy efficiency value is realized through tight integration with the broader Rockwell Automation ecosystem. In a typical energy-optimized production cell, the switch serves as the communication backbone connecting multiple energy-intensive components into a single, manageable network fabric.

At the drive layer, Allen-Bradley PowerFlex 755 AC drives rely on deterministic EtherNet/IP communication to receive speed reference commands and return real-time energy consumption data to the control system. When the 1783-MX08T’s QoS policies ensure that drive I/O packets are never delayed by lower-priority traffic, the PowerFlex 755 can execute precise speed ramps — eliminating the energy spikes caused by abrupt motor starts and stops. Similarly, PowerFlex 525 drives on auxiliary conveyor lines benefit from the switch’s low-latency forwarding to maintain synchronized belt speeds, reducing mechanical stress and motor heating losses.

At the controller layer, CompactLogix 5380 and ControlLogix L85E PLCs use the 1783-MX08T as their primary network interface to I/O modules, HMIs, and SCADA systems. The switch’s IGMP snooping capability is particularly valuable here: in cells with multiple 1734-AENT Point I/O EtherNet/IP adapters, unmanaged multicast traffic can consume up to 30% of available bandwidth — bandwidth that the 1783-MX08T reclaims and redirects to productive control traffic.

For condition monitoring, the 1783-MX08T provides the network infrastructure through which Allen-Bradley 1426 PowerMonitor 5000 energy meters report real-time kWh, power factor, and harmonic distortion data to the FactoryTalk Energy Manager platform. Without a reliable, low-jitter network path, energy data arrives out of sequence — making it impossible to correlate energy spikes with specific machine events. The 1783-MX08T eliminates this uncertainty.

At the HMI layer, PanelView Plus 7 terminals connected through the 1783-MX08T display live energy dashboards, allowing operators to identify inefficient operating modes — such as motors running at full speed during low-demand periods — and intervene before unplanned downtime accumulates. The switch’s port-level diagnostics, accessible via Studio 5000 Logix Designer, also enable maintenance teams to detect cable degradation before it causes packet loss and the associated retransmission energy overhead.

For safety-integrated lines, the 1783-MX08T supports coexistence with GuardLogix 5580 safety controllers, ensuring that safety I/O packets — which carry the highest QoS priority — are never starved by standard automation traffic. This architecture prevents unplanned safety stops that force motors and drives to restart from zero speed, a process that consumes 6–8× the steady-state energy of a controlled deceleration.

Maintenance and Replacement Notes

In automotive body welding lines, the 1783-MX08T has been deployed to connect robot controllers, servo drives, and weld timers into a single managed network. By enforcing strict QoS policies, the switch ensures that weld sequence commands arrive within the 1 ms jitter tolerance required for consistent weld quality — eliminating rework cycles that waste both energy and materials. Plants report a measurable reduction in network-related production interruptions after replacing unmanaged switches with the Stratix 8000 / 1783-MX08T combination.

In food and beverage filling lines, IGMP snooping on the 1783-MX08T prevents multicast flooding from flow meter I/O adapters from saturating the network during high-speed production runs. This keeps PowerFlex 755 pump drives operating at their programmed efficiency curves rather than hunting for speed references lost in network congestion — directly reducing pump energy consumption during peak production.

For predictive maintenance programs, the 1783-MX08T’s port statistics — packet error rates, utilization percentages, and collision counts — serve as early indicators of deteriorating cable infrastructure. Maintenance teams using FactoryTalk AssetCentre can correlate rising error rates with specific machine zones, scheduling cable replacement during planned downtime rather than reacting to unplanned failures. This proactive approach reduces emergency restart energy costs and extends the service life of connected drives and I/O modules.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including port-to-port forwarding verification, VLAN configuration validation, and power consumption measurement. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How does the 1783-MX08T reduce energy consumption in an EtherNet/IP network?
The 1783-MX08T uses IGMP snooping to suppress unnecessary multicast traffic, QoS to eliminate retransmission cycles caused by packet collisions, and RSTP to minimize the duration of network failover events. Together, these features reduce the CPU load on connected PLCs and drives — allowing them to operate at lower clock speeds and consume less power during steady-state production.

Q2: Is the 1783-MX08T compatible with existing Stratix 8000 base units and Rockwell Automation PLCs?
Yes. The 1783-MX08T is a plug-in expansion module for the Stratix 8000 (1783-MS) base unit and is fully compatible with CompactLogix, ControlLogix, GuardLogix, and Micro800 controllers communicating over EtherNet/IP. It is also compatible with third-party devices supporting standard IEEE 802.3 Ethernet.

Q3: Can the 1783-MX08T replace an older unmanaged switch in an existing production line?
In most cases, yes — provided the existing cabling is Cat5e or better and the Stratix 8000 base unit is already installed. ZYPLC recommends a network audit before replacement to identify any devices relying on broadcast-based discovery protocols that may require IGMP configuration adjustments after the switch is installed.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
All 1783-MX08T units supplied by ZYPLC are tested for port forwarding functionality, VLAN integrity, and power draw before shipment. The warranty terms confirmed during quotation covers hardware defects and functional failures under normal industrial operating conditions. Replacement or repair is arranged within the warranty period at no additional cost. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty claims.
