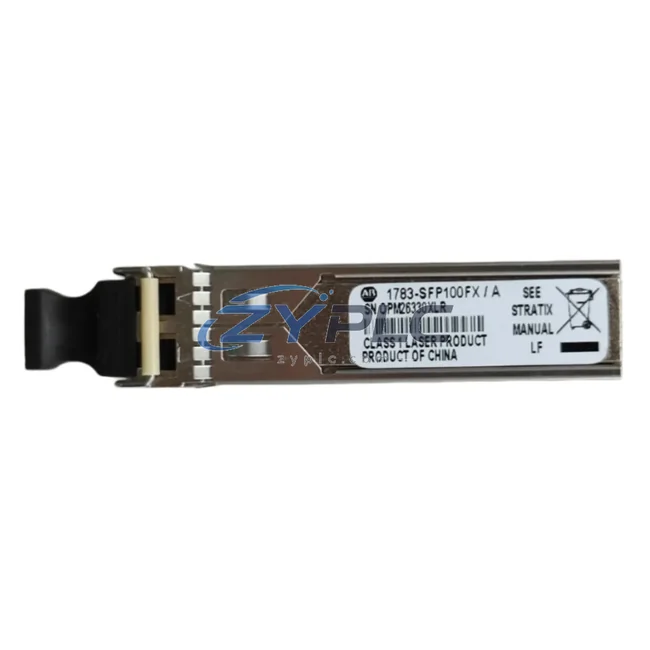

Allen-Bradley 1783-SFP100FX Fiber Transceiver for Stratix

Allen-Bradley 1783-SFP100FX Fiber Transceiver for Stratix

The Allen-Bradley 1783-SFP100FX is a 100BASE-FX Small Form-factor Pluggable (SFP) fiber optic transceiver engineered for seamless integration into Rockwell Automation’s Stratix managed switch platform. Within a layered industrial control architecture, the 1783-SFP100FX occupies a critical position at the network layer, providing the physical-medium interface that enables deterministic, high-integrity fiber communication between control nodes, I/O subsystems, and supervisory systems. Its role is not simply that of a passive optical component — it is a system-enabling element that defines the reliability, reach, and redundancy characteristics of the entire communication backbone.

In modern industrial automation environments, the network layer is the connective tissue that binds the control layer, I/O layer, power layer, HMI layer, and execution layer into a coherent, responsive system. The 1783-SFP100FX supports this architecture by delivering 100 Mbps full-duplex fiber connectivity with low latency and high electromagnetic immunity — properties that are indispensable in environments such as power substations, petrochemical processing plants, water treatment facilities, mining operations, and heavy metallurgical production lines where copper-based media is susceptible to interference and signal degradation.

When deployed within a Stratix 5700 or Stratix 8000 managed switch chassis, the 1783-SFP100FX enables engineers to extend fiber segments across long distances — up to 2 km on multimode fiber — without signal repeaters, reducing infrastructure complexity and improving system maintainability. This capability is particularly valuable in distributed control architectures where PLCs such as the Allen-Bradley ControlLogix 1756 series or CompactLogix 1769 series must communicate reliably with remote I/O racks, variable frequency drives, and field instrumentation across large plant footprints.

Product Specification Table

System Compatibility Notes

The 1783-SFP100FX achieves its full value when understood as part of a coordinated system rather than a standalone component. In a typical Rockwell Automation architecture, the control layer is anchored by a ControlLogix 1756-L85E or 1756-L73 CPU module seated in a 1756-A17 or 1756-A7 backplane chassis. These controllers communicate with distributed I/O via EtherNet/IP, and the 1783-SFP100FX provides the fiber uplink that connects the Stratix 5700 (1783-BMS10CGP) managed switch to the plant backbone or to remote switch nodes.

At the I/O layer, 1734 POINT I/O adapters and 1756 ControlLogix I/O modules rely on the integrity of the network layer to deliver real-time process data to the CPU. Any degradation in the network medium — whether from EMI, cable length limitations, or connector quality — directly impacts scan time consistency and system response. The 1783-SFP100FX eliminates these risks by providing a fiber medium that is inherently immune to electromagnetic interference and capable of spanning distances that copper Ethernet cannot reliably cover.

At the power layer, 1606-XLP power supplies provide stable 24VDC rail power to the switch chassis and I/O modules. Redundant power input configurations ensure that a single power supply failure does not interrupt network communication. The 1783-SFP100FX, operating within this powered infrastructure, supports the overall system’s redundancy design by enabling ring topology configurations using Rockwell’s Device Level Ring (DLR) or Linear/Star EtherNet/IP topologies.

At the HMI layer, PanelView Plus 7 terminals (2711P series) connect to the Stratix switch via copper or fiber uplinks. In large-panel or remote-HMI installations, the 1783-SFP100FX enables the fiber segment between the HMI switch port and the control network, ensuring that operator interface data — alarms, setpoints, trend displays — is delivered without latency spikes caused by copper segment limitations.

At the execution layer, PowerFlex 755 and PowerFlex 525 variable frequency drives with embedded EtherNet/IP adapters connect to the control network through the same Stratix switch infrastructure. The fiber backbone enabled by the 1783-SFP100FX ensures that drive command and feedback data — speed references, torque limits, fault status — is transmitted with the determinism required for coordinated motion and process control applications.

Terminal blocks such as the 1492-J series and relay output modules such as the 700-HLT series complete the field wiring layer, while the 1783-SFP100FX ensures that all upstream communication remains stable regardless of field-level electrical noise. This system integration across all system layers — from CPU to drive, from power supply to HMI — is what makes the 1783-SFP100FX a system-critical component rather than a commodity optical part.

Industrial Application Notes

In manufacturing and discrete production environments, the 1783-SFP100FX is deployed in assembly line control networks where multiple Stratix switches interconnect robot controllers, servo drives, vision systems, and safety PLCs across a production floor. Fiber uplinks between switch nodes prevent ground loop interference and allow network segments to span between buildings or across large factory bays without signal degradation.

In power generation and electrical substation applications, the 1783-SFP100FX supports IEC 61850-compatible communication infrastructure by providing the fiber physical layer between protection relays, bay controllers, and SCADA gateways. Its immunity to high-voltage electromagnetic fields makes it the preferred medium in switchgear rooms and transformer bays.

In petrochemical and refinery process control systems, where control networks must operate continuously for years without interruption, the 1783-SFP100FX supports redundant ring topologies that allow a single fiber segment failure to be automatically bypassed without loss of communication. This capability is essential for maintaining process continuity in distillation columns, compressor control systems, and pipeline monitoring networks.

In water and wastewater treatment facilities, the 1783-SFP100FX connects remote pump stations, chemical dosing systems, and SCADA outstations to the central control room over fiber runs that may span several kilometers across open terrain. Its long-reach capability reduces the need for intermediate repeaters and simplifies network maintenance.

In mining and metallurgical operations, where vibration, dust, and high-current equipment create severe electromagnetic environments, fiber-based communication using the 1783-SFP100FX provides the isolation and noise immunity required for reliable conveyor control, crusher management, and ventilation system automation.

Product Compatibility FAQ

Q1: Is the 1783-SFP100FX compatible with all Stratix managed switch models, and can it be hot-swapped during operation?
The 1783-SFP100FX is designed for use with Stratix 5700, Stratix 8000, Stratix 5400, and Stratix 5410 managed switches that feature SFP-capable ports. It conforms to the SFP MSA (Multi-Source Agreement) standard, which means it is physically compatible with any SFP slot on these platforms. Hot-swap capability depends on the specific switch model and firmware version — Stratix 5700 and 8000 platforms generally support SFP hot-swap without requiring a full system restart, but engineers should verify with the applicable Stratix user manual and confirm that the network topology (ring vs. star) allows for graceful link failover before performing live maintenance.

Q2: How does the 1783-SFP100FX support redundant network architectures, and what topology configurations are recommended for high-availability systems?
The 1783-SFP100FX enables fiber-based redundant topologies by providing the physical medium for ring configurations using Rockwell Automation’s Device Level Ring (DLR) protocol or standard Rapid Spanning Tree Protocol (RSTP). In a DLR ring, two fiber ports on a Stratix switch — each fitted with a 1783-SFP100FX — form a closed loop that automatically reroutes traffic within milliseconds of a link failure. For critical applications such as power substation automation or continuous process control, a dual-ring or redundant star topology using multiple Stratix switches and 1783-SFP100FX transceivers is recommended to achieve sub-50ms recovery times and eliminate single points of failure at the network layer.

Q3: What does the warranty terms confirmed during quotation cover for the 1783-SFP100FX, and how does ZYPLC support long-term maintenance and replacement planning?
All 1783-SFP100FX units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. This warranty supports long-term maintenance planning by providing a defined replacement window during which defective units are exchanged at no additional cost. ZYPLC maintains availability subject to RFQ confirmation of the 1783-SFP100FX and compatible Stratix SFP variants to support both immediate replacement needs and planned maintenance schedules. Engineers managing multi-site or multi-switch installations are encouraged to maintain a small buffer stock of 1783-SFP100FX transceivers to minimize downtime risk — ZYPLC can assist with bulk procurement and staggered delivery to align with maintenance cycles.
