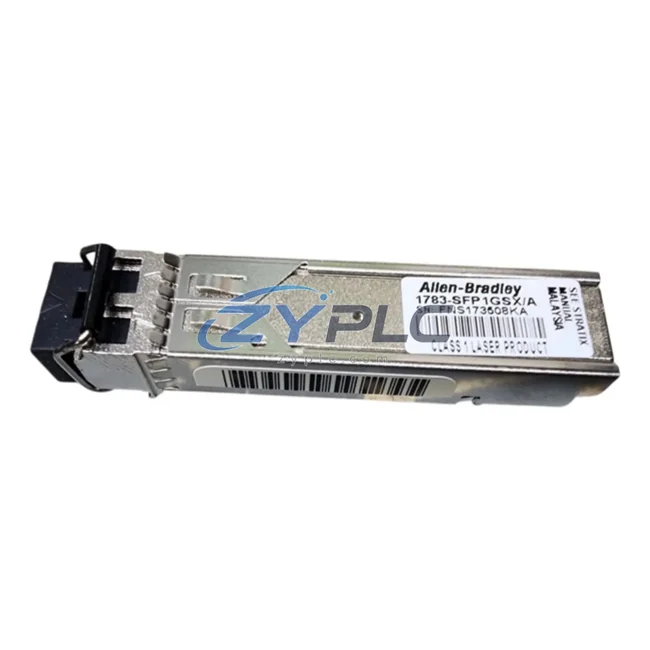

Allen-Bradley 1783-SFP1GSX SFP Transceiver Module for Stratix Systems

Allen-Bradley 1783-SFP1GSX Industrial Network Interface for Stratix Systems: Enabling High-Speed Data Links Across Smart Factory Environments

The Allen-Bradley 1783-SFP1GSX is a 1000BASE-SX Small Form-factor Pluggable (SFP) fiber optic transceiver engineered for deployment in demanding industrial Ethernet environments. Designed to slot directly into Stratix managed switches — including the Stratix 5700 and Stratix 5400 series — this module delivers Gigabit Ethernet connectivity over multimode fiber (MMF) at 850 nm wavelength, supporting link distances up to 550 meters. In smart factory architectures where deterministic data delivery, low-latency communication, and network resilience are non-negotiable, the 1783-SFP1GSX serves as a critical physical-layer building block that bridges field devices, control systems, and enterprise networks into a unified, transparent data fabric.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical EtherNet/IP-based smart factory deployment, the 1783-SFP1GSX transceiver is installed in a Stratix 5700 managed switch that sits at the heart of the cell/area zone network. Field-level signals originate from sensors — such as Allen-Bradley ArmorBlock 1732E remote I/O modules — and travel over copper or fiber segments to the switch. The 1783-SFP1GSX fiber uplink then carries aggregated process data at Gigabit speed to a distribution-layer Stratix 5400 switch, which interconnects multiple production cells.

At the controller level, a ControlLogix 5580 or CompactLogix 5380 PLC communicates with the Stratix switch fabric via EtherNet/IP, executing ladder logic and function block programs that respond to real-time I/O data. The fiber backbone enabled by the 1783-SFP1GSX ensures that scan-cycle-critical data — including drive status from PowerFlex 755 variable frequency drives and position feedback from servo systems — arrives at the controller without copper-induced EMI interference common in high-voltage motor control centers.

Moving up the automation pyramid, FactoryTalk View SE HMI servers and FactoryTalk Historian SCADA platforms subscribe to EtherNet/IP tag data published by the ControlLogix system. The Gigabit fiber link provided by the 1783-SFP1GSX supports the high-bandwidth demands of concurrent HMI screen updates, historian data logging, and alarm event streaming without packet loss or latency spikes. For sites integrating Cisco IE 4000 industrial routers or Allen-Bradley Stratix 5950 security appliances at the DMZ boundary, the SFP slot compatibility ensures seamless uplink integration into the converged plant-enterprise network.

Edge computing nodes — such as Rockwell Automation Plex MES gateways or third-party OPC-UA edge servers — connect through the same Stratix switch infrastructure, pulling real-time production KPIs and forwarding them to cloud analytics platforms. The 1783-SFP1GSX fiber transceiver eliminates ground loop issues and provides galvanic isolation inherent to fiber optic links, making it the preferred uplink choice in environments with large electrical noise sources such as welding robots, large servo presses, or high-current bus systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy fieldbus protocols — such as DeviceNet, ControlNet, and Modbus RTU — alongside modern EtherNet/IP and PROFINET networks. The 1783-SFP1GSX, when deployed within a properly configured Stratix switch infrastructure, supports the physical network layer that makes protocol gateway solutions viable. By providing a reliable, high-bandwidth fiber backbone, it enables 1783-ETAP EtherNet/IP tap modules and protocol conversion gateways to forward translated data packets without bottlenecking at the physical layer.

Data silos — where a PLC cell network cannot communicate with the SCADA historian or the MES layer — are frequently caused by inadequate network bandwidth or unreliable copper links in electrically noisy environments. The Gigabit fiber uplink of the 1783-SFP1GSX resolves both issues simultaneously: bandwidth is no longer a constraint for concurrent data flows, and fiber immunity to electromagnetic interference ensures link stability even adjacent to large variable speed drives or induction heating equipment.

Remote monitoring and diagnostics are equally transformed. With a stable fiber backbone, FactoryTalk Remote Access sessions and VPN tunnels through the Stratix 5950 security appliance maintain consistent throughput, allowing engineers to perform remote PLC program uploads, drive parameter adjustments, and HMI configuration changes without on-site visits. Production line transparency — the ability to visualize every sensor state, drive speed, and alarm condition in real time on a SCADA dashboard — depends on the network never dropping a packet. The 1783-SFP1GSX delivers that foundation.

System expansion is equally straightforward. Adding a new production cell requires only an additional Stratix switch with a 1783-SFP1GSX fiber uplink to the distribution layer — no rewiring of copper trunk cables, no reconfiguration of existing network segments. This modular scalability aligns with IEC 62443 network segmentation best practices and supports future integration of wireless access points, time-sensitive networking (TSN) upgrades, and Industry 4.0 analytics platforms.

Every unit shipped undergoes outgoing quality inspection and communication link testing. Stock is maintained for shipment arranged after confirmation, and all modules are covered by a warranty terms confirmed during quotation against manufacturing defects.

Industrial Connectivity FAQ

Q1: What is the maximum fiber link distance supported by the 1783-SFP1GSX?
The 1783-SFP1GSX supports up to 550 meters over OM2 50/125 µm multimode fiber and up to 275 meters over OM1 62.5/125 µm multimode fiber at 1 Gbps. For longer distances exceeding 550 m, a 1000BASE-LX single-mode SFP variant should be considered instead.

Q2: Is the 1783-SFP1GSX compatible with non-Rockwell Automation switches that support standard SFP slots?
The 1783-SFP1GSX follows the IEEE 802.3z 1000BASE-SX standard and uses a standard LC duplex SFP form factor. While it is validated and recommended for use in Stratix 5700, 5400, and 5410 switches, it may function in third-party switches with standard SFP slots. However, Rockwell Automation only provides full support and diagnostics integration when used within the Stratix product family.

Q3: How does fiber optic connectivity improve network stability compared to copper in industrial environments?
Fiber optic cables are immune to electromagnetic interference (EMI) and radio frequency interference (RFI), which are prevalent near variable frequency drives, servo motors, welding equipment, and high-current bus bars. Unlike copper Ethernet, fiber links do not suffer from ground loops or common-mode noise, resulting in zero bit-error-rate degradation in electrically noisy plant floors. This makes the 1783-SFP1GSX the preferred uplink solution for motor control centers and heavy manufacturing environments.

Q4: What warranty and testing does the 1783-SFP1GSX come with?
All 1783-SFP1GSX units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each module undergoes pre-shipment communication link verification to confirm optical power output, receiver sensitivity, and data integrity before dispatch. Availability is confirmed via RFQ for shipment arranged after confirmation to minimize production downtime.
