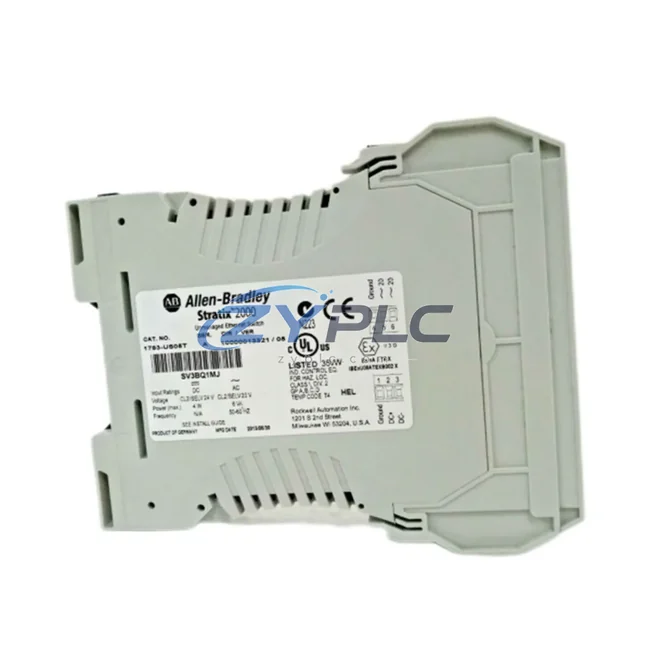

Allen-Bradley 1783-US05T Industrial Network Interface for Stratix 2000 Systems

Allen-Bradley 1783-US05T: Industrial Data Link for Stratix 2000 Smart Factory Networks

The Allen-Bradley 1783-US05T is a 5-port unmanaged industrial Ethernet switch from the Stratix 2000 series, engineered to deliver reliable, low-latency network connectivity across the full automation data chain — from field-level sensors and actuators through PLC controllers, remote I/O modules, HMI panels, SCADA gateways, and up to enterprise MES and ERP systems. Designed for DIN-rail installation in industrial control cabinets, the 1783-US05T provides plug-and-play EtherNet/IP connectivity with no configuration overhead, making it the ideal backbone switch for machine-level and cell-level network segments in smart manufacturing environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1783-US05T sits at the heart of the machine-level Ethernet segment, aggregating real-time data from field devices and forwarding it upstream with zero configuration delay. Signal acquisition begins at the sensor layer — industrial proximity sensors, photoelectric sensors, and encoder feedback devices connect to Allen-Bradley FLEX I/O 1794-AENT remote I/O adapter modules, which translate analog and digital field signals into EtherNet/IP data packets. These packets traverse the 1783-US05T switch to reach the Allen-Bradley CompactLogix L33ER PLC controller, where ladder logic and function block programs execute real-time control decisions at scan times under 1 ms.

For larger production lines requiring coordinated multi-axis motion and safety integration, the 1783-US05T feeds network traffic to a ControlLogix 1756-L85E controller chassis, where dedicated communication modules such as the 1756-EN2T EtherNet/IP bridge module manage high-speed data exchange between the controller backplane and the plant-floor Ethernet ring. Variable frequency drives — including the PowerFlex 525 and PowerFlex 755 series — connect directly to the switch via their embedded EtherNet/IP ports, enabling real-time speed reference, torque feedback, and fault diagnostics to flow seamlessly into the control program without additional protocol gateways.

Operator interaction is handled through PanelView Plus 7 HMI terminals connected to the same Ethernet segment. The 1783-US05T ensures that HMI screen refresh rates remain consistent even under peak network load, supporting smooth visualization of process variables, alarm states, and production KPIs. Upstream, a FactoryTalk View SE SCADA server collects historian data from all connected devices through the switch, enabling plant-wide trend analysis, SPC charting, and OEE dashboards. For sites requiring IT/OT convergence, a Stratix 5700 1783-BMS10CGL managed switch at the cell-level boundary provides VLAN segmentation and QoS prioritization, ensuring that the unmanaged 1783-US05T segment remains isolated from broadcast storms originating in the enterprise network.

Remote diagnostics and predictive maintenance data flow through the same EtherNet/IP backbone. The Allen-Bradley Logix 5000 Diagnostics routines embedded in the CompactLogix and ControlLogix controllers continuously monitor network health metrics — including packet loss, CIP connection counts, and I/O response times — and surface alerts through FactoryTalk Diagnostics. This closed-loop data chain, anchored by the 1783-US05T at the machine level, enables maintenance teams to identify incipient faults in drives, I/O modules, and communication links before unplanned downtime occurs.

Solving Data Isolation in Industrial Sites

Many manufacturing facilities still operate with fragmented automation islands — legacy PLCs running proprietary serial protocols, standalone HMI panels with no historian connectivity, and drive systems that report faults only through hardwired discrete signals. The Allen-Bradley 1783-US05T directly addresses these data isolation challenges by providing a standards-based EtherNet/IP switching layer that unifies previously disconnected devices onto a single, coherent network fabric.

Protocol fragmentation is resolved by pairing the 1783-US05T with protocol conversion gateways such as the ProSoft Technology MVI56E-MCM Modbus communication module or the HMS Anybus Communicator, which translate legacy Modbus RTU, PROFIBUS DP, or DeviceNet traffic into EtherNet/IP frames that the switch can forward natively. This eliminates the need for parallel wiring infrastructure and allows SCADA systems to poll all field devices through a single Ethernet interface.

Production line transparency is achieved by connecting the 1783-US05T to a FactoryTalk Historian SE server, which archives time-stamped process data from every EtherNet/IP node on the segment. Quality engineers can query this historian to correlate product defect events with specific machine parameters — spindle load, conveyor speed, temperature setpoints — enabling root-cause analysis that was previously impossible with isolated control systems. System expansion is equally straightforward: the 5-port form factor of the 1783-US05T allows up to four field devices to share a single uplink port to the cell-level managed switch, and additional 1783-US05T units can be daisy-chained to extend the segment as new machines are added to the production line, all without requiring network reconfiguration or IP address management.

Industrial Connectivity FAQ

Q1: What is the typical network latency of the 1783-US05T in an EtherNet/IP control system?
The 1783-US05T is a store-and-forward unmanaged switch with a typical port-to-port forwarding latency of under 10 µs at 100 Mbps. In standard EtherNet/IP implicit messaging applications with CompactLogix or ControlLogix controllers, end-to-end I/O response times of 1–4 ms are routinely achieved, well within the requirements of most discrete manufacturing and process control applications.

Q2: Is the 1783-US05T compatible with PROFINET or Modbus TCP devices on the same network segment?
Yes. As an unmanaged Layer 2 Ethernet switch, the 1783-US05T forwards all standard IEEE 802.3 Ethernet frames regardless of the application-layer protocol. PROFINET IO, Modbus TCP, and EtherNet/IP devices can coexist on the same segment. For environments requiring strict traffic isolation between protocols, upgrading to a managed Stratix 5700 switch with VLAN support is recommended.

Q3: How does the 1783-US05T support network stability in high-vibration or high-temperature industrial environments?
The 1783-US05T is built to IEC 61131-2 environmental standards with a conformal-coated PCB, DIN-rail mounting for secure mechanical installation, and an operating temperature range of 0 °C to +60 °C. All RJ45 ports support Auto-MDI/MDIX and auto-negotiation, eliminating cable polarity and speed mismatch faults. The 24 VDC power input accepts an 18–30 VDC range, providing immunity to power supply fluctuations common in industrial panels.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing performed?
Every 1783-US05T unit supplied by ZYPLC undergoes pre-shipment functional testing including port link verification, power-on self-test, and EtherNet/IP connectivity validation. The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and advance replacement units are available for critical production environments to minimize downtime exposure.
