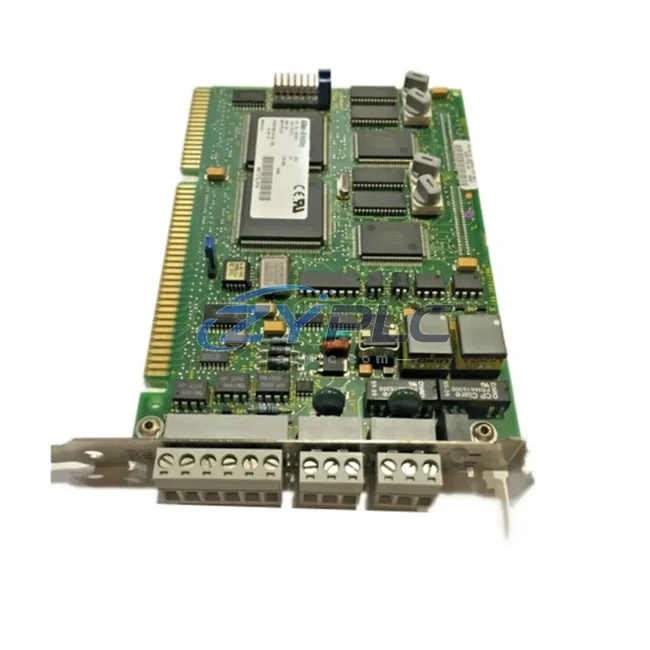

Allen-Bradley 1784-KTXD Industrial Network Interface for KTX Series Systems

Allen-Bradley 1784-KTXD: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1784-KTXD is a high-performance ISA-bus DH+ Communication Gateway engineered for the KTX Series platform, purpose-built to bridge the data gap between field-level devices and upper-layer control systems in modern industrial environments. As manufacturing sites evolve toward fully connected smart factory architectures, the 1784-KTXD serves as a critical node in the industrial data chain — enabling seamless, real-time communication between PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and enterprise-level MES systems. Whether deployed in automotive assembly lines, process control facilities, or discrete manufacturing cells, this gateway delivers the protocol translation, network stability, and diagnostic transparency that industrial engineers demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1784-KTXD sits at the heart of the communication architecture, acting as the translator and relay between the physical world of sensors and actuators and the digital world of data analytics and remote supervision. Signal acquisition begins at the field level, where devices such as Allen-Bradley 1734 POINT I/O modules and 1756 ControlLogix remote I/O adapters collect real-time process data — temperature, pressure, flow rate, motor speed — and transmit it upstream via the DH+ network backbone.

The 1784-KTXD receives this data stream through its ISA bus interface and makes it available to the host workstation running RSLinx Classic or RSLinx Enterprise, which serves as the communication server for the entire automation network. From there, SCADA platforms such as FactoryTalk View SE or Wonderware InTouch can subscribe to live data tags, enabling operators to monitor production KPIs, visualize process trends, and respond to alarm conditions in real time. The gateway’s multi-node addressing capability allows a single 1784-KTXD to communicate with up to 64 nodes on a DH+ network segment, making it ideal for large-scale PLC-5 and SLC 500 installations where multiple controllers share a common data highway.

For drive integration, the 1784-KTXD facilitates communication with Allen-Bradley PowerFlex 700 and PowerFlex 40 variable frequency drives connected via DH+ or bridged through a 1203-GU6 DeviceNet/DH+ gateway module, enabling speed reference commands and fault diagnostics to flow bidirectionally between the drive and the SCADA host. Similarly, Allen-Bradley PanelView Plus HMI terminals connected to the DH+ segment receive real-time tag updates through the 1784-KTXD, allowing machine operators to interact with process data directly at the point of use without requiring a separate Ethernet infrastructure.

In remote monitoring scenarios, the 1784-KTXD pairs effectively with edge gateway solutions that aggregate DH+ data and forward it over Ethernet/IP or OPC-UA to cloud-based analytics platforms, completing the data journey from sensor to enterprise dashboard. This architecture supports predictive maintenance workflows, where vibration data from smart sensors connected to 1756-IB16 digital input modules is continuously streamed through the DH+ network, processed by the SCADA system, and analyzed for anomaly patterns that indicate impending equipment failure.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is the fragmentation of communication protocols — a reality that the Allen-Bradley 1784-KTXD directly addresses. Many manufacturing facilities operate a heterogeneous mix of PLC generations, each running its own proprietary protocol: older PLC-5 systems on DH+, SLC 500 controllers on DH-485, and newer CompactLogix or ControlLogix platforms on EtherNet/IP. Without a capable gateway at the center of this network, data remains siloed within each controller island, invisible to the SCADA system and inaccessible for cross-system analysis.

The 1784-KTXD eliminates this data isolation by providing a reliable, high-speed DH+ interface that allows the host PC to read and write data across all connected PLC nodes simultaneously. Production line transparency is achieved when every controller — from the entry-level SLC 5/03 managing a conveyor system to the high-end PLC-5/80 orchestrating a complex batch process — can be polled and monitored through a single RSLinx communication server instance. This unified data access layer is the foundation for production transparency, enabling plant managers to track OEE metrics, identify bottlenecks, and make data-driven decisions without relying on manual data collection.

Remote diagnostics become practical when the 1784-KTXD is integrated into a remote access architecture. Maintenance engineers can connect to the DH+ network from off-site locations using RSLogix 5 or RSLogix 500 programming software routed through the gateway, allowing them to perform online edits, force I/O states, and review fault histories without traveling to the plant floor. This capability dramatically reduces mean time to repair (MTTR) and supports the shift toward predictive and condition-based maintenance strategies that define Industry 4.0 operations.

System scalability is another key advantage. As production capacity grows, additional PLC nodes, remote I/O racks, and HMI stations can be added to the DH+ network without replacing the gateway infrastructure. The 1784-KTXD’s multi-node support and configurable baud rate settings ensure that network performance scales gracefully with the expanding device count, protecting the customer’s investment in existing communication infrastructure.

Every 1784-KTXD unit supplied by ZYPLC undergoes pre-shipment functional testing to verify DH+ communication integrity, node addressing, and data throughput performance. Units are backed by a warranty terms confirmed during quotation covering manufacturing defects and communication failures, with RFQ-confirmed sourcing available for shipment arranged after confirmation to support urgent maintenance and system expansion requirements worldwide.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the 1784-KTXD on a DH+ network?
The 1784-KTXD supports DH+ baud rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps. The selected baud rate must match the configuration of all other nodes on the DH+ segment. For most PLC-5 and SLC 500 installations, 57.6 Kbps is the standard operating rate, while 230.4 Kbps is available for high-speed data exchange in demanding applications.

Q2: Is the 1784-KTXD compatible with modern SCADA and HMI software platforms?
Yes. The 1784-KTXD is fully compatible with RSLinx Classic and RSLinx Enterprise communication servers, which provide OPC DA/UA data access to SCADA platforms including FactoryTalk View SE, Wonderware InTouch, Ignition SCADA, and other OPC-compliant systems. This ensures seamless integration into both legacy and modern supervisory control architectures.

Q3: How does the 1784-KTXD handle network stability in electrically noisy industrial environments?
The 1784-KTXD is designed to operate reliably in industrial control panel environments where electrical noise from variable frequency drives, contactors, and high-current switching equipment is common. The DH+ protocol incorporates token-passing media access control and CRC error detection, ensuring data integrity even under adverse electromagnetic conditions. Proper cable shielding and grounding practices, as specified in Allen-Bradley installation guidelines, further enhance network stability.

Q4: What warranty and testing standards apply to ZYPLC-supplied 1784-KTXD units?
All 1784-KTXD units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing that verifies DH+ communication establishment, node addressing, and data exchange with a reference PLC-5 or SLC 500 controller. Availability is confirmed via RFQ for same-day or next-day dispatch, and expedited shipping options are available for urgent maintenance requirements.
