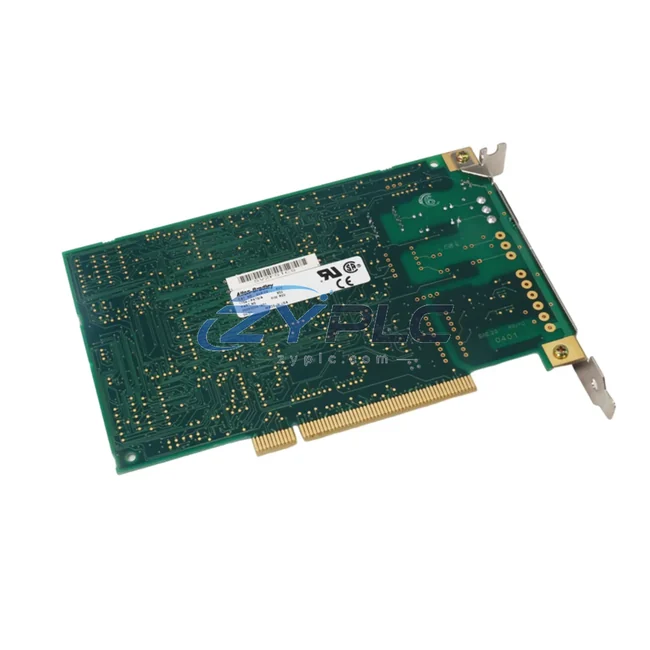

Allen-Bradley 1784-PKTS Industrial Network Interface for 1784 Series Systems

Allen-Bradley 1784-PKTS: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1784-PKTS is a high-performance DH+ (Data Highway Plus) communication gateway engineered for seamless integration across industrial automation networks. Designed as a core component of the Allen-Bradley 1784 Series communication interface family, the 1784-PKTS bridges legacy PLC-5 and SLC 500 control platforms with modern SCADA systems, HMI terminals, and upper-level MES/ERP architectures. In smart factory environments where data continuity is mission-critical, the 1784-PKTS delivers reliable, low-latency protocol conversion and network transparency across the entire production floor.

As industrial sites evolve toward fully connected automation, the 1784-PKTS serves as the backbone of the data chain — enabling real-time signal acquisition from field devices, deterministic protocol translation across DH+ and DH-485 segments, and structured data delivery to supervisory control layers. Whether deployed in automotive assembly, food and beverage processing, oil and gas facilities, or discrete manufacturing, this gateway ensures that every node in the control network communicates with precision and stability.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 1784-PKTS sits at the intersection of field-level control and supervisory data management. At the device layer, Allen-Bradley PLC-5 controllers and SLC 500 processors handle discrete I/O, analog signal conditioning, and motion sequencing. The 1784-PKTS card, installed in the engineering workstation or SCADA server, establishes a direct DH+ network link to these controllers — enabling RSLinx Classic to serve as the communication driver layer for all upstream software.

From the SCADA layer, platforms such as FactoryTalk View SE and Wonderware InTouch poll real-time process variables — including conveyor speeds, temperature setpoints, pressure readings, and alarm states — directly through the DH+ link maintained by the 1784-PKTS. This eliminates the need for intermediate OPC bridges in legacy environments, reducing latency and improving data fidelity across the supervisory network.

For remote I/O expansion, the 1784-PKTS works in conjunction with Allen-Bradley 1771 I/O chassis and 1746 SLC I/O modules, allowing distributed field signals to be aggregated at the PLC level and then forwarded upstream via the DH+ backbone. In multi-drop network topologies, the gateway supports simultaneous communication with multiple PLC-5 nodes, enabling plant-wide data collection from a single workstation interface.

At the drive and motion layer, Allen-Bradley PowerFlex variable frequency drives connected through DH-485 segments can be bridged into the DH+ network via the 1747-AIC link coupler, with the 1784-PKTS providing the final PC-side termination for RSLogix 500 programming and drive parameter monitoring. Similarly, PanelView HMI terminals communicating over DH+ receive tag data routed through the 1784-PKTS, ensuring operator displays reflect live process conditions without polling delays.

For edge connectivity and data historians, the 1784-PKTS integrates with OSIsoft PI and similar industrial data platforms through RSLinx OPC DA/DDE interfaces, enabling long-term trend logging, KPI dashboards, and predictive maintenance analytics. In facilities transitioning toward IIoT architectures, the 1784-PKTS continues to serve as the reliable DH+ gateway while edge gateways such as the Moxa MGate or Kepware KEPServerEX handle protocol translation to MQTT or REST APIs for cloud-layer connectivity.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where PLC-5 systems running DH+ cannot natively communicate with newer EtherNet/IP-based controllers or modern MES platforms. The Allen-Bradley 1784-PKTS directly addresses this by providing a stable, proven DH+ interface that allows engineering teams to maintain full programming, monitoring, and diagnostic access to legacy PLC-5 and SLC 500 assets without requiring costly controller replacements.

Data silos are eliminated when the 1784-PKTS enables RSLinx Classic to expose DH+ node data as OPC tags, making process variables available to any OPC-compliant SCADA, historian, or reporting tool on the plant network. This single integration point transforms isolated PLC islands into fully visible, data-sharing nodes within the broader automation architecture.

Remote diagnostics become practical with the 1784-PKTS in place. Maintenance engineers can remotely connect to PLC-5 programs via RSLogix 5 over a VPN-secured workstation, review ladder logic, force I/O states for troubleshooting, and upload/download program files — all without requiring physical presence at the machine. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies.

Production line transparency is achieved as SCADA systems gain continuous visibility into DH+ network nodes, enabling real-time OEE calculations, shift production reports, and alarm frequency analysis. System expansion is equally straightforward — additional PLC-5 or SLC 500 nodes can be added to the DH+ network and immediately recognized by the 1784-PKTS without hardware reconfiguration, supporting phased capacity growth without network downtime.

Every 1784-PKTS unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying DH+ communication establishment, node addressing, and driver compatibility with RSLinx Classic before dispatch. Units are covered by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid fulfillment for both planned projects and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: What communication latency can be expected on a DH+ network using the 1784-PKTS?
DH+ is a deterministic token-passing network operating at up to 57.6 Kbps. In typical configurations with 4–8 nodes, polling cycle times range from 10–50 ms depending on message size and node count. The 1784-PKTS introduces no additional software latency beyond the RSLinx driver overhead, which is generally under 5 ms on a modern workstation.

Q2: Is the 1784-PKTS compatible with both PLC-5 and SLC 500 controllers on the same DH+ network?
Yes. The 1784-PKTS supports multi-node DH+ networks where PLC-5 and SLC 500 controllers coexist. RSLinx Classic manages node addressing and driver routing, allowing RSLogix 5 and RSLogix 500 to communicate simultaneously with their respective controller types through a single 1784-PKTS interface card.

Q3: How does the 1784-PKTS support network stability in 24/7 industrial operations?
The 1784-PKTS is designed for continuous industrial duty. The DH+ token-passing protocol provides inherent collision avoidance and deterministic access, preventing network congestion under high-load conditions. RSLinx Classic includes automatic reconnection logic, so transient communication interruptions — such as controller power cycles — are recovered without manual intervention.

Q4: What does the warranty terms confirmed during quotation cover, and what is the typical lead time for availability confirmed by RFQ units?
The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing of the 1784-PKTS, with standard orders dispatched within 1–3 business days. Expedited shipping is available for urgent replacement requirements. Pre-shipment testing is performed on every unit to verify DH+ functionality prior to dispatch.
