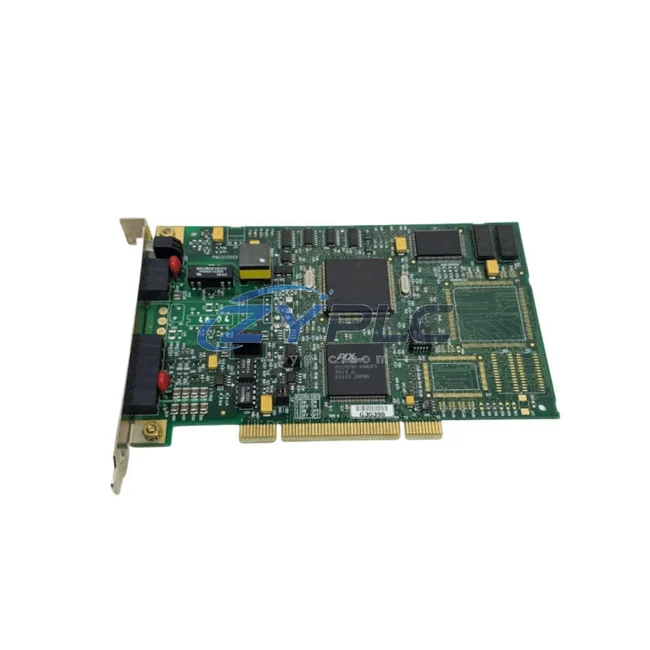

Allen-Bradley 1784-PKTX/B Industrial Network Interface for Series B Systems

Allen-Bradley 1784-PKTX/B Industrial Network Interface for Series B Systems: Bridging the Industrial Data Link

The Allen-Bradley 1784-PKTX/B is a high-performance PCI ControlNet interface card engineered for seamless integration within Rockwell Automation’s industrial network architecture. Designed for Series B compatibility, this communication interface card serves as the critical data bridge between host PCs, SCADA workstations, and the ControlNet fieldbus layer — enabling deterministic, high-speed data exchange across complex automation environments. Whether deployed in automotive assembly lines, oil and gas processing facilities, water treatment plants, or discrete manufacturing cells, the 1784-PKTX/B delivers the network reliability and protocol fidelity that modern smart factories demand.

In today’s industrial landscape, data isolation between field devices and supervisory systems remains one of the most persistent challenges for automation engineers. The 1784-PKTX/B directly addresses this by providing a robust PCI-based ControlNet connection that integrates natively with Rockwell’s RSLinx Classic and RSNetWorx for ControlNet software platforms, enabling engineers to configure, monitor, and diagnose network nodes from a centralized workstation without interrupting production cycles.

Compatibility & Integration Notes

Connected Automation Data Flow

The 1784-PKTX/B sits at the heart of a layered industrial communication architecture. At the field level, Allen-Bradley 1756-CNB ControlNet Bridge modules installed in ControlLogix chassis aggregate I/O data from distributed 1794-AENT FLEX I/O adapter nodes and pass it upstream via the ControlNet trunk cable. The 1784-PKTX/B, installed in the engineering workstation’s PCI slot, receives this scheduled and unscheduled data traffic and presents it to RSLinx Classic as a virtual backplane connection — giving operators full visibility into every tag, every drive status, and every sensor reading on the network.

In a typical smart factory deployment, Allen-Bradley PowerFlex 755 variable frequency drives report speed feedback, torque limits, and fault codes through ControlNet-connected 20-750-CNETC ControlNet communication cards. This drive data flows through the ControlNet segment, passes through the 1784-PKTX/B interface, and is consumed by FactoryTalk View SE SCADA servers for real-time trend visualization and alarm management. Simultaneously, PanelView Plus 7 HMI terminals on the same ControlNet segment display operator dashboards sourced from the same data stream — ensuring that floor-level operators and control room engineers share a single, consistent view of plant status.

For remote I/O applications, 1734-AENT POINT I/O EtherNet/IP adapter modules bridge between the Ethernet backbone and field instruments — including Allen-Bradley 871TM inductive proximity sensors and thermocouple input modules — feeding process variables into the ControlLogix controller. The 1784-PKTX/B then provides the programming terminal with direct access to controller tags, enabling online edits, force operations, and live diagnostics without requiring a separate Ethernet connection to the controller. This architecture is further extended by Stratix 5700 managed industrial Ethernet switches, which segment the plant network and ensure Quality of Service (QoS) prioritization for time-critical ControlNet-bridged data packets reaching the SCADA layer.

In multi-site or geographically distributed facilities, Allen-Bradley 1783-ETAP EtherNet/IP taps and edge gateway devices aggregate data from multiple ControlNet segments and forward it to cloud-based MES or ERP platforms, completing the data chain from sensor to enterprise system — with the 1784-PKTX/B serving as the indispensable local access point for network commissioning and ongoing maintenance.

Solving Data Isolation in Industrial Sites

Legacy industrial sites frequently suffer from protocol fragmentation: ControlNet devices cannot communicate directly with Modbus RTU instruments, PROFIBUS sensors, or EtherNet/IP controllers without dedicated gateway hardware. The 1784-PKTX/B resolves the first layer of this problem by providing a reliable, high-bandwidth ControlNet access point that integrates with RSNetWorx for ControlNet to schedule network traffic, eliminate bandwidth contention, and guarantee deterministic data delivery — a prerequisite for closed-loop control applications where communication jitter directly impacts product quality.

Data silos between the OT (Operational Technology) and IT layers are another common pain point. By connecting the 1784-PKTX/B to a FactoryTalk Historian server, engineers can automatically archive controller tag data at configurable scan rates, making historical process data available to business intelligence tools without manual data extraction. This transparency enables production managers to identify bottlenecks, track OEE (Overall Equipment Effectiveness), and respond to quality deviations in near real-time.

Remote monitoring and diagnostics are equally critical in modern manufacturing. With the 1784-PKTX/B installed and RSLinx Classic configured for remote access, maintenance engineers can connect via VPN to diagnose ControlNet node faults, update controller programs, and verify I/O status from off-site locations — reducing mean time to repair (MTTR) and minimizing unplanned downtime. System expansion is straightforward: additional ControlNet nodes can be added to the trunk without disrupting existing scheduled connections, provided the network is re-scheduled using RSNetWorx after each topology change.

Every 1784-PKTX/B unit supplied by ZYPLC undergoes pre-shipment functional testing to verify ControlNet communication integrity, PCI bus recognition, and firmware version compatibility. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and communication failures, with availability confirmed by RFQ availability ensuring rapid dispatch to minimize project delays.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed of the 1784-PKTX/B on a ControlNet network?
The 1784-PKTX/B operates at the ControlNet standard data rate of 5 Mbps. This deterministic bandwidth is shared across all scheduled and unscheduled connections on the network segment, with RSNetWorx for ControlNet used to allocate bandwidth and define the Network Update Time (NUT) for time-critical I/O connections.

Q2: Is the 1784-PKTX/B compatible with both ControlLogix and PLC-5 ControlNet systems?
Yes. The 1784-PKTX/B supports ControlNet communication with a wide range of Rockwell Automation controllers, including ControlLogix (1756 series), PLC-5C (ControlNet-enabled), and SLC 500 systems equipped with ControlNet scanner modules. Protocol compatibility is managed through RSLinx Classic drivers, which abstract the hardware interface from the application layer.

Q3: How does the 1784-PKTX/B ensure network stability in high-noise industrial environments?
ControlNet’s coaxial cable medium provides inherent noise immunity compared to unshielded twisted-pair Ethernet. The 1784-PKTX/B’s Series B hardware revision incorporates improved EMI shielding on the PCI card edge and enhanced driver firmware for more robust error recovery. For fiber-optic ControlNet segments, repeaters such as the 1786-RPFRL maintain signal integrity over long distances without introducing communication latency.

Q4: What warranty and testing does ZYPLC provide with the 1784-PKTX/B?
All 1784-PKTX/B units are tested prior to shipment for ControlNet communication functionality and PCI bus compatibility. ZYPLC provides a warranty terms confirmed during quotation against manufacturing defects. Availability is confirmed via RFQ for shipment arranged after confirmation globally. For technical support or procurement inquiries, contact our team directly.
