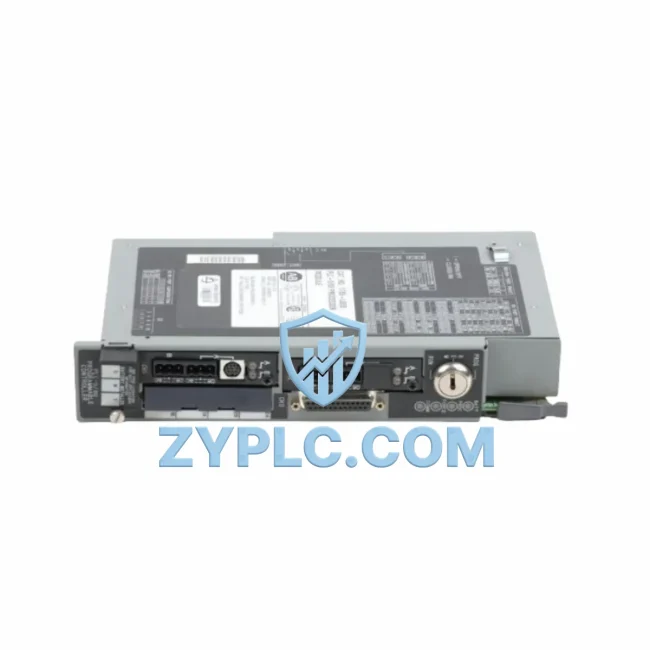

Allen-Bradley 1785-L20C15/E Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1785-L20C15/E: Industrial Data Link for PLC-5 Smart Factory Networks

The Allen-Bradley 1785-L20C15/E is a high-performance Ethernet-enabled PLC-5/20C programmable controller engineered for demanding industrial network environments. Designed by Rockwell Automation, this controller serves as a critical data link between field-level devices and upper-layer supervisory systems, enabling seamless protocol conversion, real-time data acquisition, and deterministic network communication across complex automation architectures. Whether deployed in discrete manufacturing, process control, or hybrid smart factory environments, the 1785-L20C15/E delivers the connectivity backbone that modern industrial operations depend on.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1785-L20C15/E sits at the heart of the control network, orchestrating data flow between field instruments and enterprise systems. At the field level, distributed sensors and actuators — including pressure transmitters, flow meters, and proximity switches — feed analog and digital signals into remote I/O racks such as the 1771-ASB Remote I/O Adapter, which communicates back to the 1785-L20C15/E over the Remote I/O network at up to 230.4 Kbps. This deterministic link ensures that process variables are captured with millisecond-level accuracy and delivered to the controller’s scan cycle without data loss.

For drive integration, the 1785-L20C15/E connects to PowerFlex 700 variable frequency drives via DeviceNet or through a 1203-GU6 Universal Gateway, enabling closed-loop speed and torque control with real-time feedback. Motor status, fault codes, and energy consumption data are continuously polled and made available to the SCADA layer. Similarly, the controller interfaces with 1756-DHRIO communication modules in ControlLogix chassis, bridging legacy DH+ networks to modern EtherNet/IP infrastructure — a critical capability in brownfield modernization projects where older PLC-5 and SLC 500 systems must coexist with newer Logix platforms.

At the supervisory level, the Ethernet port on the 1785-L20C15/E connects directly to the plant network, where FactoryTalk View SE SCADA/HMI servers poll the controller using EtherNet/IP explicit messaging. Operators at 2711P-T10C4D8 PanelView Plus 6 terminals can monitor real-time process data, acknowledge alarms, and issue setpoint changes — all routed through the 1785-L20C15/E’s communication stack. For network infrastructure, managed industrial switches such as the 1783-US8T Stratix 2000 provide the Layer 2 switching fabric that connects the controller to HMI stations, historian servers, and remote engineering workstations.

In multi-controller architectures, the 1785-L20C15/E exchanges peer-to-peer data with other PLC-5 processors via DH+ using MSG instructions, coordinating production sequences across multiple zones. It also supports integration with 1756-EN2T EtherNet/IP communication modules in ControlLogix systems, enabling cross-platform data sharing for unified production reporting. Edge gateway devices such as the 1783-ETAP EtherNet/IP Tap provide passive network monitoring and diagnostics without interrupting live communications, supporting proactive maintenance strategies. Analog I/O modules like the 1771-IFE Analog Input Module extend the controller’s sensing capability to temperature, pressure, and flow signals, completing the data acquisition chain from sensor to cloud.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and enterprise systems operate in disconnected silos, preventing real-time visibility and coordinated control. The 1785-L20C15/E directly addresses this problem through its multi-protocol communication architecture. Its simultaneous support for Ethernet/IP, DH+, and Remote I/O allows it to act as a protocol gateway, translating between legacy and modern network standards without requiring a complete system overhaul.

For facilities struggling with remote monitoring limitations, the Ethernet port enables secure, standards-based connectivity to SCADA platforms and MES systems over the plant LAN or WAN. Production data — including cycle counts, alarm histories, and energy metrics — can be continuously streamed to historian databases, eliminating the manual data collection processes that introduce latency and errors. When production line transparency is a priority, the 1785-L20C15/E’s deterministic scan cycle ensures that every I/O state change is captured and reported in real time, giving operations teams the visibility they need to optimize throughput and respond to faults before they escalate.

System expansion is equally straightforward. The controller’s Remote I/O scanner supports up to 32 remote I/O racks, allowing facilities to add capacity incrementally as production demands grow. Combined with the ability to bridge to ControlNet and EtherNet/IP networks via gateway modules, the 1785-L20C15/E provides a scalable connectivity platform that protects existing automation investments while enabling a phased migration to Industry 4.0 architectures. Every unit supplied by ZYPLC undergoes functional testing and communication verification prior to shipment, ensuring that the controller arrives ready for integration with zero commissioning surprises.

Industrial Connectivity FAQ

Q1: What communication protocols does the 1785-L20C15/E support, and is it compatible with modern EtherNet/IP networks?
The 1785-L20C15/E natively supports EtherNet/IP, Data Highway Plus (DH+), and Allen-Bradley Remote I/O. It is fully compatible with EtherNet/IP networks and can exchange data with ControlLogix, CompactLogix, and other EtherNet/IP-enabled devices using explicit and implicit messaging. For protocols not natively supported (such as Modbus TCP or PROFIBUS), a protocol gateway module can be used to bridge the networks.

Q2: How does the controller perform in terms of communication latency and network stability?
The 1785-L20C15/E is designed for deterministic, real-time communication. Its Remote I/O scanner operates at up to 230.4 Kbps with fixed, predictable scan times, while the Ethernet port supports full-duplex 10/100 Mbps communication. In properly configured networks with managed switches such as the 1783-US8T Stratix 2000, end-to-end latency for I/O updates is typically under 10 milliseconds, meeting the requirements of most discrete and process control applications.

Q3: Can the 1785-L20C15/E be integrated with existing SCADA and HMI systems without replacing the entire control architecture?
Yes. The controller’s Ethernet port allows direct integration with SCADA platforms including FactoryTalk View SE, Wonderware, and Ignition using standard EtherNet/IP or OPC-DA/UA drivers. HMI terminals such as the PanelView Plus 6 series can connect over Ethernet without any additional communication modules. This makes the 1785-L20C15/E an ideal choice for brownfield modernization projects where preserving existing field wiring and I/O infrastructure is a priority.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the 1785-L20C15/E?
Every 1785-L20C15/E supplied by ZYPLC is subject to a pre-shipment functional test that verifies communication port operation, memory integrity, and I/O scanning capability. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified defect, ZYPLC provides replacement or repair support with expedited processing. Stock is maintained in our warehouse for immediate dispatch via DHL or FedEx to global destinations.

—
