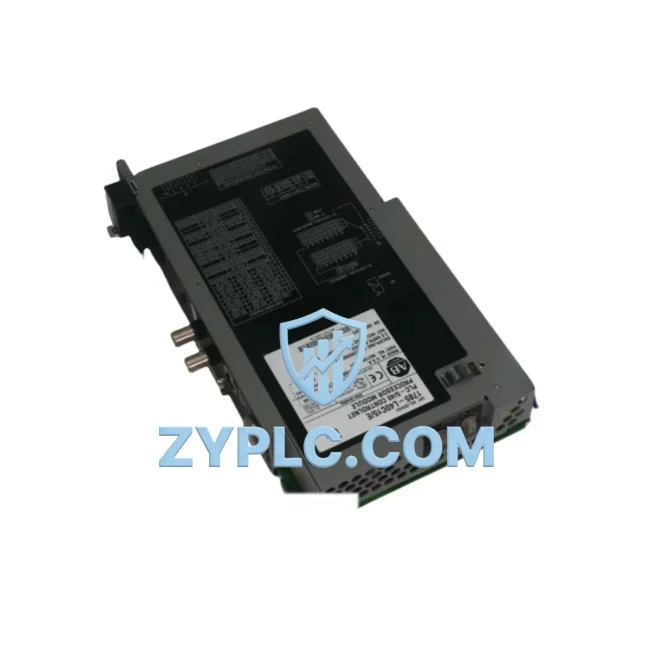

Allen-Bradley 1785-L40C15/F Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1785-L40C15/F: Industrial Data Link for Smart Factory PLC-5 Systems

The Allen-Bradley 1785-L40C15/F is a high-performance PLC-5/40 programmable logic controller engineered for demanding industrial network environments. Designed to serve as the central intelligence node in complex automation architectures, this controller bridges field-level devices and upper-level supervisory systems with precision, reliability, and multi-protocol communication capability. Whether deployed in discrete manufacturing, process control, or hybrid automation lines, the 1785-L40C15/F delivers the data throughput and network stability that modern smart factories demand.

At its core, the 1785-L40C15/F supports EtherNet/IP, Data Highway Plus (DH+), and ControlNet — three of the most widely adopted industrial communication protocols in Rockwell Automation ecosystems. This multi-protocol architecture enables seamless data exchange across every layer of the automation pyramid: from sensors and actuators on the plant floor, through distributed I/O racks and drive systems, up to HMI panels, SCADA servers, and MES platforms. The result is a unified, transparent data flow that eliminates communication bottlenecks and supports real-time decision-making across the entire production network.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 1785-L40C15/F sits at the heart of a layered communication architecture. Signal acquisition begins at the field level, where sensors — including proximity switches, pressure transmitters, and temperature probes — feed data into remote I/O adapter modules such as the 1771-ASB Remote I/O Adapter. These adapters communicate with the PLC-5/40 controller over the Remote I/O network, delivering real-time process values with deterministic scan cycle timing.

For drive integration, the 1785-L40C15/F connects to PowerFlex 700 and PowerFlex 40 variable frequency drives via the DH+ network or through DeviceNet gateway modules, enabling closed-loop speed and torque control with full diagnostic feedback. Drive fault codes, running status, and energy consumption data are all accessible to the controller, supporting predictive maintenance workflows and reducing unplanned downtime.

On the supervisory side, the controller’s EtherNet/IP port connects directly to FactoryTalk View SE SCADA servers and PanelView Plus HMI terminals, enabling operators to monitor production KPIs, acknowledge alarms, and adjust setpoints in real time. The 1756-ENBT EtherNet/IP Bridge module can be used to extend this connectivity into ControlLogix chassis environments, allowing legacy PLC-5 systems to coexist and interoperate with modern Logix5000 platforms without requiring a full system migration.

For facilities requiring protocol conversion between DH+ segments and Ethernet networks, the 1761-NET-ENI Serial-to-Ethernet Interface or the DF1-to-EtherNet/IP gateway provides transparent bridging, ensuring that upstream MES and ERP systems can access PLC-5 data tags without modification to the control program. This gateway architecture is particularly valuable in brownfield modernization projects where preserving existing PLC-5 logic while upgrading network infrastructure is a priority.

Edge computing integration is also supported through third-party edge gateways compatible with EtherNet/IP, enabling OPC-UA data publishing to cloud-based analytics platforms. This positions the 1785-L40C15/F as a capable node in IIoT-enabled factory architectures, where real-time data from the PLC-5 can feed machine learning models for quality prediction, energy optimization, and throughput analysis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where critical process information is trapped within a single controller, network segment, or protocol domain, invisible to the broader production system. The Allen-Bradley 1785-L40C15/F directly addresses this challenge through its multi-protocol communication architecture and broad network compatibility.

In facilities where legacy DH+ networks coexist with modern EtherNet/IP infrastructure, the 1785-L40C15/F acts as a natural integration point. Its native DH+ port allows it to communicate with older SLC 500 controllers and MicroLogix systems on the same network segment, while its EtherNet/IP interface connects it to contemporary ControlLogix platforms and SCADA systems. This eliminates the need for costly protocol converters or parallel wiring runs, reducing both capital expenditure and network complexity.

For remote monitoring and diagnostics, the controller’s Ethernet connectivity enables RSLinx Classic and RSLinx Enterprise to establish remote connections from engineering workstations, allowing technicians to go online with the PLC-5 program, monitor data table values, and perform fault diagnostics without physical access to the control panel. This capability is critical for multi-site operations where on-site engineering resources are limited.

Production line transparency is achieved through the controller’s ability to publish real-time data to FactoryTalk Historian, where process variables, alarm events, and production counts are time-stamped and stored for trend analysis and regulatory compliance reporting. This data visibility supports continuous improvement initiatives and provides the audit trail required in regulated industries such as food and beverage, pharmaceuticals, and automotive manufacturing.

System expansion is straightforward with the 1785-L40C15/F. Additional 1771 I/O chassis can be added to the Remote I/O network to accommodate new production equipment, and ControlNet connections can be established to high-speed I/O modules and motion control systems without disrupting existing network traffic. This scalability protects the capital investment in the PLC-5 platform while allowing the automation system to grow with production demands.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including communication port verification, memory integrity checks, and I/O scan cycle validation. In-stock inventory ensures rapid order fulfillment, and all units are covered by a 12-month warranty, providing confidence in both product quality and supply chain reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1785-L40C15/F support, and are they compatible with modern SCADA systems?
The 1785-L40C15/F supports EtherNet/IP, Data Highway Plus (DH+), and ControlNet. EtherNet/IP is fully compatible with FactoryTalk View SE, Ignition SCADA, and other OPC-DA/UA-capable supervisory platforms, enabling seamless integration with both Rockwell-native and third-party SCADA environments.

Q2: What is the typical communication latency on the DH+ network with this controller?
DH+ network latency with the 1785-L40C15/F is typically in the range of 5–50 milliseconds depending on network token rotation time and the number of nodes on the segment. For time-critical applications, ControlNet provides deterministic communication with configurable Requested Packet Intervals (RPI) as low as 1 millisecond.

Q3: Can the 1785-L40C15/F be integrated into a ControlLogix system without replacing the existing PLC-5 program?
Yes. Using the 1756-DHRIO ControlLogix DH+/Remote I/O Communication Module, the existing PLC-5 program can remain intact while the ControlLogix chassis handles higher-level network communication and data routing. This approach is widely used in phased migration projects to minimize production disruption.

Q4: Does ZYPLC provide testing documentation and warranty coverage for the 1785-L40C15/F?
Yes. All units are functionally tested before shipment, and ZYPLC provides a 12-month warranty covering hardware defects and communication failures. In-stock units are available for immediate dispatch, and our technical team can provide pre-sale verification support to confirm compatibility with your existing network architecture.
