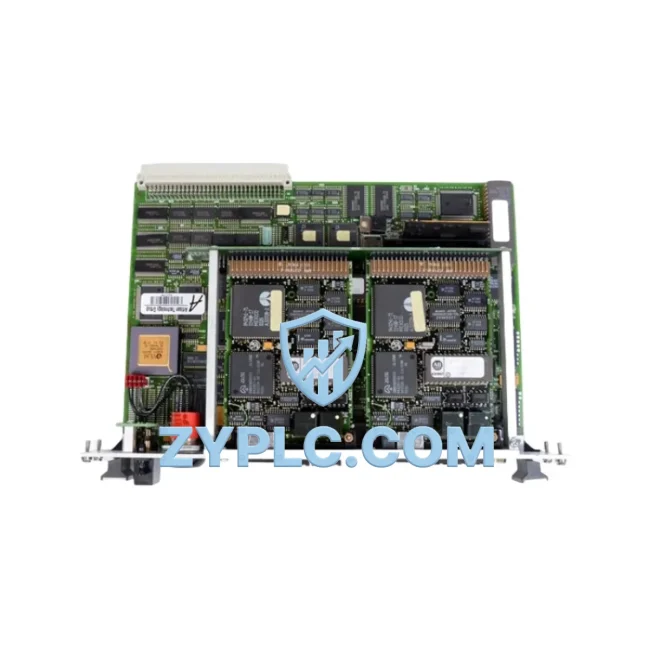

Allen-Bradley 1785-V40B Industrial Network Interface for PLC-5 Systems

Allen-Bradley 1785-V40B: Industrial Data Link for Smart Factory Connectivity

The Allen-Bradley 1785-V40B (PLC-5/40V) is a proven industrial network interface controller engineered to anchor the data communication backbone of demanding manufacturing environments. As a flagship node in Rockwell Automation’s PLC-5 Series, the 1785-V40B delivers deterministic, multi-protocol communication across Data Highway Plus (DH+), DF1 Full/Half Duplex serial, and Remote I/O (RIO) networks — forming the critical data link between field-level devices, distributed control systems, and supervisory platforms in smart factory architectures.

In converged OT/IT environments where production transparency and real-time decision-making are operational imperatives, the 1785-V40B serves as the central network node that aggregates field signals, executes control logic, and propagates structured process data upward to SCADA, MES, and enterprise analytics layers. Its architecture supports high-speed ladder logic execution while simultaneously managing multi-drop network communications, making it the connectivity cornerstone for process automation, discrete manufacturing, and critical infrastructure applications.

Network Communication Table

Connected Automation Data Flow

The 1785-V40B operates at the heart of a layered industrial communication architecture, managing data flow across every tier of the automation hierarchy. At the field level, discrete and analog signals are collected from sensors, proximity switches, pressure transmitters, and flow meters wired into 1771-series PLC-5 I/O chassis modules. These signals are scanned at high speed and processed by the 1785-V40B’s ladder logic engine, which executes control decisions in real time and propagates status data across the DH+ network to peer controllers and operator interfaces.

On the operator side, PanelView Plus 600 and PanelView 550 HMI terminals connect directly to the DH+ channel of the 1785-V40B, delivering live process visualization, alarm acknowledgment, and parameter adjustment without requiring a dedicated communication processor. For facilities running FactoryTalk View SE or RSView32 SCADA platforms, the 1785-V40B’s DH+ port serves as the primary data source, delivering tag-level process values, event logs, and alarm states to the supervisory layer at configurable polling intervals — enabling real-time monitoring and remote diagnostics from a centralized control room.

In distributed architectures, the 1785-V40B functions as a Remote I/O scanner, managing communication with 1771-ASB remote I/O adapter modules installed in satellite I/O racks across the plant floor. A single controller supervises multiple remote stations — including motor control centers, valve manifolds, and conveyor drive panels — over a single twisted-pair RIO cable run, significantly reducing field wiring costs and improving network determinism. For protocol bridging to modern Ethernet-based systems, the 1785-V40B integrates with the 1761-NET-ENI serial-to-Ethernet adapter, enabling EtherNet/IP connectivity to upstream MES databases, OPC-DA servers, and edge computing gateways.

The 1785-CHBM ControlNet bridge module extends the controller’s reach into ControlNet segments, allowing co-existence with newer 1756 ControlLogix systems during phased migration projects. Variable frequency drives such as the PowerFlex 40 and PowerFlex 700 series integrate via DeviceNet or hardwired I/O, with drive status, speed reference, and fault codes mapped directly into the 1785-V40B’s data table for centralized monitoring. At the network infrastructure level, industrial DH+ repeaters and managed Ethernet switches maintain signal integrity across long cable runs and multi-drop topologies, while the 1785-V40B’s built-in DF1 port supports point-to-point communication with barcode readers, weigh scales, and third-party serial devices — enabling data collection from non-networked field instruments without additional gateway hardware.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in mature manufacturing facilities is data isolation — critical process information trapped within individual controllers, unable to reach the supervisory systems that need it for production optimization, predictive maintenance, and regulatory compliance. The Allen-Bradley 1785-V40B directly addresses this challenge through its multi-protocol communication architecture and flexible network topology support.

In plants where multiple generations of control equipment coexist, protocol incompatibility creates invisible barriers between systems. The 1785-V40B’s native DH+ and DF1 support enables peer-to-peer communication with other PLC-5 controllers, SLC 500 processors, and MicroLogix systems across a unified Data Highway Plus network — eliminating the need for dedicated protocol converters between Rockwell platforms. For cross-vendor integration, the DF1 serial port supports third-party SCADA drivers and OPC server connections, enabling data extraction into historian databases and cloud analytics platforms without middleware complexity.

Remote monitoring and diagnostics are equally critical in large facilities where physical access to control panels is time-consuming or hazardous. The 1785-V40B supports remote programming and online monitoring via RSLogix 5 software over the DH+ network, allowing engineers to perform live edits, force I/O states, and capture data table snapshots from a central engineering workstation without interrupting production. Alarm and fault data route to SCADA alarm management systems in real time, enabling rapid response to process deviations and reducing mean time to repair (MTTR).

For production line transparency, the 1785-V40B’s message instruction (MSG) capability enables unsolicited data transfer between controllers, pushing production counts, cycle times, and quality metrics to upstream MES systems without requiring polling from the supervisory layer. This event-driven data model reduces network traffic, improves data freshness, and supports the real-time production visibility required for lean manufacturing and OEE tracking. As facilities expand, additional remote I/O racks and DH+ nodes can be added to the network without modifying the core control program — providing a scalable architecture that grows with production requirements and future smart factory initiatives.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1785-V40B support, and is it compatible with modern EtherNet/IP networks?
The 1785-V40B natively supports Data Highway Plus (DH+), DF1 Full/Half Duplex serial, and Remote I/O (RIO) protocols. While it does not include a built-in EtherNet/IP port, Ethernet connectivity is achieved through the 1761-NET-ENI serial-to-Ethernet adapter or via ControlNet bridging using the 1785-CHBM module, making it fully compatible with modern EtherNet/IP infrastructure and OPC-based SCADA systems.

Q2: How does the 1785-V40B perform in terms of network latency and real-time data transmission?
The 1785-V40B delivers deterministic communication on DH+ networks at speeds up to 57.6 Kbps, with typical message round-trip times in the low-millisecond range for peer-to-peer MSG instructions. The controller’s priority-based operating system manages I/O scan and communication tasks concurrently, ensuring consistent response times even under high network load — critical for time-sensitive process control and alarm management applications.

Q3: Can the 1785-V40B be integrated into an existing ControlLogix or CompactLogix system during a migration project?
Yes. The 1785-V40B coexists with 1756 ControlLogix and 1769 CompactLogix systems through DH+ gateway bridges and EtherNet/IP adapters. Rockwell Automation’s phased migration strategy supports parallel operation of PLC-5 and Logix platforms, allowing facilities to migrate control functions incrementally while maintaining production continuity. RSLinx Classic and RSLinx Enterprise provide unified device browsing across both platforms during the transition period.

Q4: What warranty coverage and pre-shipment testing does ZYPLC provide for the 1785-V40B?
Every Allen-Bradley 1785-V40B unit supplied by ZYPLC is backed by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing including power-on self-test (POST) confirmation, communication port integrity checks, and I/O channel validation. Units ship via DHL or FedEx with full export documentation, and our technical team provides post-sale support for installation, network configuration, and system integration queries.
