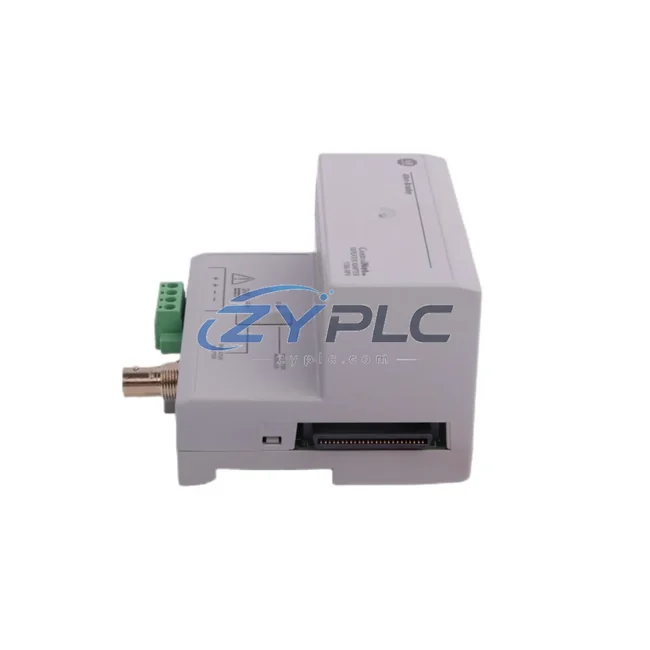

Allen-Bradley 1786-RPA ControlNet Repeater for 1786

Allen-Bradley 1786-RPA ControlNet Repeater for 1786: Compatibility and Replacement Notes

In modern industrial automation, the integrity of a control network is not determined by any single component in isolation — it is defined by how every layer of the architecture communicates, synchronizes, and recovers under load. The Allen-Bradley 1786-RPA ControlNet Repeater is a purpose-engineered network infrastructure component designed to extend, segment, and reinforce ControlNet topologies within Rockwell Automation’s 1786 system architecture. As facilities scale their automation footprint across manufacturing cells, process skids, or distributed control cabinets, the 1786-RPA becomes a critical enabler of signal integrity, network reach, and deterministic communication — the foundation upon which reliable control depends.

ControlNet, as a media-redundant, deterministic fieldbus protocol, is widely deployed in applications where time-critical I/O updates and peer-to-peer messaging must coexist without collision or latency variance. The 1786-RPA repeater supports this architecture by regenerating and re-timing ControlNet signals, allowing engineers to extend segment lengths beyond the standard coaxial cable limits and to bridge multiple physical segments into a single logical network. This capability is essential in large-footprint installations such as automotive assembly lines, petrochemical processing units, water treatment facilities, and power generation substations — environments where control cabinets may be separated by hundreds of meters and where signal degradation is a real operational risk.

Product Specification Table

System Compatibility Notes

The 1786-RPA does not operate as a standalone device — it functions as a network backbone component that enables the rest of the control architecture to perform at its designed capacity. In a typical Rockwell Automation ControlNet deployment, the system begins at the controller layer, where a 1756-CN2 or 1756-CN2R ControlNet communication module installed in a 1756 ControlLogix chassis serves as the network master. These controllers manage scheduled and unscheduled bandwidth across the ControlNet trunk, and the 1786-RPA ensures that remote segments receive clean, re-timed signals without degradation.

At the I/O layer, remote 1794 FLEX I/O adapters and 1756 remote I/O chassis connected via 1786-series ControlNet cable assemblies and 1786-TPYR T-taps depend on the repeater to maintain deterministic update rates. When a segment is extended through the 1786-RPA, the I/O modules on the far side of the repeater continue to receive scheduled data within the same NUT (Network Update Time) window as modules on the primary segment — a critical requirement for synchronized motion control and process interlocking.

At the network infrastructure layer, 1786-series ControlNet taps, 1786-RPCD repeater/power conditioners, and termination resistors work in concert with the 1786-RPA to define the physical topology. Engineers designing redundant ControlNet networks often pair the 1786-RPA with 1786-RPFRL fiber repeater modules to bridge copper-to-fiber transitions across electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

At the HMI and SCADA layer, PanelView Plus terminals and FactoryTalk View supervisory stations connected to the ControlNet backbone rely on the network’s determinism to deliver real-time process visualization. Any signal degradation or segment fault upstream of the HMI connection point can result in display latency or communication timeouts — issues that the 1786-RPA directly prevents by maintaining signal quality across extended topologies.

For power infrastructure, the 1786-RPA is typically powered from a 1606-series or equivalent 24VDC DIN rail power supply, often the same supply rail that feeds ControlNet tap assemblies and local I/O marshalling panels. Proper power sequencing and grounding practices, as outlined in Rockwell’s ControlNet Planning and Installation Manual, ensure that the repeater initializes correctly during system startup and remains stable during power cycling events.

Industrial Application Notes

Manufacturing and Assembly: In automotive body-in-white welding lines and powertrain assembly cells, ControlNet is used to synchronize robot controllers, servo drives, and safety PLCs across multiple stations. The 1786-RPA enables engineers to extend the ControlNet trunk from the main control room to remote junction boxes at the end of long conveyor runs, maintaining deterministic I/O updates across the entire line without introducing additional controller nodes.

Power Generation and Utilities: In thermal power plants and hydroelectric facilities, ControlNet networks connect turbine control systems, excitation panels, and protection relays distributed across large generator halls. The 1786-RPA allows a single ControlNet segment to span the physical distance between the control room and the turbine deck, reducing the need for additional gateway devices and simplifying the network architecture.

Petrochemical and Refining: Process control systems in refineries and chemical plants often require ControlNet segments to traverse classified hazardous areas. The 1786-RPA, installed in a purged or pressurized enclosure at the zone boundary, regenerates the ControlNet signal before it enters the safe area, ensuring that the process controller receives accurate, timely data from field instruments and control valves.

Water and Wastewater Treatment: Municipal water treatment facilities use ControlNet to connect pump station PLCs, chemical dosing systems, and SCADA outstations distributed across large treatment campuses. The 1786-RPA extends the ControlNet segment from the central control building to remote pump houses, eliminating the need for fiber media converters in applications where coaxial infrastructure is already in place.

Mining and Metals: In underground mining operations and surface ore processing plants, ControlNet networks must tolerate high levels of electromagnetic interference from large motors, variable frequency drives, and high-current switching equipment. The 1786-RPA’s signal regeneration capability ensures that ControlNet frames arrive at remote I/O nodes with full signal integrity, even in environments where cable runs pass near high-voltage equipment.

Product Compatibility FAQ

Q1: Is the 1786-RPA compatible with both redundant and non-redundant ControlNet topologies?
Yes. The 1786-RPA supports both single-media and dual-media (redundant) ControlNet configurations. In a redundant topology, two 1786-RPA units are deployed in parallel — one on each media channel — ensuring that a cable fault on one channel does not interrupt network communication. This configuration is commonly used in conjunction with 1756-CN2R redundant ControlNet scanner modules in ControlLogix systems where high availability is required.

Q2: How does the 1786-RPA affect the Network Update Time (NUT) and scheduled bandwidth allocation?
The 1786-RPA is transparent to the ControlNet scheduler. It regenerates and re-times the physical signal without modifying the data frame content or introducing additional latency beyond the specified propagation delay. Engineers should account for the repeater’s propagation delay when calculating the maximum NUT for the extended network, but in practice, the impact is negligible for NUT values of 5ms or greater. RSNetWorx for ControlNet should be used to verify the network schedule after adding a repeater to an existing topology.

Q3: What warranty terms are confirmed during quotation, and what support is available for system integration?
Every 1786-RPA supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm signal regeneration performance and power input compliance. Our technical team provides pre-sales architecture consultation to confirm compatibility with your existing 1786 ControlNet infrastructure, and post-sales support is available to assist with installation, commissioning, and troubleshooting. Contact us at +86 19859288691 or plc.sales@zyplc.com for system integration inquiries.
